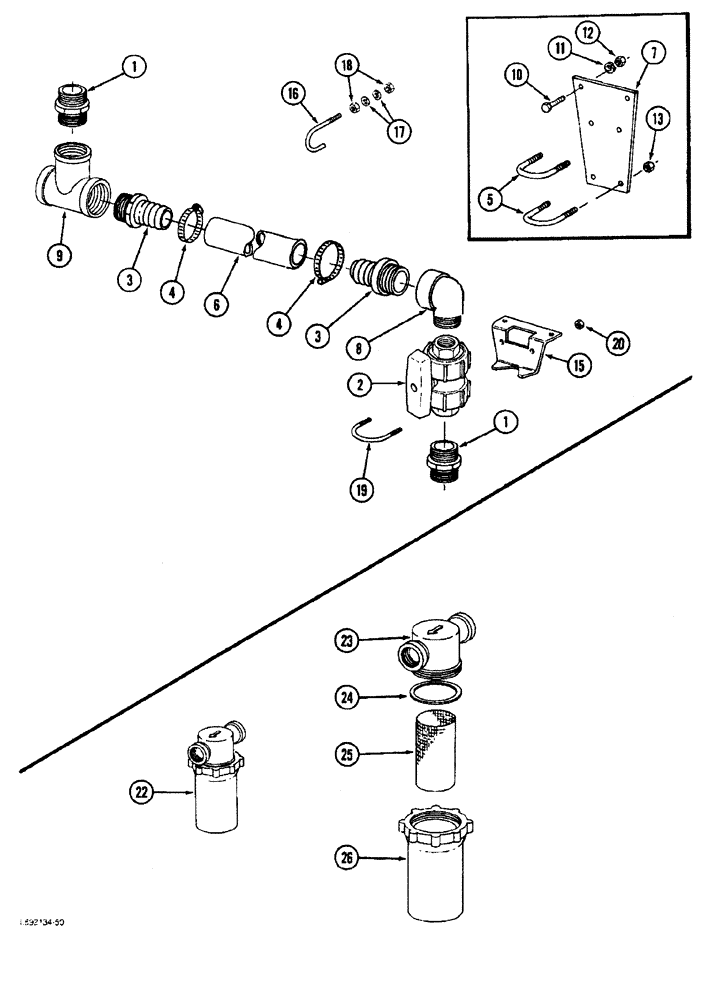

Запчасти Case IH 1822 (9A-132) - QUICK FILL ATTACHMENT, 1822 COTTON PICKER (14) - WATER SYSTEM

1

1264070C1

FITTING

NIPPLE - 1-1/4 x 1-1/4 inch

2шт.

2

1980002C1

VALVE,1-1/4" Single Union Poly Valve

ASSEMBLY - water

1шт.

3

1264072C1

FITTING

- 1-1/4 x 1-1/2 inch

2шт.

4

214-257

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

2шт.

5

1979995C1

U-BOLT,5/16" - 18 x 3 3/4"

- water valve, 51/6 inch NC

2шт.

6

NSS

NOT SOLD SEPARAT

HOSE - water, 63 inch long (Order 87704C1, cut to length) (Used with 1270237C1)

1шт.

6

NSS

NOT SOLD SEPARAT

HOSE - water, 57 inch long (Order 87704C1, Serial Range: cut-length)

1шт.

7

1270237C1

PLATE

- water valve support (If equipped)

1шт.

8

1264068C1

ELBOW

- 90 degree, 1-1/4 x 1-1/4 inch

1шт.

9

1264067C1

FITTING

TEE - connector, 1-1/4 inch

1шт.

10

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

11

492-11038

LOCK WASHER,3/8"

2шт.

12

425-106

NUT,3/8"-16, Cl 5

2шт.

13

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

15

1345167C1

SUPPORT

BRACKET - water valve support

1шт.

16

1345188C1

BOLT,J, 3/8" - 16 x 57mm W x 73mm L

BOLT - J, water hose retaining

1шт.

17

492-11038

LOCK WASHER,3/8"

2шт.

18

425-106

NUT,3/8"-16, Cl 5

2шт.

19

1979995C1

U-BOLT,5/16" - 18 x 3 3/4"

- water valve, 5/16 inch NC

1шт.

20

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

22

87006C92

FILTER

ASSEMBLY - water

1шт.

23

NSS

NOT SOLD SEPARAT

BASE - water filter (Order 87006C92)

1шт.

24

87225C1

GASKET

- line strainer, water filter

1шт.

25

87260C1

FILTER SCREEN

SCREEN - water filter

1шт.

26

NSS

NOT SOLD SEPARAT

BOWL - water filter (Order 87006C92)

1шт.
