Запчасти Case IH 1822 (9A-124) - WATER LINES, 1822 COTTON PICKER P.I.N. JJC0012910 AND AFTER (14) - WATER SYSTEM

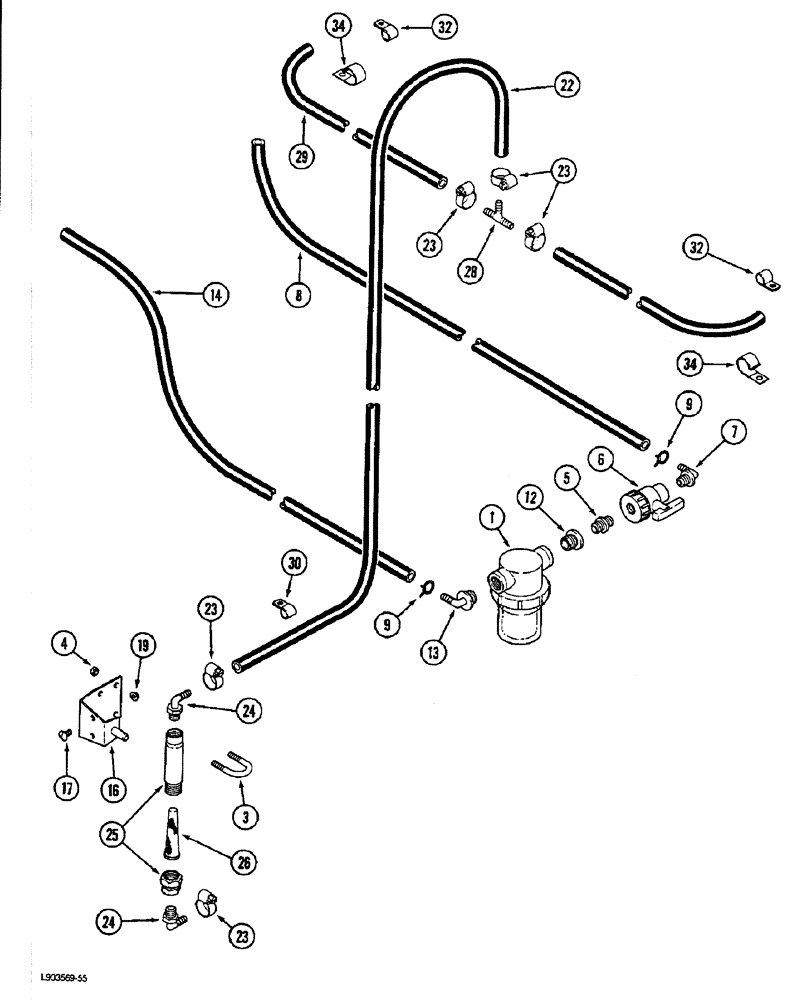

Схема запчастей Case IH 1822 - (9A-124) - WATER LINES, 1822 COTTON PICKER P.I.N. JJC0012910 AND AFTER (14) - WATER SYSTEM
9
23
3
24
23
23
34
32
1
28
8
30
9
16
19
23
13
5
34
26
17
7
14
25
6
32
4
12
22
29
24

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

FILTER ASSEMBLY - water (See page 9A-135)

1шт.

3

1338145C1

U-BOLT,3/8" - 16 x 41.15mm W x 41.30mm L

- bracket retaining

2шт.

4

9411655

LOCK NUT,3/8"-16, GB

NUT - hex lock, 3/8 inch NC

4шт.

5

1345155C1

ADAPTER

NIPPLE - 3/4 x 3/4 inch

1шт.

6

1345067C1

SHUT-OFF VALVE,3/4" Single Union Poly Valve

VALVE ASSEMBLY - shutoff

1шт.

7

1329210C1

ELBOW

- 90 degree, 3/4 thread x 1/2 inch barb

1шт.

8

NSS

NOT SOLD SEPARAT

HOSE - tank to valve, 81 inch (Order 665181R1, Serial Range: cut-length)

1шт.

9

214-1312

HOSE CLAMP,#12, 3/4", Spring

CLAMP - hose, no. 12 type E spring wire

8шт.

12

1345154C1

FITTING

BUSHING - 1 x 3/4 inch

1шт.

13

1345153C1

90 ELBOW

- 1 x 1/2 inch

1шт.

14

NSS

NOT SOLD SEPARAT

HOSE - filter to pump, 37 inch (Order 665181R1, Serial Range: cut-length)

1шт.

16

1345211C1

SUPPORT

BRACKET - filter mounting

1шт.

17

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - slotted truss head, 3/8 x 3/4 inch

2шт.

19

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

2шт.

22

NSS

NOT SOLD SEPARAT

HOSE - filter, 102 inch (Order 1338159C1, Serial Range: cut-length)

1шт.

23

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

- adj. #4, 0.25/0.62 Type F Worm

10шт.

24

1339135C1

ELBOW

FITTING - barb, hose

2шт.

25

1339134C1

FILTER

- water, inline

1шт.

26

1339256C1

FILTER STRAINER

SCREEN - filter

1шт.

28

1339010C1

FITTING

TEE - barb, 3/8 inch

1шт.

29

NSS

NOT SOLD SEPARAT

HOSE - tee to drum, 78 inch (Order 1338159C1, Serial Range: cut-length)

2шт.

30

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

- hose retaining

2шт.

32

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- P, 3/4 inch diameter

4шт.

34

92070C1

CLAMP,1 1/4", Insul, 7/16" Bolt

- insulated retaining

2шт.

Выбрано товаров: 24
