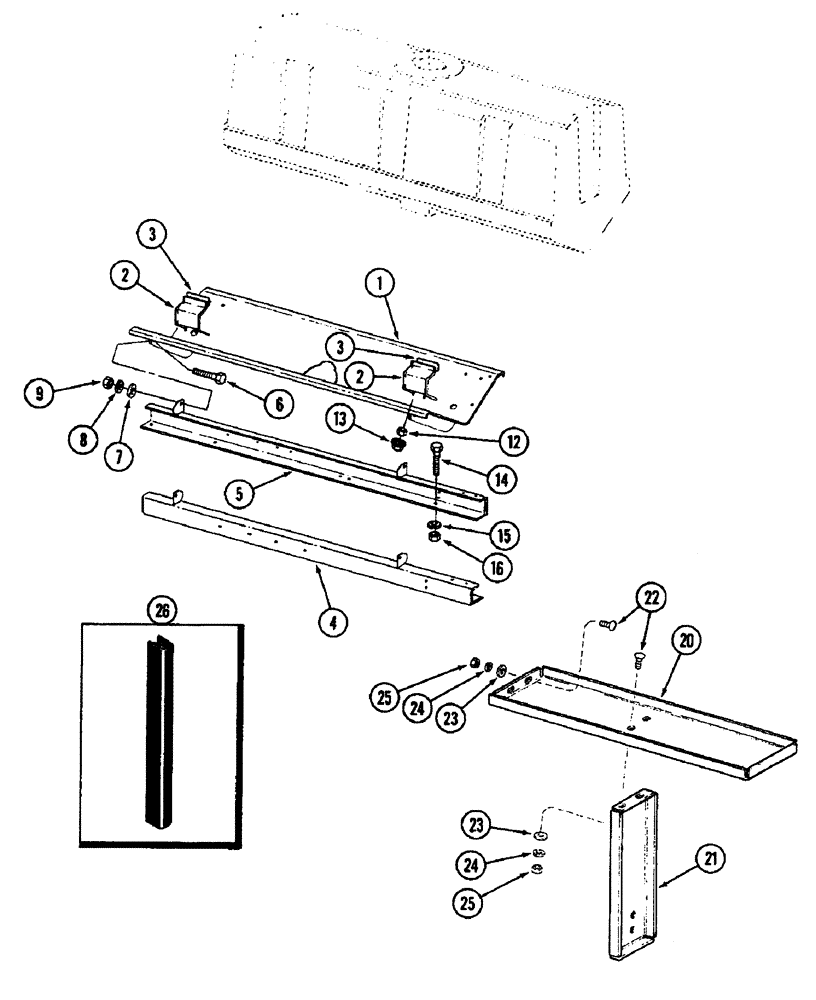

Запчасти Case IH 1822 (9A-118) - WATER TANK SUPPORT, 1822 COTTON PICKER (14) - WATER SYSTEM

1

1339484C1

SUPPORT

SADDLE ASSEMBLY - tank

1шт.

2

1329232C1

SUPPORT

BRACKET - tank retaining (for 130 gal. tank)

4шт.

ref # 2 1329232c1 is for 130 gal tank, 147419c1 is for 110 gal

1шт.

3

1250768C1

STRIP

PAD - clamp

4шт.

4

1278772C3

SUPPORT

ASSEMBLY - water tank, front

1шт.

5

1278773C3

SUPPORT

ASSEMBLY - water tank, rear

1шт.

6

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

7

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

- flat, 13/32 x 13/16 x 3/64 inch

4шт.

8

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

9

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

12

25932R1

JAM NUT,Jam, 3/8"-16, G5

- hex jam, 3/8 inch NC

8шт.

13

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- flange lock, 3/8 inch NC

8шт.

14

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

15

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

16

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

20

1338574C1

SHIELD

- water tank

2шт.

21

1329413C2

SUPPORT

- tank shield

2шт.

22

598803R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5, Full Thd

BOLT - round head square neck, 5/16 x 1 inch

8шт.

23

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch

4шт.

24

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

8шт.

25

120376

NUT,5/16"-18, G5

8шт.

196707C1

SEAL

TRIM - edge, 50 foot roll

1шт.

NSS

NOT SOLD SEPARAT

TRIM - edge, water tank support (Cut 26 inch from bulk stock 196707C1)

1шт.
