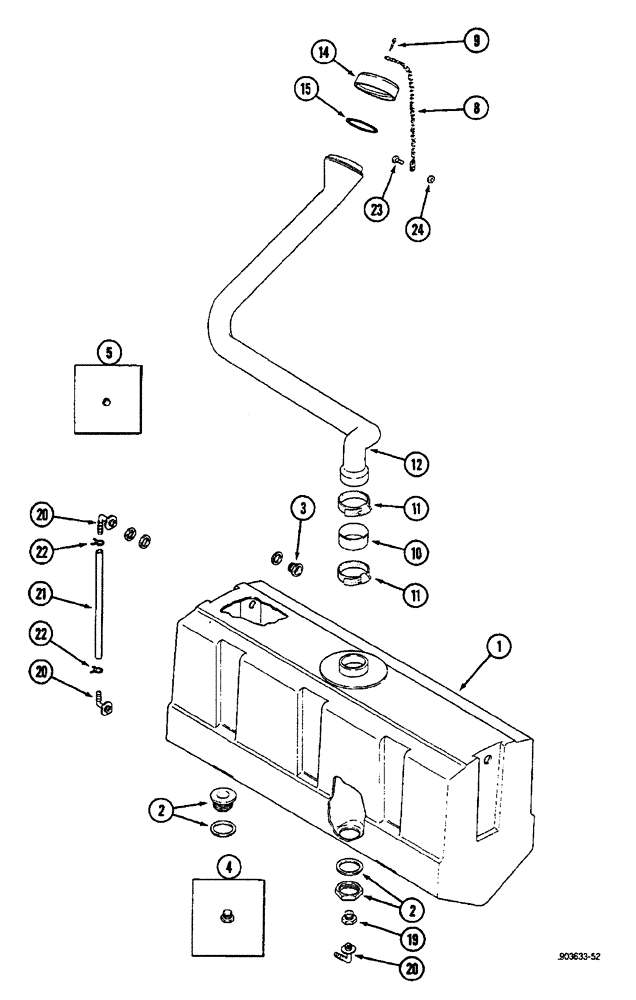

Запчасти Case IH 1822 (9A-115A) - WATER TANK, 1822 COTTON PICKER P.I.N. JJC0012910 AND AFTER (14) - WATER SYSTEM

1

1329203C2

TANK

- water, 130 gallon

1шт.

2

1254377C1

FITTING

- hopper, nylon 1-1/4 inch

2шт.

3

1345186C1

FITTING

- hopper, nylon 3/4 inch

3шт.

4

1254380C2

PLUG,Hex Hd, 1 1/4" NPT, Nylon

- male pipe, 1-1/4 inch

1шт.

5

353-207

PLUG,Sq Drive, 3/4"-14 NPT

- pipe, square head, 3/4 inch NPT

3шт.

8

1345176C1

CHAIN (AG)

CHAIN - water cap

1шт.

9

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

1шт.

10

1345179C1

COUPLING

- spout

1шт.

11

274090R91

HOSE CLAMP,3.75/4.63 Type F Worm

CLAMP - type F hose

2шт.

12

1345149C1

TUBE,80 mm OD, 731.6, 155.7 mm Length

- water fill

1шт.

14

1345173C1

PLUG

CAP ASSEMBLY

1шт.

15

1345175C1

GASKET,115.1mm ID x 131.1mm OD x 3.8mm Thk

- water cap

1шт.

19

1329209C1

BUSHING

- reducer, 1-1/4 to 3/4 inch

1шт.

20

1329210C1

ELBOW

- 90 degree, 3/4 thread x 1/2 inch barb

3шт.

21

NSS

NOT SOLD SEPARAT

HOSE - sight gauge, 21 inch (Order 665181R1, Serial Range: cut-length)

1шт.

22

214-1312

HOSE CLAMP,#12, 3/4", Spring

CLAMP - hose, no. 12 type E spring wire

2шт.

23

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch

1шт.

24

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex flange lock, 1/4 inch NC

1шт.
