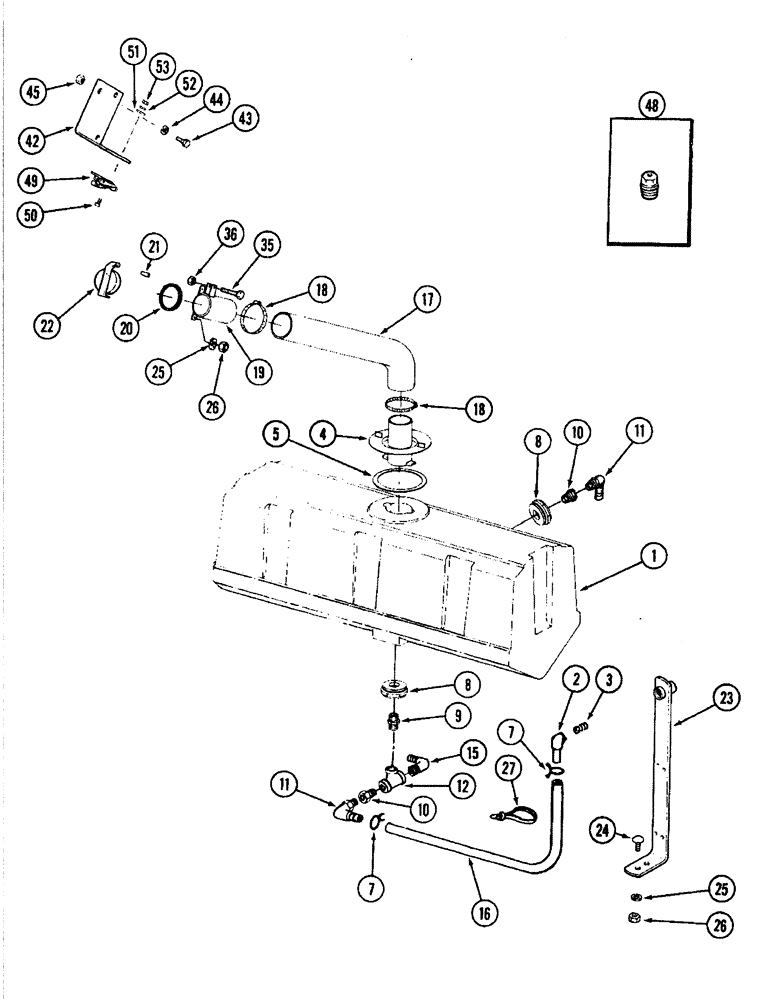

Запчасти Case IH 1822 (9A-114) - WATER TANK, 1822 COTTON PICKER PRIOR TO P.I.N. JJC012910 (14) - WATER SYSTEM

1

REF

INSTRUCTION

TANK - water, 130 gallon (See page 9A-115B)

1шт.

1

NSS

NOT SOLD SEPARAT

TANK - water, 110 gallon (Order 1329203C1)

1шт.

2

1338433C1

ROD, CONNECTING

CONNECTOR - sight gauge

1шт.

3

1338434C1

ADAPTER

- sight gauge

1шт.

4

1288910C3

CAP

ASSEMBLY - water tank

1шт.

5

1338641C1

GASKET

- tank cap

1шт.

7

214-1312

HOSE CLAMP,#12, 3/4", Spring

CLAMP - hose, no. 12 type E spring wire

2шт.

8

1254377C1

FITTING

- hopper, nylon

2шт.

9

1264070C1

FITTING

NIPPLE - 1-1/4 x 1-1/4 inch

1шт.

10

1329209C1

BUSHING

- reducer, 1-1/4 to 3/4 inch

1шт.

11

1329210C1

ELBOW

- 90 degree, 3/4 thread x 1/2 inch barb

2шт.

12

1264067C1

FITTING

TEE - 1-1/4 inch

1шт.

15

1261310C1

ELBOW

- 90 degree, 1-1/4 thread x 1 inch barb

1шт.

16

NSS

NOT SOLD SEPARAT

HOSE - sight gauge, 60 inch (Order 665181R1 and, Serial Range: cut-length)

1шт.

17

NSS

NOT SOLD SEPARAT

HOSE - filler, 81-1/2 inch (Order 87273C1, Serial Range: cut-length)

1шт.

87273C1

HOSE,101.60 mm ID x 304.8 mm

Filler 101.60 mm ID x 304.8 mm

1шт.

18

274090R91

HOSE CLAMP,3.75/4.63 Type F Worm

CLAMP - type F hose

2шт.

19

1288914C2

TUBE,81 mm Length

ASSEMBLY - water

1шт.

20

1338644C1

GASKET

GASKET - water fill cap

1шт.

21

65881H

SPACER,1/4" Pipe x 1 1/4"

- standard pipe, 1/4 x 1-1/4 inch

1шт.

22

86831C3

CAP ASSY.

CAP ASSEMBLY - fill, water remote

1шт.

23

1338598C1

BAR

ASSEMBLY - sight gauge

1шт.

24

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT - round head square neck, 3/8 NC x 1 inch

2шт.

25

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

26

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

27

289862C1

CABLE TIE,3/16" x 7"

STRAP - tie, 6-3/4 inch long

2шт.

35

113-120

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

1шт.

36

9413952

LOCK NUT,5/16"-18, GB

NUT - lock, 5/16 inch NC

1шт.

42

1338642C1

BRACKET

- fill cap latch

1шт.

43

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3шт.

44

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

45

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

3шт.

48

684183R1

PLUG

- vent

1шт.

49

1333780C1

LATCH

- cap

1шт.

50

159929

SCREW,Cross Pan Hd, #10 - 24 x 5/8"

- pan head, no. 10-32 x 5/8 inch

2шт.

51

120391

WASHER,#10

- flat, 7/32 x 1/2 x 1/32 inch

2шт.

52

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

53

120614

NUT,Hex, #10 - 32

NUT, #10-32

2шт.
