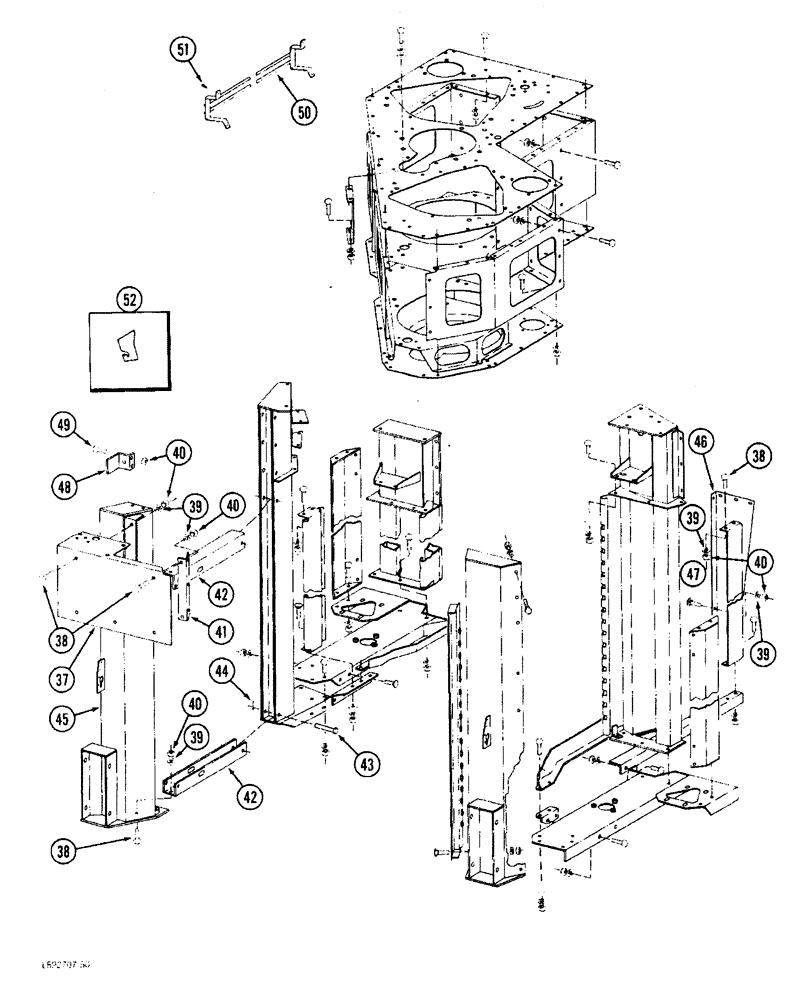

Запчасти Case IH 1822 (9A-102) - DRUM HOUSING, 1822 COTTON PICKER (13) - PICKING SYSTEM

37

1278396C1

LARGE PLATE

PLATE - drum, front (Left drum)

1шт.

37

1278397C1

LARGE PLATE

PLATE - drum, front (Right drum)

1шт.

38

86965C1

BOLT

- hex, 3/8 NC x 3/4 inch

1шт.

39

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

40

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

41

1278443C1

ANGLE

BRACKET - mounting (Left and right drum)

2шт.

42

216791C1

CHANNEL

- tie (Left and right drum)

4шт.

43

21878R1

HEADED PIN,3/8" x 2 3/4"

PIN - headed, 3/8 x 2-3/4 inch

4шт.

44

648002

KNIFE

PIN SPLIT (COTTER), 1/8" x 3/4"

4шт.

45

1278382C2

POST

- front, removable (Left drum)

1шт.

45

1278383C2

POST

- front, removable (Right drum)

1шт.

46

87046C2

GUSSET

POST - rear (Left drum)

1шт.

46

87047C2

GUSSET

POST - rear (Right drum)

1шт.

47

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - round head square neck, 3/8 NC x 3/4 inch

1шт.

48

87154C1

ANGLE

BRACKET - rotor, wrench (Right drum)

1шт.

49

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3шт.

50

1339262C1

GRATE ASSY.

GRATE - drum, front

1шт.

51

276-1478

SELF-TAP SCREW,Hex Hd, 1/4" x 1/2"

BOLT - hex tapping, 1/4 NC x 1/2 inch

4шт.

52

1338398C1

FILLER

SHIM - drum plate, left

1шт.

52

1338457C1

FILLER

SHIM - drum plate, right

1шт.

1338774C1

DRUM

ASSEMBLY - cotton picker, left

1шт.

1338775C1

DRUM

ASSEMBLY - cotton picker, right

1шт.
