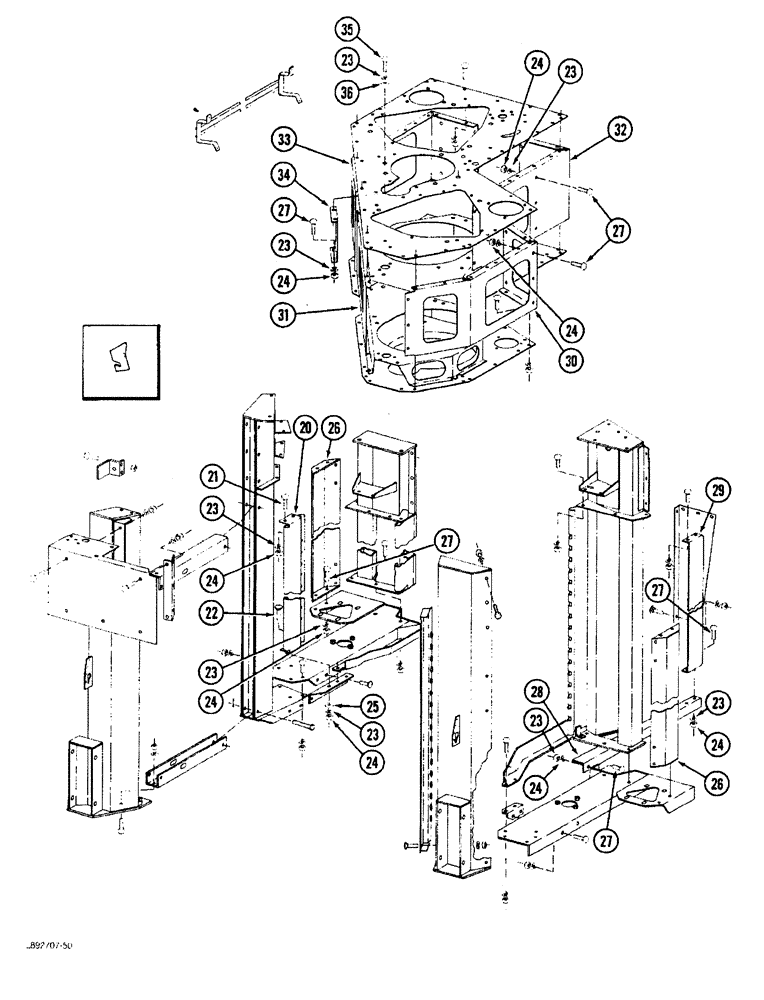

Запчасти Case IH 1822 (9A-100) - DRUM HOUSING, 1822 COTTON PICKER (13) - PICKING SYSTEM

REF

INSTRUCTION

HOUSING ASSEMBLY - drum left

1шт.

REF

INSTRUCTION

HOUSING ASSEMBLY - drum, right

1шт.

20

1278429C1

SUPPORT

- rear slat (Left drum)

1шт.

20

1278430C1

SUPPORT

- rear slat (Right drum)

1шт.

21

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

22

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT - round head square head, 3/8 NC x 1 inch

1шт.

23

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

24

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

25

557950R1

WASHER

- flat, 13/32 x 1 x 11/64 inch

1шт.

26

1338675C1

POST

- doffer guard (Left and right drum)

2шт.

ref #26 1338675c1 has plastic strap riveted on strap is nss

1шт.

27

86965C1

BOLT

- hex, 3/8 NC x 3/4 inch

1шт.

28

1278441C1

ANGLE

BRACKET - rear support (Left drum)

1шт.

28

1278442C1

ANGLE

BRACKET - rear support (Right drum)

1шт.

29

1278440C1

POST

- rear (Left and right drum)

1шт.

30

223966C1

SUPPORT

WRAP - outer, front (Left and right drum)

1шт.

31

223967C2

SUPPORT

WRAP - inner, front (Left drum)

1шт.

31

86928C2

SUPPORT

WRAP - inner, front (Right drum)

1шт.

32

223968C2

SUPPORT

WRAP - outer, rear (Left and right drum)

1шт.

33

223969C4

SUPPORT

WRAP - inner, rear (Left drum)

1шт.

33

1338699C2

SUPPORT

WRAP - inner, rear (Right drum)

1шт.

34

1278655C1

SUPPORT

- gear box (Left and right drum)

1шт.

35

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

36

25709R1

WASHER

- flat, 13/32 x 13/16 x 3/32 inch

1шт.
