Запчасти Case IH 1822 (9A-092) - DOOR AND COVER, 1822 COTTON PICKER (13) - PICKING SYSTEM

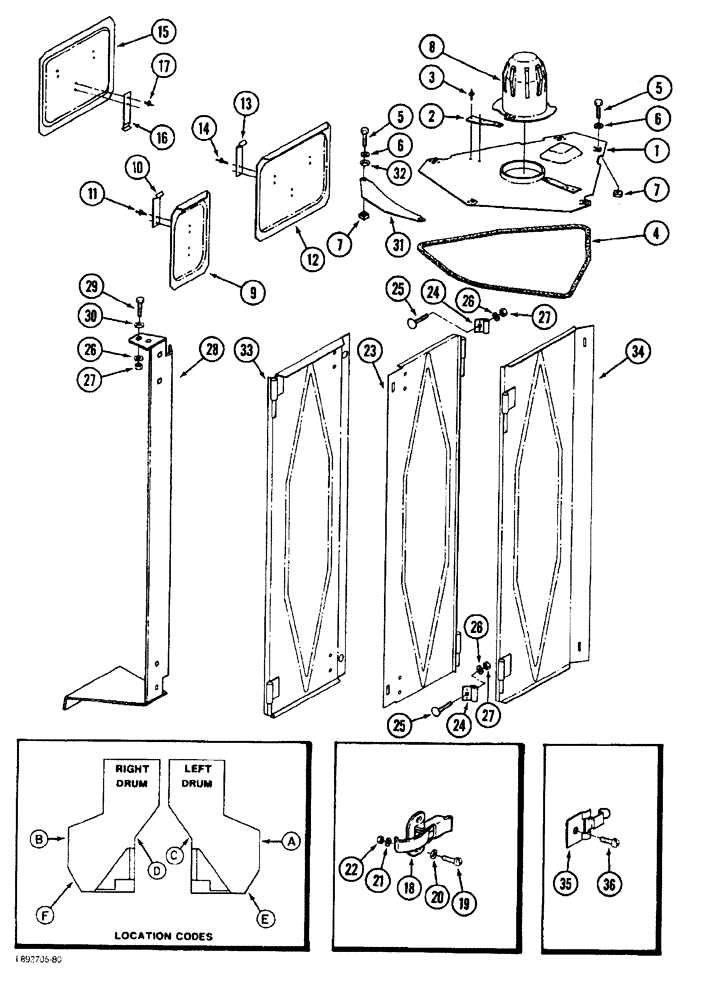

Схема запчастей Case IH 1822 - (9A-092) - DOOR AND COVER, 1822 COTTON PICKER (13) - PICKING SYSTEM
35
17
16
28
26
33
32
7
12
29
21
10
3
18
5
20
13
31
27
27
25
6
15
7
24
24
25
30
2
36
11
26
8
26
23
34
14
5
27
4
1
6
9
19
22

Артикул

Название

Примечание

Количество

1

1278682C92

COVER ASSY

COVER ASSEMBLY - top

4шт.

2

1278684C1

CLIP

- cover

2шт.

3

201946C1

RIVET,Pop, 3/16" x .325"

- break mandrel, 5 x 8 mm

4шт.

4

NSS

NOT SOLD SEPARAT

SEAL - cover, 49-1/2 inch (Order 57554C1, Serial Range: cut-length)

1шт.

57554C1

SEAL

- foam, 200 foot

1шт.

5

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

18шт.

6

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

18шт.

7

673689R1

NUT

- speed, 1/4 inch NC

18шт.

8

1278685C1

COVER

- rotor

4шт.

9

223791C91

COVER

ASSEMBLY - wrap, small

12шт.

10

223793C1

CLIP

- spring

2шт.

11

201946C1

RIVET,Pop, 3/16" x .325"

- break mandrel, 5 x 8 mm

4шт.

12

223797C91

COVER

ASSEMBLY - wrap, large

2шт.

13

223793C1

CLIP

- spring

3шт.

14

201946C1

RIVET,Pop, 3/16" x .325"

- break mandrel, 5 x 8 mm

6шт.

15

87636C91

COVER

ASSEMBLY - wrap, large

2шт.

16

223793C1

CLIP

- spring

3шт.

17

201946C1

RIVET,Pop, 3/16" x .325"

- break mandrel, 5 x 8 mm

6шт.

18

1333780C1

LATCH

- door

4шт.

19

159920

SCREW,Cross Pan Hd, #10 - 24 x 1/2"

- slotted, No. 10 x 1/2 inch

4шт.

20

120391

WASHER,#10

- flat, 7/32 x 1/2 x 1/32 inch

4шт.

21

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

4шт.

22

120614

NUT,Hex, #10 - 32

NUT, #10-32

4шт.

23

1278819C2

DOOR

- drum, left (Loacation A)

1шт.

23

1278820C2

DOOR

- drum, right (Location B)

1шт.

24

1278818C2

HINGE

- door

12шт.

25

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT - round head square neck, 3/8 NC x 1 inch

12шт.

26

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

18шт.

27

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

18шт.

27

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

6шт.

28

1278817C6

SUPPORT

- lower cover, left

2шт.

28

1266356C6

SUPPORT

- lower cover, right

2шт.

29

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex lock, 3/8 NC x 1 inch

16шт.

30

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

- flat, 13/32 x 13/16 x 3/64 inch

8шт.

31

220182C1

LARGE PLATE

PLATE - access

4шт.

32

120392

WASHER,1/4", SAE

- flat, 9.32 x 5/8 x 3/64 inch

8шт.

33

1266321C3

SHIELD

- middle, left (Location C)

1шт.

33

1266322C3

SHIELD

- middle, right (Location D)

1шт.

34

1266324C2

SHIELD

- front, left (Location E)

1шт.

34

1266325C2

SHIELD

- front, right (Location F)

1шт.

35

167800C1

CLIP

CLIP - door

4шт.

36

449625

SELF-TAP SCREW,Slotted Pan Hd, #10 x 5/8"

SCREW - slotted, No. 10 x 5/8 inch tapping

4шт.

Выбрано товаров: 42
