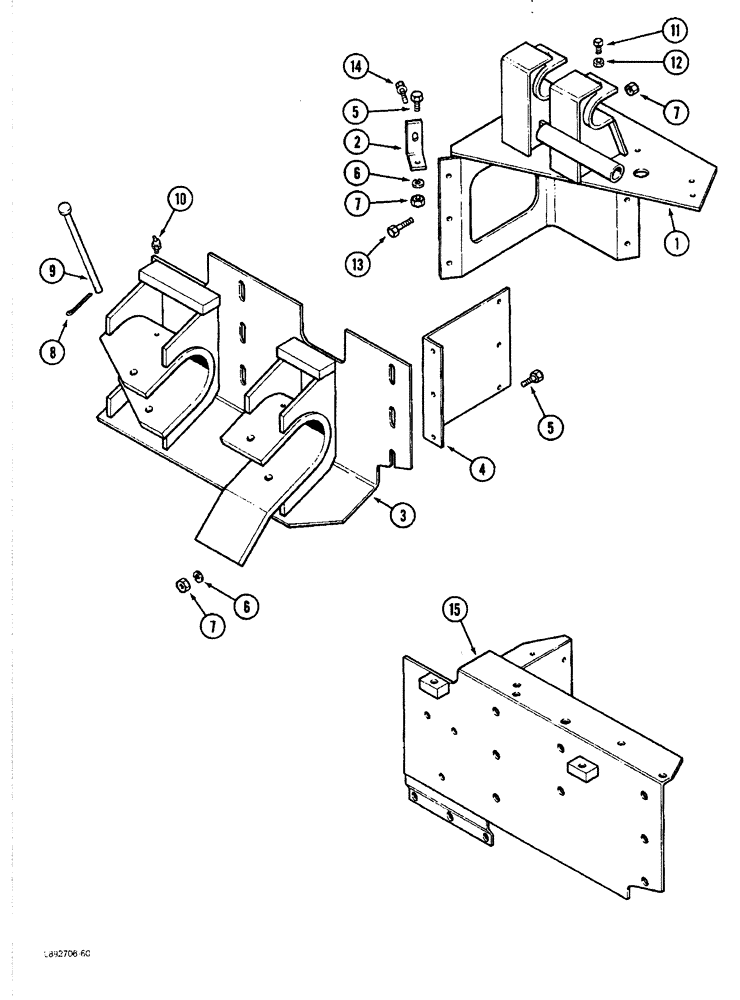

Запчасти Case IH 1822 (9A-090) - DRUM LIFT SUPPORT (13) - PICKING SYSTEM

1

1278267C1

HYDRAULIC LIFT

SUPPORT - radius rod, left (No. 4 drum, 1844 Cotton Picker)

1шт.

1

1278268C1

HYDRAULIC LIFT

SUPPORT - radius rod, right (No. 1 drum, 1844 Cotton Picker)

1шт.

1

1278925C1

SUPPORT

- radius rod, left (No. 2 drum, 1844 Cotton Picker) (Left drum, 1822 Cotton Picker)

1шт.

1

1278926C1

SUPPORT

- radius rod, right (No. 3 drum, 1844 Cotton Picker) (Right drum, 1822 Cotton Picker)

1шт.

2

1278395C1

BRACKET

- mounting (One required per drum)

1шт.

3

1339167C2

SUPPORT

- pivot, left (No. 1 drum, 1844 Cotton Picker)

1шт.

3

1339168C2

SUPPORT

- pivot, right (No. 4 drum, 1844 Cotton Picker)

1шт.

3

1339169C1

SUPPORT ASSY.

SUPPORT - pivot, left (No. 2 drum, 1844 Cotton Picker) (Left drum, 1822 Cotton Picker)

1шт.

3

1339170C1

SUPPORT

- pivot, right (No. 3 drum, 1844 Cotton Picker) (Right drum, 1822 Cotton Picker)

1шт.

4

1278504C2

BRACKET

- corner (One required per drum)

1шт.

5

459401C1

BOLT,Hex Flg, 3/8" - 16 x 1", Full Thd

- hex, 3/8 NC x 1 inch

1шт.

6

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

7

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

8

486830R1

COTTER PIN

PIN - quick attaching

1шт.

9

28780R1

HEADED PIN,5/8" x 5 3/4"

PIN - headed 5/8 x 5-3/4 inch

1шт.

10

219-45

LUBE NIPPLE,65 Degree Elbow, 1/4" NPTF

FITTING - 65 degree grease, 1/4 inch

1шт.

11

84983

SET SCREW,3/8" x 1"

SCREW - square head set, 3/8 NC x 1 inch

1шт.

12

25932R1

JAM NUT,Jam, 3/8"-16, G5

- hex jam, 3/8 inch NC

1шт.

13

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex, 3/8 NC x 1-3/4 inch (No. 2 and 3 drum, 1844 Cotton Picker)(Right and left drum, 1822 Cotton Picker) (One per drum) (replaces 635309R2)

1шт.

ref # 13 new flanged bolt is 1" long - flat head stop bolt is 28766r1

1шт.

14

196471C1

BOLT,Hex, 3/8" - 16 x 1 1/4"

- hex, 3/8 NC x 1-1/4 inch (One per drum)

1шт.

15

1339161C1

SUPPORT

- drum lift, left fixed (Drum No. 1)

1шт.

15

1339162C1

SUPPORT ASSY.

SUPPORT - drum lift, right fixed (Drum No. 4)

1шт.

15

1339163C1

SUPPORT ASSY.

SUPPORT - drum lift, left fixed (Drum No. 2)

1шт.

15

1339164C1

SUPPORT

- drum lift, right fixed (Drum No. 3)

1шт.

15

1339163C1

SUPPORT ASSY.

SUPPORT - drum lift, fixed (Left drum, 1822 Cotton Picker)

1шт.

15

1339164C1

SUPPORT

- drum lift, fixed (Right drum, 1822 Cotton Picker)

1шт.
