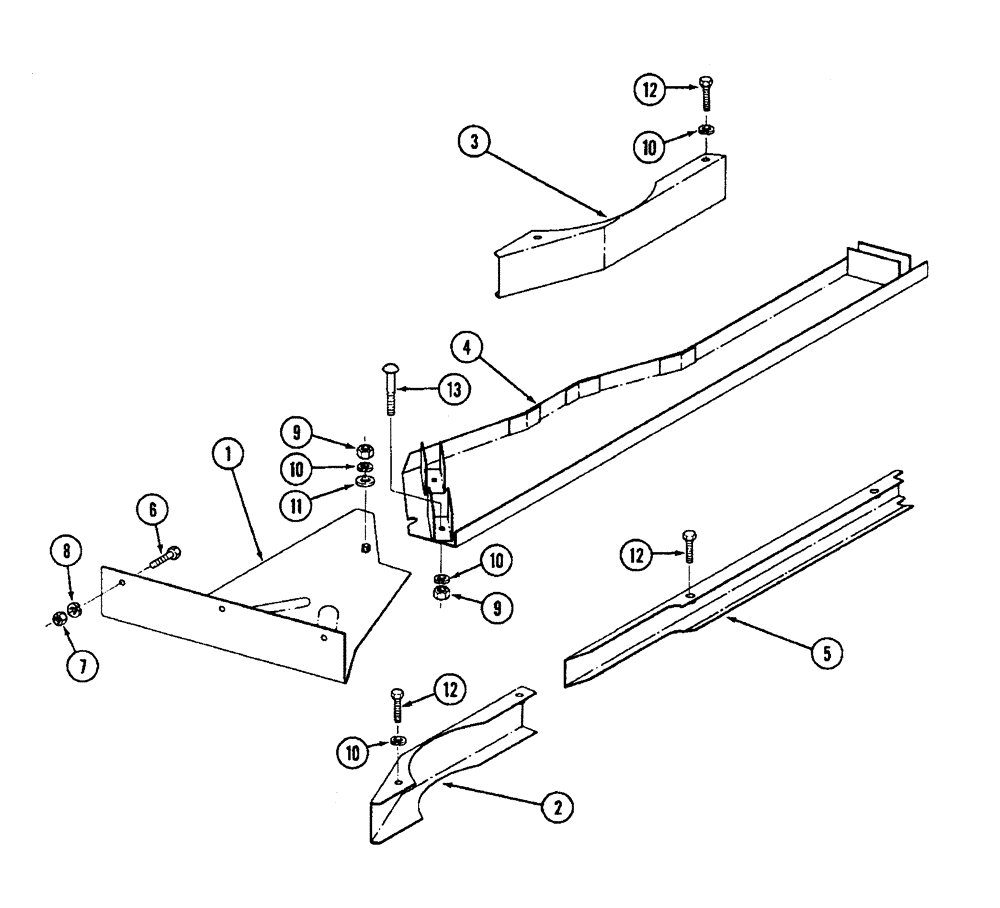

Запчасти Case IH 1822 (9A-072) - THROAT PANEL (13) - PICKING SYSTEM

1

1278410C1

SUPPORT

- throat, left (See note A)

1шт.

1

1278411C1

SUPPORT ASSY.

SUPPORT - throat, right (See note B)

1шт.

2

1278419C1

SHEET ASSY.

PANEL - throat, left

1шт.

3

1278420C1

SHEET ASSY.

PANEL - throat, right

1шт.

4

1278406C1

KNIFE SECTION

SECTION - throat, left (See note A)

1шт.

4

1278407C1

KNIFE SECTION

SECTION - throat, right (See note B)

1шт.

5

1278425C1

SHEET ASSY.

PANEL - rear, left (See note A)

1шт.

5

1278426C1

SHEET ASSY.

PANEL - rear, right (See note B)

1шт.

6

86965C1

BOLT

- hex, 3/8 NC x 3/4 inch

1шт.

6

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

- hex flange, 3/8 NC x 3/4 inch

3шт.

7

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

7

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- flange lock, 3/8 inch NC

2шт.

8

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

9

120376

NUT,5/16"-18, G5

1шт.

10

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

11

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch

1шт.

12

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

13

598807R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 2", Gr 5

BOLT - round head square neck, 5/16 NC x 2 inch

1шт.
