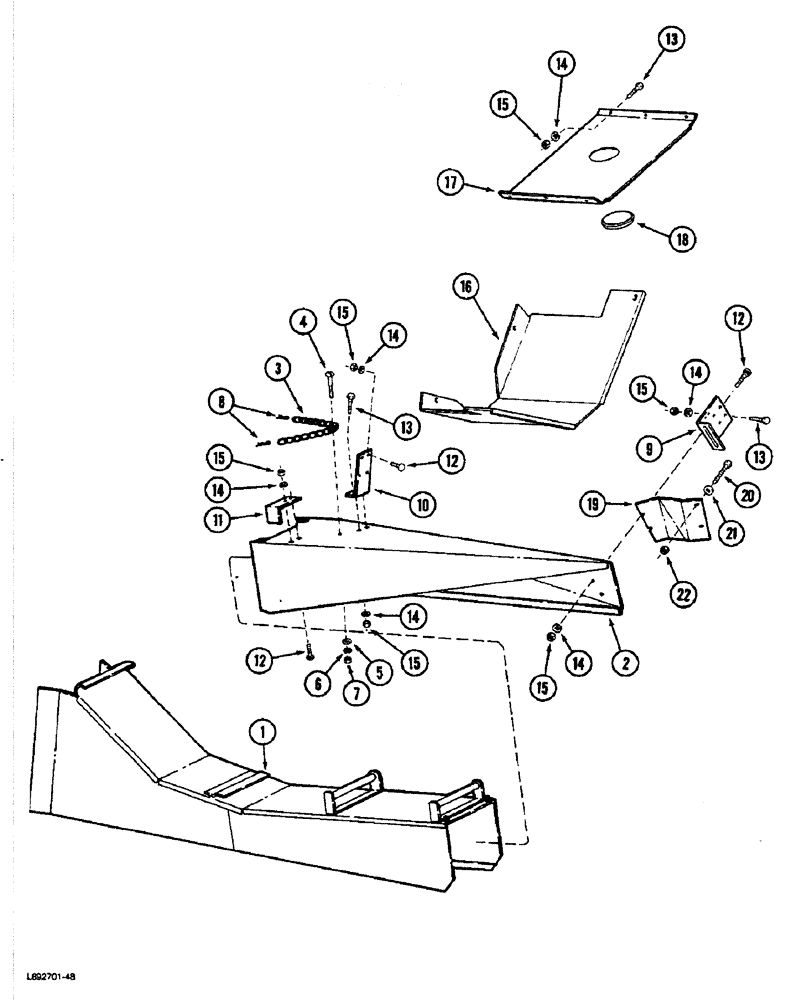

Запчасти Case IH 1822 (9A-064) - PLANT GUARD (13) - PICKING SYSTEM

1

87289C2

SHIELD

- plant

2шт.

2

1278973C6

GUARD

TUNNEL - plant guard, left

1шт.

2

1278974C6

GUARD

TUNNEL - plant guard, right

1шт.

3

655920R91

CHAIN (AG)

CHAIN - tunnel

2шт.

4

1338692C1

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 1"

Tunnel chain Sltd Serr Truss Hd, 1/4"-20 x 1"

2шт.

5

120392

WASHER,1/4", SAE

- flat, 9/32 x 5/8 x 3/64 inch (If equipped)

2шт.

6

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, (If equipped) 1/4"

2шт.

7

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex flange lock, 1/4 inch NC

2шт.

7

86625061

NUT,1/4"-20, GB

NUT - hex, self-locking, 1/4 inch NC

2шт.

8

486830R1

COTTER PIN

PIN - quick attachable

4шт.

9

1266374C2

SUPPORT

- tunnel

2шт.

10

1266376C4

SUPPORT

- tunnel

2шт.

11

1266377C2

ANGLE BAR

SUPPORT - tunnel

2шт.

12

598808R1

SCREW,Short NK, 3/8"-16 x 1/2", G5, Full Thd

BOLT - round head square neck, 3/8 NC x 1/2 inch

12шт.

13

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

10шт.

14

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

22шт.

15

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

22шт.

16

1338795C1

DEFLECTOR

PLATE - deflector, fan

1шт.

17

1266330C3

LARGE PLATE

PLATE - cover

1шт.

18

1302758C1

PLUG

- hole

1шт.

19

87070C2

SHIELD

- deflector, left

1шт.

19

87071C2

SHIELD

- deflector, right

1шт.

20

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

- hex, 5/16 NC x 1-1/4 inch

4шт.

21

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch

4шт.

22

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex, 5/16 inch NC

4шт.
