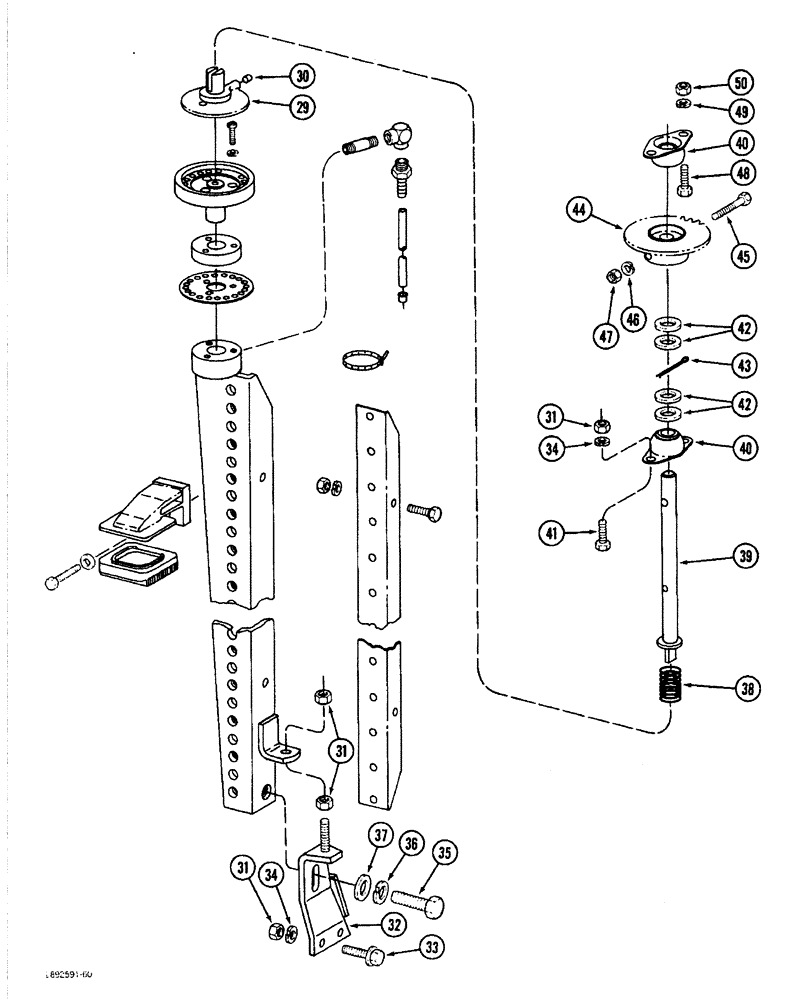

Запчасти Case IH 1822 (9A-060) - MOISTENER STAND (13) - PICKING SYSTEM

29

11879R

SPACER

DISTRIBUTOR ASSEMBLY - water

2шт.

30

NSS

NOT SOLD SEPARAT

PLUG - water distributor (Order 11879R)

1шт.

31

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

12шт.

31

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- flange lock, 3/8 inch NC

4шт.

32

1338991C1

SUPPORT

ASSEMBLY - left

1шт.

32

1338992C1

SUPPORT

ASSEMBLY - right

1шт.

33

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex head flange, 3/8 NC x 1 inch

4шт.

34

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

34

557950R1

WASHER

- flat, 13/32 x 1 x 11/64 inch

1шт.

35

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

36

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

37

28423R1

WASHER

- flat, 17/32 x 1-1/4 x 3/16 inch

2шт.

38

11816R

SPRING

- water distributor

2шт.

39

1266336C1

SHAFT

ASSEMBLY - moistener distributor

2шт.

40

164864C91

FLANGE,15.89mm ID

BEARING - flange

4шт.

41

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

42

21796R1

WASHER

- flat, 21/32 x 1 x 3/64 inch

8шт.

43

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

2шт.

44

1266333C1

SPROCKET ASSY.

SPROCKET ASSEMBLY - distributor shaft

2шт.

45

180046

SPRING

- hex, 1/4 NC x 2-1/4 inch

2шт.

46

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

47

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.

48

25228R1

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

- hex, 5/16 NC x 3/4 inch

4шт.

49

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

50

120376

NUT,5/16"-18, G5

4шт.
