Запчасти Case IH 1822 (2-06) - COOLANT RECOVERY SYSTEM (01) - ENGINE

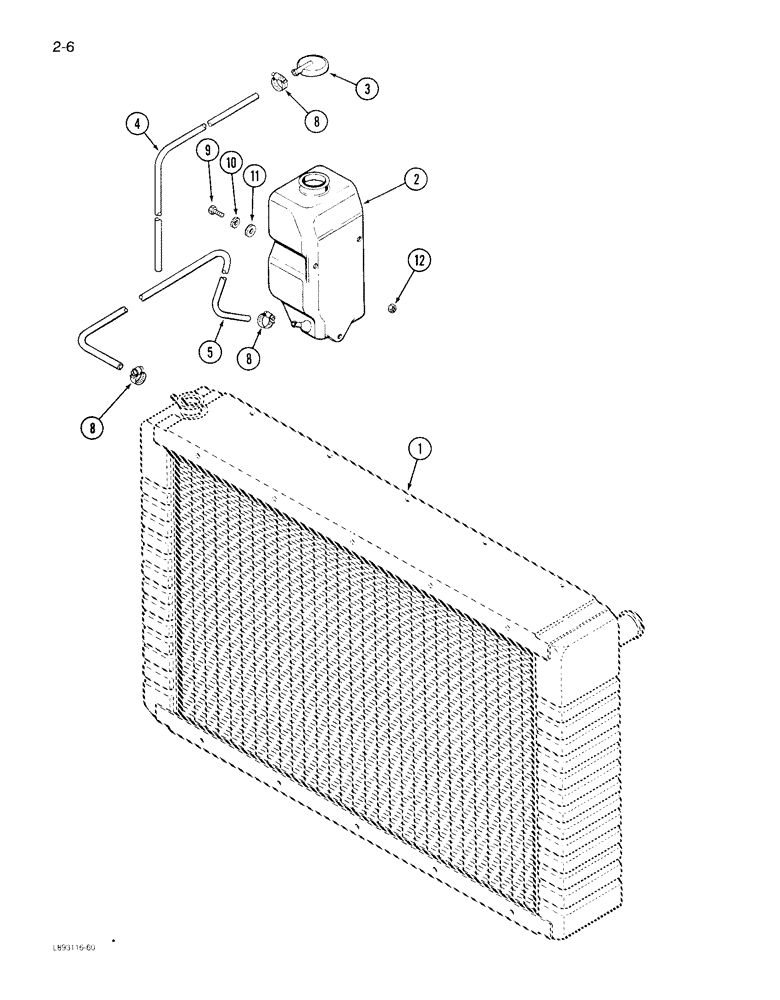

Схема запчастей Case IH 1822 - (2-06) - COOLANT RECOVERY SYSTEM (01) - ENGINE
11
1
8
5
12
2
4
9
8
3
8
10

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

RADIATOR - coolant, engine (See page 2-4)

1шт.

2

437703C1

TANK

- reservoir, rcovery

1шт.

3

437702C1

CAP

- reservoir tank

1шт.

4

NSS

NOT SOLD SEPARAT

HOSE - reservior, 38 inch (Order 87086C1, Serial Range: cut-length)

1шт.

5

NSS

NOT SOLD SEPARAT

HOSE - reservoir, 16-1/2 inch (Order 87086C1, Serial Range: cut-length)

1шт.

87086C1

RADIATOR HOSE,7.90 mm ID

HOSE, 7.90 mm ID

1шт.

8

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

3шт.

9

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

3шт.

10

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

3шт.

11

25707R1

WASHER,.281" x 5/8" x .075", HDN

- flat, 9/23 x 5/8 x 3/64 inch

3шт.

12

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

3шт.

Выбрано товаров: 11
