Запчасти Case IH 1822 (9A-052) - CAM LUBRICATION (13) - PICKING SYSTEM

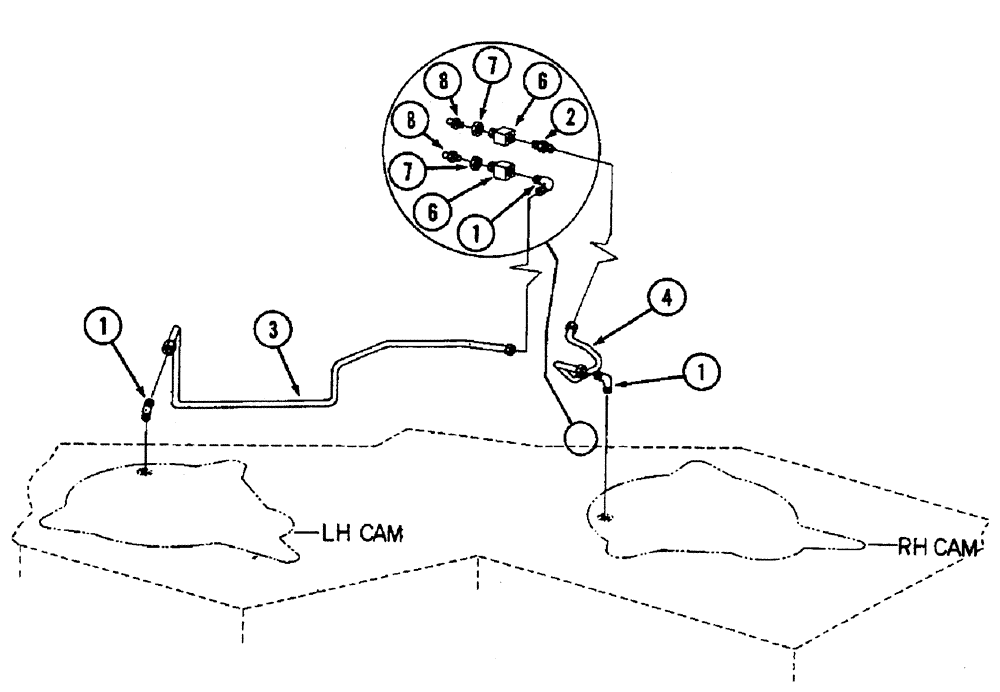

Схема запчастей Case IH 1822 - (9A-052) - CAM LUBRICATION (13) - PICKING SYSTEM
8
8
7
1
6
7
1
4
3
1
2
6

Артикул

Название

Примечание

Количество

1

9402862

ELBOW,90 Degree, 7/16"-20, 37 Degree x 1/8"-27, NPTF

- 90 degree, 7/16-20 x 1/8 inch PT

3шт.

2

9402706

HYD CONNECTOR,7/16"-20, 37 Degree x 1/8"-27, NPTF

CONNECTOR - flared tube, 1/8 PT x 7/16-20 inch thread

1шт.

3

87247C1

TUBE,0.25" OD

ASSEMBLY - front cam lubrication, left

1шт.

3

87248C1

TUBE,0.25" OD

ASSEMBLY - front cam lubrication, right

1шт.

4

87249C1

TUBE,0.25" OD

ASSEMBLY - rear cam lubrication, left

1шт.

4

87250C1

TUBE,0.25" OD

ASSEMBLY - rear cam lubrication, right

1шт.

6

580255R1

ADAPTER

ADPATER - straight bank lubrication

2шт.

7

F53473

LOCK NUT,1/8-27 NPSM

- 1/8-27 inch pipe

2шт.

8

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

Выбрано товаров: 9
