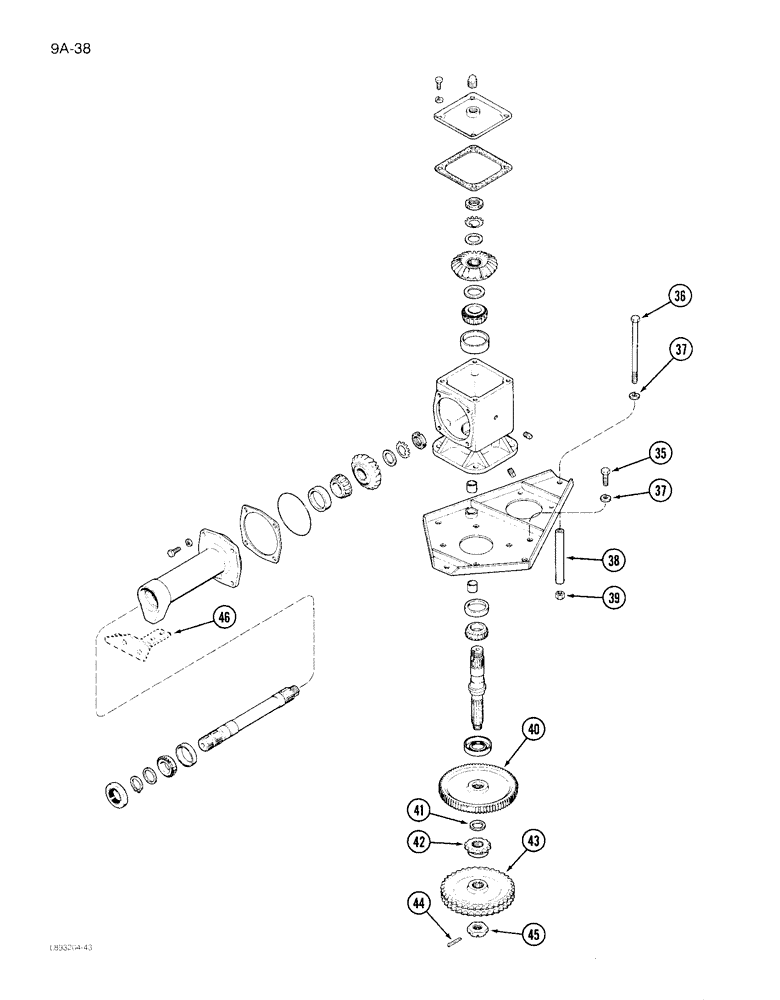

Запчасти Case IH 1822 (9A-038) - GEAR BOX DRUM NUMBER 1 AND 2, 1822 COTTON PICKER (13) - PICKING SYSTEM

35

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

10шт.

36

21469R1

BOLT,Hex, 1/2" - 13 x 7 3/4", Gr 5

- hex, 1/2 NC x 7-3/4 inch

2шт.

37

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

12шт.

38

1266278C1

TUBE,0.75" OD, 160.5" Length

- spacer

2шт.

39

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

40

1266259C2

GEAR

- drum drive

2шт.

41

11926R

SHIM

- drum drive sprocket

1шт.

42

1266250C1

SPROCKET ASSY.

SPROCKET - picker drum drive

2шт.

43

1266260C1

SPROCKET ASSY.

SPROCKET - spindle and doffer drive

2шт.

44

132-336

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

2шт.

45

359040R1

NUT

- hex slotted, 7/8-14 inch

2шт.

46

REF

INSTRUCTION

BRACKET ASSEMBLY - housing support (See Page 9A-35)

1шт.
