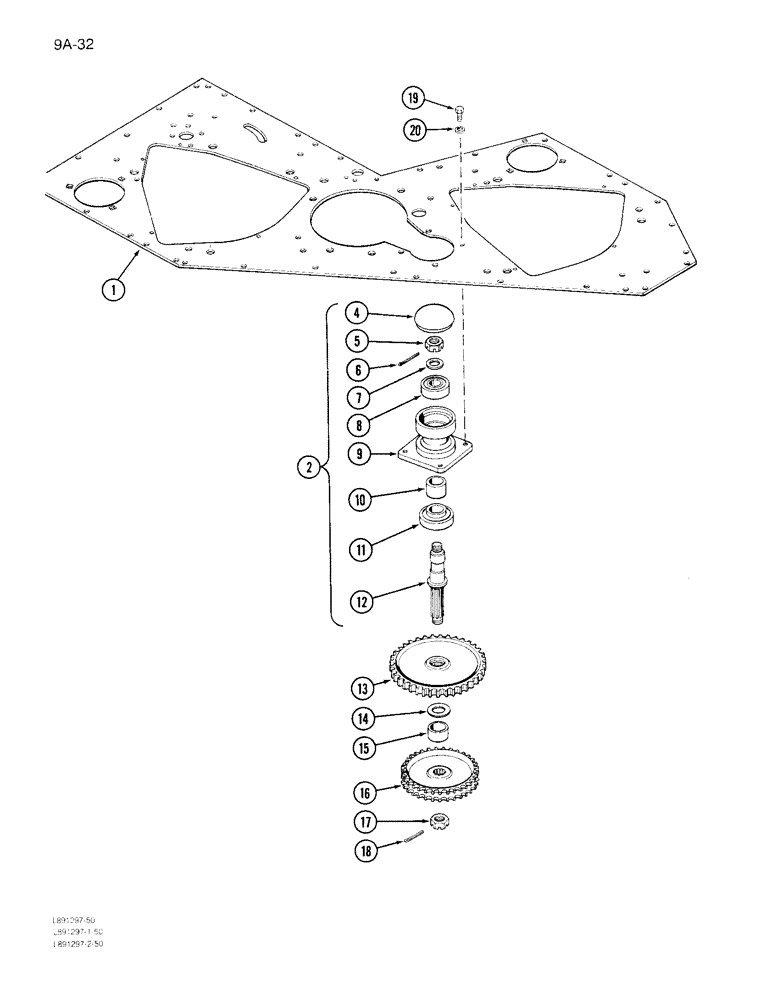

Запчасти Case IH 1822 (9A-032) - DRUM IDLER SHAFT (13) - PICKING SYSTEM

1

REF

INSTRUCTION

PLATE - drum top (See Page 9A-99 and 105)

1шт.

2

86862C92

HOUSING ASSY.

HOUSING ASSEMBLY -idler

1шт.

4

A61450

BEARING CAP,3.155" ID x 3.41" OD x 1.38"

CAP - idler housing

1шт.

5

359040R1

NUT

- hex slotted, 7/8-14 inch

1шт.

6

432-824

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1-1/2"

1шт.

7

87510C1

WASHER

- flat, 7/8 x 1-1/2 inch

1шт.

8

566632R92

BALL BEARING,44.04mm ID x 62mm OD x 18mm W

BEARING - ball, upper

1шт.

9

1266307C1

HOUSING

- idler shaft

1шт.

10

1266281C2

SPACER

TUBE - idler housing spacer

1шт.

11

587015R92

BEARING, ROLLER, CYL,31.75mm ID x 72mm OD x 19mm W

- ball, lower

1шт.

12

1266274C3

SHAFT

- drum drive idler

1шт.

13

1266259C3

GEAR

- drum drive, 80 tooth

1шт.

14

11926R

SHIM

- idler shaft

1шт.

15

675251R2

SPACER

- drum drive gear

1шт.

16

1266260C1

SPROCKET ASSY.

SPROCKET - drive, 36 tooth

1шт.

17

359040R1

NUT

- hex slotted, 7/8-14 inch

1шт.

18

432-824

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1-1/2"

1шт.

19

60365H

BOLT,Hex, 3/8" - 16 x 1", Gr 8

- hex, 3/8 NC x 1 inch, Grade 8

4шт.

20

492-11038

LOCK WASHER,3/8"

4шт.
