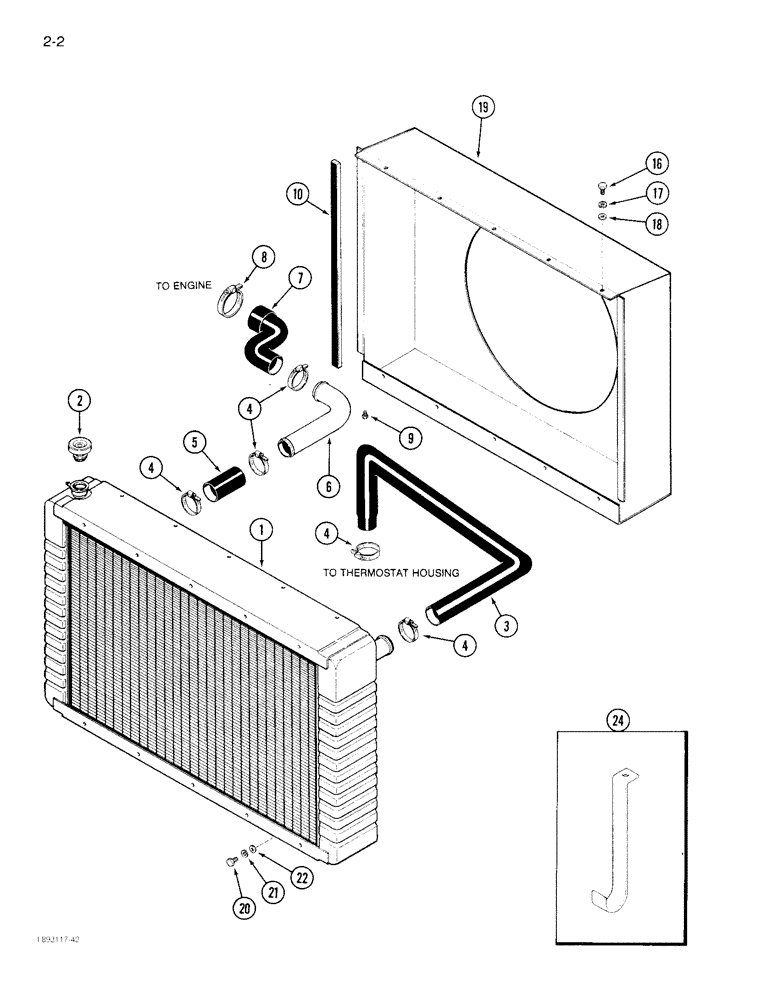

Запчасти Case IH 1822 (2-02) - RADIATOR AND FAN SHROUD 1822 COTTON PICKER (01) - ENGINE

1

84357C2

RADIATOR

- coolant, engine

1шт.

2

130704C1

CAP

- radiator pressure, 10 PSI

1шт.

3

1338667C1

HOSE

- coolant, radiator upper out

1шт.

4

681209C1

HOSE CLAMP,#32, 1.56/2.50 Type F Worm, W/liner

CLAMP - hose, No. 32 type F

5шт.

5

1329393C1

RADIATOR HOSE,50.80 mm ID x 101.60, SAE 20R4 CLASS D-1 OR SAE 20R1 CLASS B

Lower 50.80 mm ID x 101.60, SAE 20R4 CLASS D-1 OR SAE 20R1 CLASS B

1шт.

6

1338664C2

TUBE,246, 160 mm Length

- coolant, engine inlet

1шт.

7

1338665C1

HOSE

- coolant, water inlet

1шт.

8

401345R1

HOSE CLAMP,#40, 2.06/3.00 Type F Worm, W/liner

CLAMP - hose, No. 40 type F

1шт.

9

20988R1

PLUG,Hex Hd, 1/4"-18, Brass

- hex head pipe, 1/4-18 inch PT

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL - foam, 26 inch (Order 87084C1, Serial Range: cut-length)

2шт.

87084C1

SEAL

- bulk foam, 4 foot roll

1шт.

16

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

17

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

18

28588R1

WASHER

- flat, 11/32 x 11/16 . 3/64 inch

4шт.

19

1338787C2

ORIFICE RING

SHROUD - fan

1шт.

20

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

10шт.

21

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

10шт.

22

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch

10шт.

24

1345172C1

BRACKET

- radiator hose hanger

1шт.
