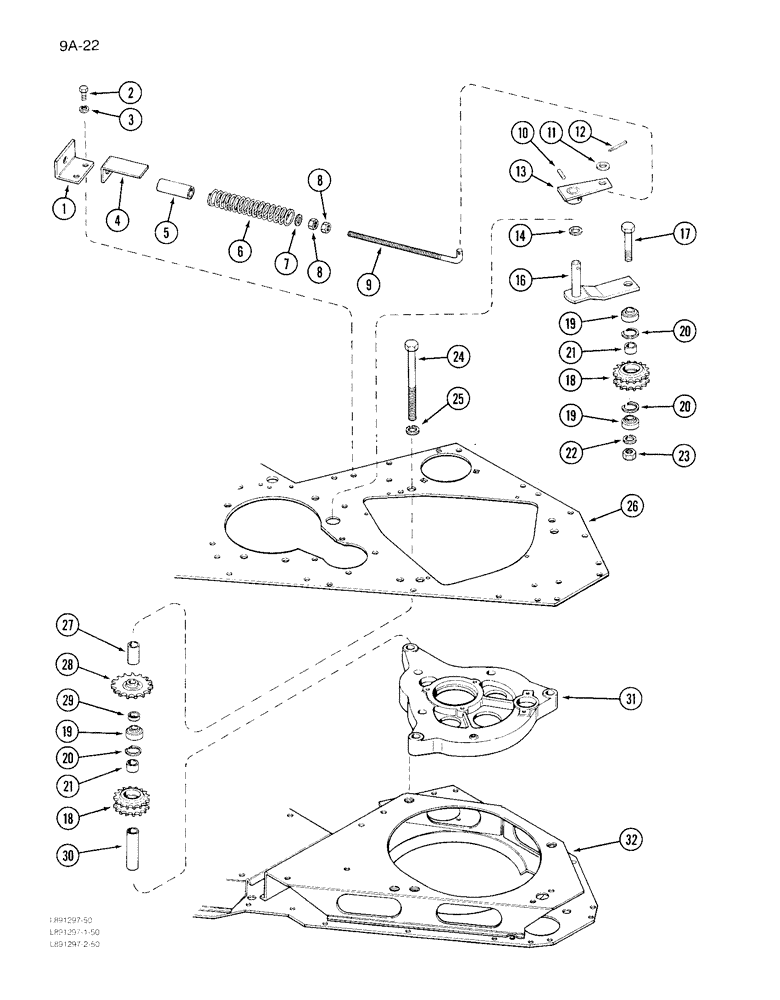

Запчасти Case IH 1822 (9A-022) - IDLER ARMS AND SPROCKETS ROTOR DRIVE CHAIN (13) - PICKING SYSTEM

1

87120C1

BRACKET

- idler spring

1шт.

2

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

3

492-11038

LOCK WASHER,3/8"

2шт.

4

87786C1

GAUGE

- idler spring adjusting

1шт.

5

87787C1

SPACER

- tension spring

1шт.

6

87128C1

SPRING

- chain tension

1шт.

7

495-81162

WASHER,17/32" x 1 1/2" x .179"

- flat, 17/32 x 1-1/2 x 11/64 inch

1шт.

8

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

9

87134C2

STUD

- idler spring

1шт.

10

576485R1

LOCK PIN,1/4" x 1 1/4", Slotted

1шт.

11

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

1шт.

12

432-1216

COTTER PIN,3/16" x 1"

1шт.

13

87102C2

LEVER

- idler

1шт.

14

495-81036

WASHER,19.84mm ID x 31.75mm OD x 0.84mm Thk

- flat, 25/32 x 1-1/4 x1/32 inch

1шт.

16

87108C1

ARM

- idler

1шт.

17

413-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

- hex, 5/8 NC x 3-1/4 inch

1шт.

18

10219R

SPROCKET ASSY.

SPROCKET - idler, 15 teeth

2шт.

19

666624R91

BALL BEARING,16.26mm ID x 40mm OD x 18mm W

- sprocket

4шт.

20

10213R1

RING - bearing retaining

4шт.

21

1266332C1

SPACER

- bearing

2шт.

22

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

23

425-1010

NUT,5/8"-11, G5

1шт.

24

413-10120

BOLT,Hex, 5/8" - 11 x 7-1/2", Gr 5

- hex, 5/8 NC x 7-1/2 inch

1шт.

25

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

26

REF

INSTRUCTION

PLATE - drum top (See Page 9A-99 and 105)

1шт.

27

672450R1

SPACER

- idler sprocket

1шт.

28

211623C91

SPROCKET

- idler, 17 teeth

1шт.

29

671073R1

SPACER

- idler sprocket

1шт.

30

1266331C1

SPACER

- idler sprocket

1шт.

31

REF

INSTRUCTION

CAM - idler arm (See Page 9A-47)

2шт.

32

REF

INSTRUCTION

PLATE - drum center (See Page 9A-99 and 105)

1шт.
