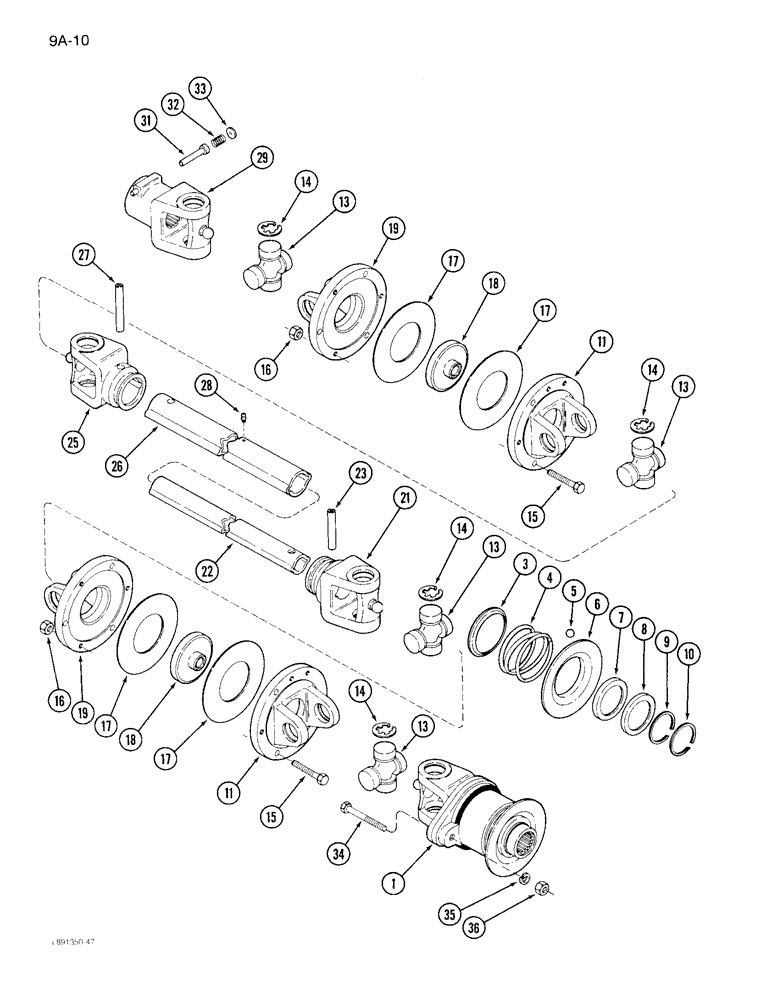

Запчасти Case IH 1822 (9A-010) - AUXILIARY DRUM DRIVE SHAFT, 1822 COTTON PICKER (13) - PICKING SYSTEM

87301C91

SHAFT ASSY.

SHAFT ASSEMBLY - drive, right (Order 1983066C1) (See Page 9A-13A)

1шт.

87302C91

SHAFT

ASSEMBLY - drive, left (Order 1983065C1) (See Page 9A-13A)

1шт.

1

87548C1

CLUTCH

- shaft, right

1шт.

1

87549C1

CLUTCH

- shaft, left

1шт.

87547C1

KIT

- clutch

1шт.

3

NSS

NOT SOLD SEPARAT

RING - backup (Order 87547C1)

1шт.

4

NSS

NOT SOLD SEPARAT

SPRING - compression (Order 87547C1)

1шт.

5

NSS

NOT SOLD SEPARAT

BALL - (Order 87547C1)

3шт.

6

NSS

NOT SOLD SEPARAT

COLLAR - lock (Order 87547C1)

1шт.

7

NSS

NOT SOLD SEPARAT

RING - backup (Order 87547C1)

1шт.

8

NSS

NOT SOLD SEPARAT

RING - backup (Order 87547C1)

1шт.

9

NSS

NOT SOLD SEPARAT

RING - retaining snap (Order 87547C1)

1шт.

10

NSS

NOT SOLD SEPARAT

RING - retaining snap (Order 87547C1)

1шт.

11

87550C1

FORK

YOKE - shaft

2шт.

1281444C1

KIT

KIT - universal joint

4шт.

13

NSS

NOT SOLD SEPARAT

CROSS AND BEARING - (Order 1281444C1)

4шт.

14

NSS

NOT SOLD SEPARAT

LOCK - bearing (Order 1281444C1)

16шт.

15

931432R1

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8

16шт.

16

30208R1

NUT,M6, Cl 10

- hex, 6 mm

16шт.

17

87557C1

DISK HARROW

DISK - friction

4шт.

18

87558C1

LARGE PLATE

PLATE - centering

2шт.

19

87551C1

FORK

YOKE - shaft

2шт.

1329222C1

FORK

YOKE ASSEMBLY - inner

1шт.

21

NSS

NOT SOLD SEPARAT

YOKE - shaft (Order 1329222C1)

1шт.

22

NSS

NOT SOLD SEPARAT

TUBE - shaft (Order 1329222C1)

1шт.

23

30907R1

LOCK PIN,M10 x 70, Slotted

PIN - roll, 10 x 70 mm

1шт.

1329223C1

FORK

YOKE ASSEMBLY - outer

1шт.

25

NSS

NOT SOLD SEPARAT

YOKE - shaft (Order 1329223C1)

1шт.

26

NSS

NOT SOLD SEPARAT

TUBE - shaft (Order 1329223C1)

1шт.

27

30907R1

LOCK PIN,M10 x 70, Slotted

PIN - roll, 10 x 70 mm

1шт.

28

66584D

FITTING

- grease, drive type

1шт.

29

87554C1

FORK

YOKE - shaft

1шт.

1281458C1

KIT

- pin

1шт.

31

NSS

NOT SOLD SEPARAT

PIN - (Order 1281458C1)

1шт.

32

NSS

NOT SOLD SEPARAT

SPRING (Order 1281458C1)

1шт.

33

NSS

NOT SOLD SEPARAT

WASHER (Order 1281458C1)

1шт.

34

18659R1

BOLT,Hex, 1/4" - 20 x 2", Gr 2

- hex, 1/4 NC x 2 inch

2шт.

35

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

36

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.
