Запчасти Case IH 1822 (9A-006) - DRUM DRIVE (13) - PICKING SYSTEM

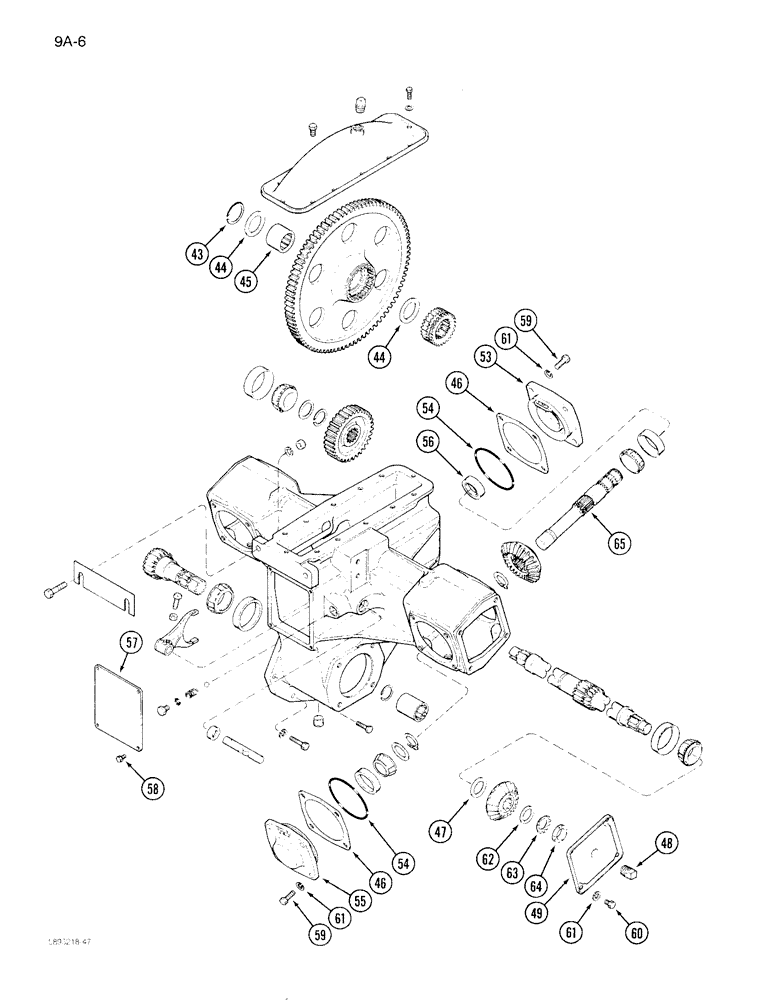

Схема запчастей Case IH 1822 - (9A-006) - DRUM DRIVE (13) - PICKING SYSTEM
61
60
54
65
46
58
54
45
61
48
59
44
62
63
56
55
43
49
64
47
61
53
44
59
46
57

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

DRIVE ASSEMBLY - drum

1шт.

43

336000R1

SNAP RING,#175, 1.640", Ext

RING - retaining snap

1шт.

44

1277389C1

THRUST WASHER

- thrust

1шт.

45

1277417C91

NEEDLE BEARING

- needle, output gear

1шт.

86815C1

SHIM KIT

KIT - shim, gear box

1шт.

46

NSS

NOT SOLD SEPARAT

SHIM - 0.003 inch (Order 86815C1)

1шт.

46

NSS

NOT SOLD SEPARAT

SHIM - 0.005 inch (Order 86815C1)

1шт.

46

NSS

NOT SOLD SEPARAT

SHIM - 0.007 inch (Order 86815C1)

1шт.

46

NSS

NOT SOLD SEPARAT

SHIM - 0.011 inch (Order 86815C1)

1шт.

46

NSS

NOT SOLD SEPARAT

SHIM - 0.020 inch (Order 86815C1)

1шт.

86814C1

SHIM KIT

KIT - bevel gear and shim

1шт.

47

NSS

NOT SOLD SEPARAT

SHIM - 0.003 inch (Order 86814C1)

4шт.

47

NSS

NOT SOLD SEPARAT

SHIM - 0.138 inch (Order 86814C1)

1шт.

47

NSS

NOT SOLD SEPARAT

SHIM - 0.150 inch (Order 86814C1)

1шт.

48

438159

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - square head pipe, 1/2 inch PT

2шт.

49

223857C1

COVER

- inspection

2шт.

53

1286295C1

BEARING CAP

CAGE - bearing, outer

2шт.

54

22284R1

O-RING,0.103" Thk x 4.487" ID, -157, Cl 5, 75 Duro

- cage, 4-1/2 x 4-11/16 x 3/32 inch

4шт.

55

1286294C1

BEARING CAP,55 mm ID x 125.374 mm OD x 21, 15 mm

CAGE - bearing, inner

2шт.

56

358812R91

OIL SEAL

SEAL - oil

2шт.

57

1286302C1

COVER

- inspection

1шт.

58

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

59

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

16шт.

60

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

8шт.

61

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

24шт.

62

223864C1

WASHER

- gear

2шт.

63

127686

LOCK WASHER,Type W-06

WASHER - bearing lock

2шт.

64

271253

NUT

- bearing lock

2шт.

65

1286312C1

SHAFT

- output

2шт.

Выбрано товаров: 29
