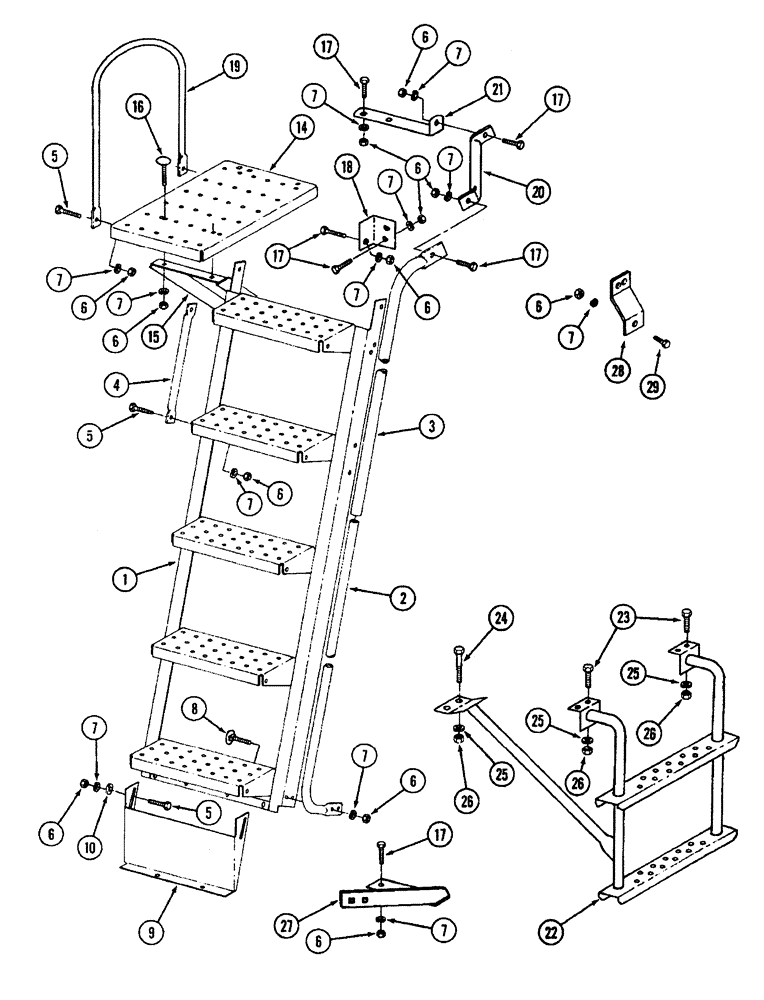

Запчасти Case IH 1822 (9E-36) - STEPS AND LADDERS, 1822 COTTON PICKER (12) - CHASSIS

1

1278705C5

LADDER - operators

1шт.

2

1278711C1

RAIL

- ladder, inner

1шт.

3

86840C1

RAIL ASSY.

RAIL - ladder, outer

1шт.

4

1285388C1

SUPPORT

RAIL - hand

1шт.

5

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

8шт.

6

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

20шт.

7

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

20шт.

8

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT - round head square neck, 3/8 NC x 1 inch

2шт.

9

1266362C2

SUPPORT

- chute ladder

1шт.

10

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 1/16 inch) 3/8"

2шт.

14

1278720C2

PLATFORM

- operators

1шт.

15

1278724C1

SUPPORT

BRACE - platform

1шт.

16

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT - round head square neck, 3/8 NC x 1-1/4 inch

4шт.

17

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

7шт.

18

1278726C1

SUPPORT

BRACKET - platform

1шт.

19

87138C1

RAIL ASSY.

RAIL - hand

1шт.

20

1338912C1

SUPPORT TUBE

BRACKET - ladder support

1шт.

21

87467C1

SUPPORT

BRACKET - ladder support

1шт.

22

1285227C1

LADDER

- platform

1шт.

23

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

4шт.

24

113-425

BOLT,Hex, 1/2" - 13 x 3", Gr 5

2шт.

25

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

6шт.

26

129-105

NUT,Hex, 1/2" - 13, Gr 5

6шт.

27

1278762C1

BAR

- ladder support

1шт.

28

1338921C2

GUSSET

BRACKET - ladder support

1шт.

29

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.
