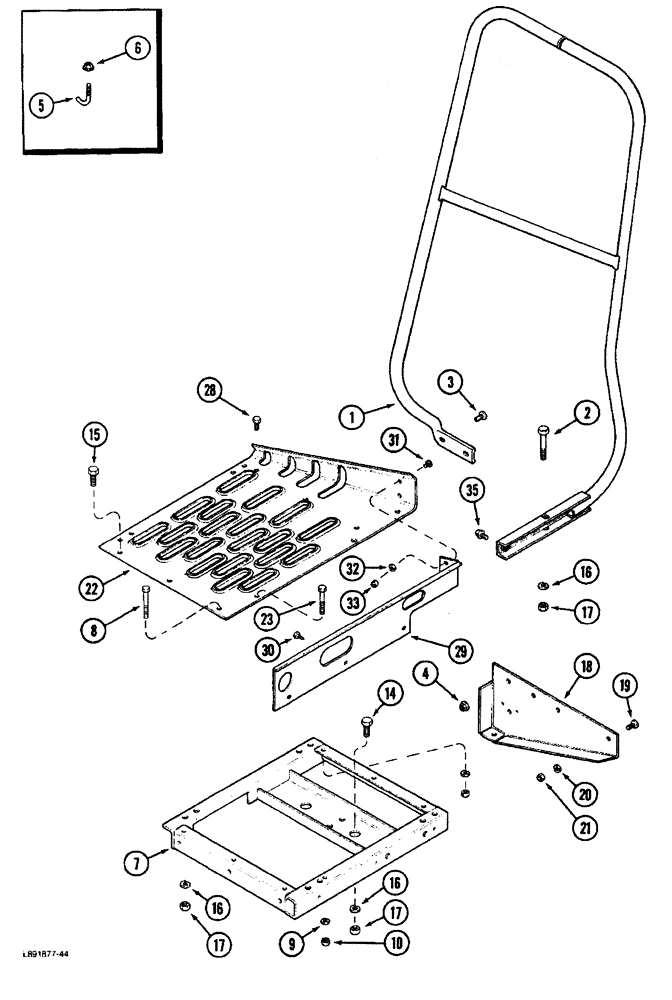

Запчасти Case IH 1822 (9E-34) - PLATFORM EXTENSION (12) - CHASSIS

1

198548C2

RAIL

ASSEMBLY - platform extension front

1шт.

2

413-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

- hex, 1/2 NC x 2-3/4 inch

1шт.

3

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss, 3/8 NC x 3/4 inch

2шт.

4

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NF

3шт.

5

196967C2

BOLT,3/8" - 16 x 2"

- front hand rail hook (If equipped)

1шт.

6

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- flange lock, 3/8 inch (If equipped)

2шт.

7

1278508C4

SUPPORT

- operators platform

1шт.

8

113-241

BOLT,Hex, 3/8" - 16 x 3", Gr 5

4шт.

9

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

10

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

8шт.

14

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

6шт.

15

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

4шт.

16

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

11шт.

17

129-105

NUT,Hex, 1/2" - 13, Gr 5

11шт.

18

198541C3

SUPPORT ASSY.

SUPPORT - platform extension

1шт.

19

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss, 3/8 NC x 3/4 inch

2шт.

20

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

21

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

22

198547C3

LARGE PLATE

TREAD - platform extension

1шт.

23

113-248

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

1шт.

28

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3шт.

29

198542C3

SUPPORT

- operators platform extension

1шт.

30

552897R1

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW - hex washer head tap, 1/4 x 1/2 inch

3шт.

31

1330152C1

SCREW,Sl Serr Truss Hd, 5/16" - 18 x 3/4"

2шт.

32

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

33

120376

NUT,5/16"-18, G5

2шт.

35

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

- hex flanged, 3/8 NC x 3/4 inch

1шт.
