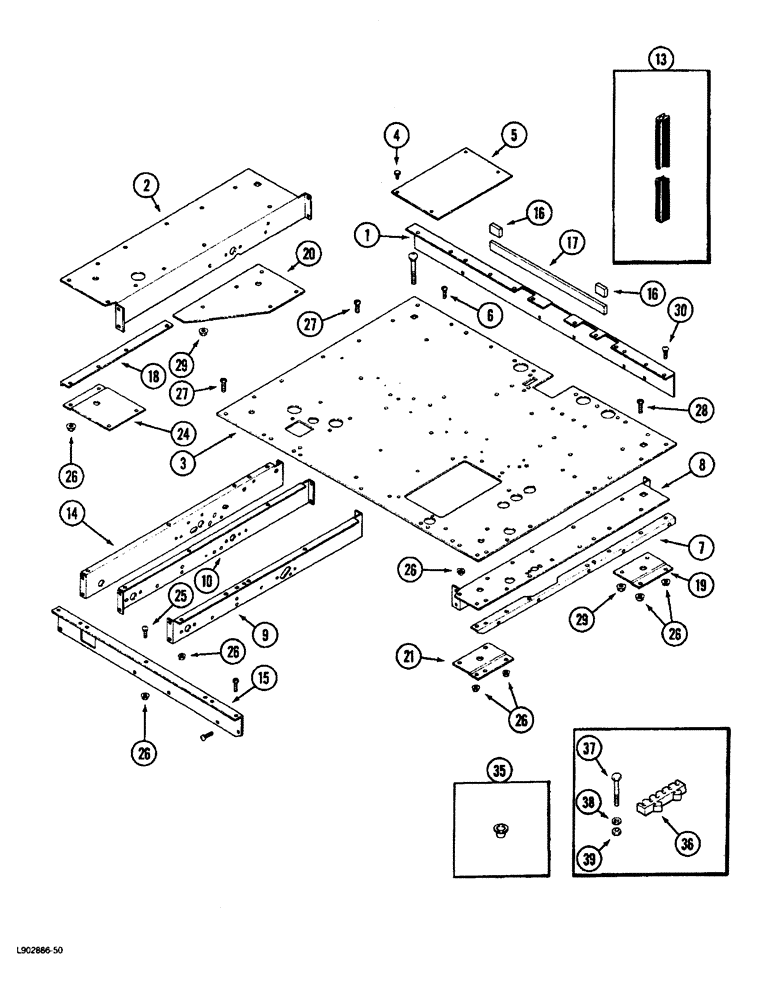

Запчасти Case IH 1822 (9E-30) - OPERATORS PLATFORM (12) - CHASSIS

1

1327564C2

SUPPORT

- operators platform, front

1шт.

2

195520C3

SUPPORT

- operators platform, left

1шт.

3

1321937C4

PLATFORM

PLATE - operators

1шт.

4

276-1478

SELF-TAP SCREW,Hex Hd, 1/4" x 1/2"

- hex head tapping, 1/4 x 1/2 inch

4шт.

5

193029C2

PLATE

- brake access rear

1шт.

6

1330152C1

SCREW,Sl Serr Truss Hd, 5/16" - 18 x 3/4"

11шт.

7

196969C4

SUPPORT

- platform stiffener, right side

1шт.

8

195518C8

SUPPORT

- operators platform, right

1шт.

9

195519C6

SUPPORT

- operators platform, right center

1шт.

10

195521C4

SUPPORT

- operators platform, center

1шт.

14

195557C7

SUPPORT

- operators platform, left center

1шт.

15

195516C4

SUPPORT

- operators platform, rear

1шт.

16

NSS

NOT SOLD SEPARAT

STRIP - cab sill to front support seal (Order 187855C1, Serial Range: cut-length)

2шт.

17

NSS

NOT SOLD SEPARAT

STRIP - cab sill to front support seal (Order 187855C1, Serial Range: cut-length)

1шт.

18

183680C1

ANGLE

BRACKET - platform stiffener, left

1шт.

19

183668C2

PLATE

- platform, right front

1шт.

20

183669C2

PLATE

- platform, left front

1шт.

21

183678C1

PLATE

- platform, right rear

1шт.

24

183679C1

PLATE

- platform, left rear

1шт.

25

598801R1

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

BOLT - round head square neck, 5/16 NC x 1/2 inch

20шт.

26

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch

33шт.

27

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss head, 3/8 NC x 3/4 inch

3шт.

28

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

- slotted truss head, 3/8 NC x 1 inch

6шт.

29

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch

7шт.

30

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

- slotted truss head, 5/16 NC x 1 inch

2шт.

33

NSS

NOT SOLD SEPARAT

EDGE - 12-5/16 inch (Order 196707C1, Serial Range: cut-length)

2шт.

34

NSS

NOT SOLD SEPARAT

EDGE - 16-5/16 inch (Order 196707C1, Serial Range: cut-length)

1шт.

35

1345350C1

PLUG,Cap, .366" OD

- platform plate

2шт.

36

3102155R1

HOLDER

- shear bolt

1шт.

37

424-432

BOLT,Hex, 1/4" - 20 x 2", Gr 2

- hex, 1/4 NC x 2 inch, Grade 2

3шт.

38

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

39

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

3шт.
