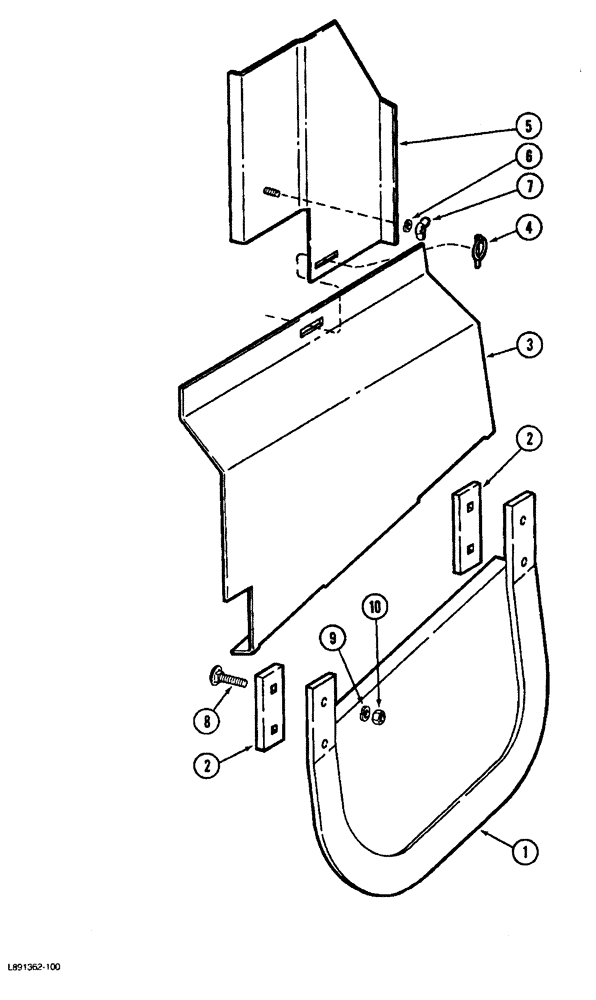

Запчасти Case IH 1822 (9E-28) - TIRE AND MUD SHIELDS (12) - CHASSIS

1

1266379C3

GUARD

SHIELD ASSEMBLY - mud left

1шт.

1

1266380C3

GUARD

SHIELD ASSEMBLY - mud right

1шт.

2

215520C2

LARGE PLATE

BAR - mud blade

4шт.

3

1266384C3

SHIELD

- mud left

1шт.

3

1266385C3

SHIELD

- mud right

1шт.

4

A33497

LINCH PIN,4.76mm OD Pin

PIN ASSEMBLY - klik

2шт.

5

87319C1

SHIELD

ASSEMBLY - mud upper, left

1шт.

5

87320C1

SHIELD

ASSEMBLY - mud upper, right

1шт.

6

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

7

126177

WING NUT

NUT - wing, 1/4 inch NC

2шт.

8

27488R1

BOLT

- round head square neck, 1/2 NC x 3-3/4 inch

8шт.

8

86505993

BOLT,Hex, 1/2" - 13 x 4", Gr 5

8шт.

REF#8 SHOULD READ 111-532 8/29/96

1шт.

9

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

10

129-105

NUT,Hex, 1/2" - 13, Gr 5

8шт.
