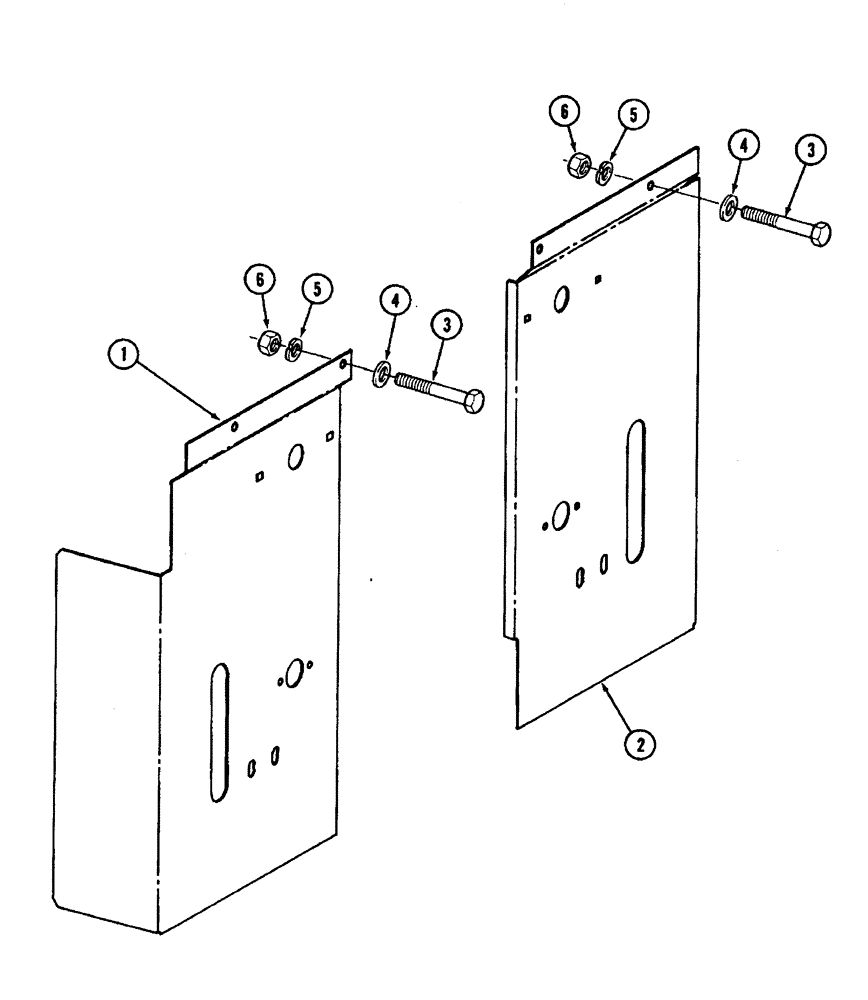

Запчасти Case IH 1822 (9E-26) - CARRIAGE ROLLER SHIELDS (12) - CHASSIS

1

1288880C1

SHIELD

- carriage roller, left

1шт.

2

1288881C1

SHIELD

- carriage roller, right

1шт.

3

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

4

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch

4шт.

5

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

6

9635082

NUT,5/16" - 18, Gr 5

4шт.
