(9E-22) - RIGHT SIDE SCREEN

Запчасти Case IH 1822 (9E-22) - RIGHT SIDE SCREEN (12) - CHASSIS

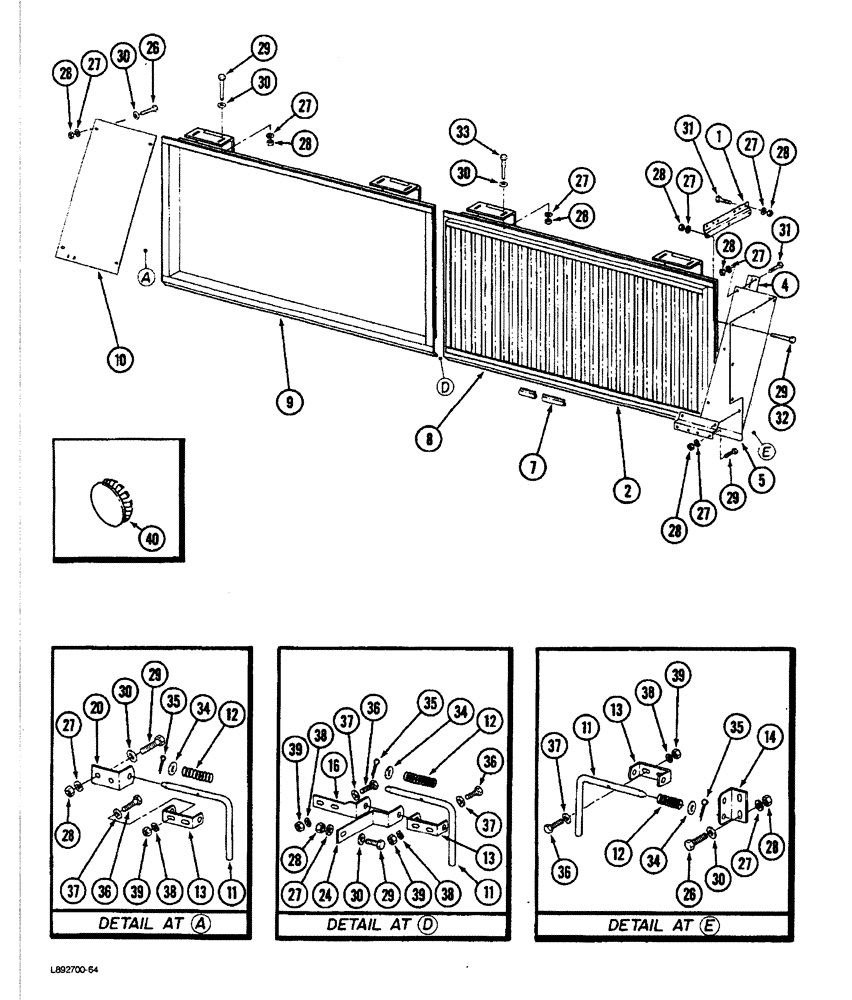

Схема запчастей Case IH 1822 - (9E-22) - RIGHT SIDE SCREEN (12) - CHASSIS
30
11
26
37
27
31
28
27
29
27
39
35
27
13
30
36
29
38
36
40
38
33
27
16
29
28
28
9
12
24
35
39
29
5
34
29
4
39
27
7
28
12
30
27
13
37
27
11
20
26
28
39
10
1
2
35
31
38
37
28
27
13
30
30
27
36
28
28
28
12
11
36
28
34
8
37
38
30
34
32
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1278812C1

SUPPORT

- upper cover

1шт.

2

413-596

BOLT,Hex, 5/16" - 18 x 6", Gr 5

UPPER HINGE BOLT - (replaces 1278813C2) (nut is 94212083)

1шт.

4

1278815C1

BAR

- screen frame, right

1шт.

5

1278928C1

COVER

- rear inner right

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - screen, 165 inch (Order 1263038c1, Serial Range: cut-length)

1шт.

8

1979880C2

CLEANER

ASSEMBLY - side screen, rear

1шт.

9

1979881C1

DOOR ASSY.

CLEANER ASSEMBLY - side screen, front

1шт.

10

1345124C1

COVER

- front side screen (See note A)

1шт.

10

1285210C1

COVER

- front, side screen (See note B)

1шт.

11

1285244C2

PIN

- screen lock

3шт.

12

540815R1

SPRING

- compression

3шт.

13

1285245C1

LARGE PLATE

PLATE - locking pin guide

3шт.

14

1285246C1

BRACKET

- locking pin

1шт.

16

1285248C1

BRACKET

- center locking pin right

1шт.

20

1285250C1

BRACKET

- right front locking pin

1шт.

24

1285339C1

SUPPORT

- center latch

1шт.

26

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

6шт.

27

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

30шт.

28

120376

NUT,5/16"-18, G5

19шт.

29

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 3/4 inch

17шт.

30

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch

14шт.

31

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

4шт.

32

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

1шт.

33

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

4шт.

34

469668R1

WASHER

- flat, 13/32 x 47/64 x 3/64 inch

4шт.

35

132-321

COTTER PIN,3/32" x 1"

PIN, SPLIT (COTTER), 3/32" x 1"

3шт.

36

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

8шт.

37

120392

WASHER,1/4", SAE

- flat, 9/32 x 5/8 x 3/64 inch

8шт.

38

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

8шт.

39

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

8шт.

40

187849

HOLE PLUG BUTTON,1 1/8"

PLUG - button, 1-1/8 inch diameter

1шт.
