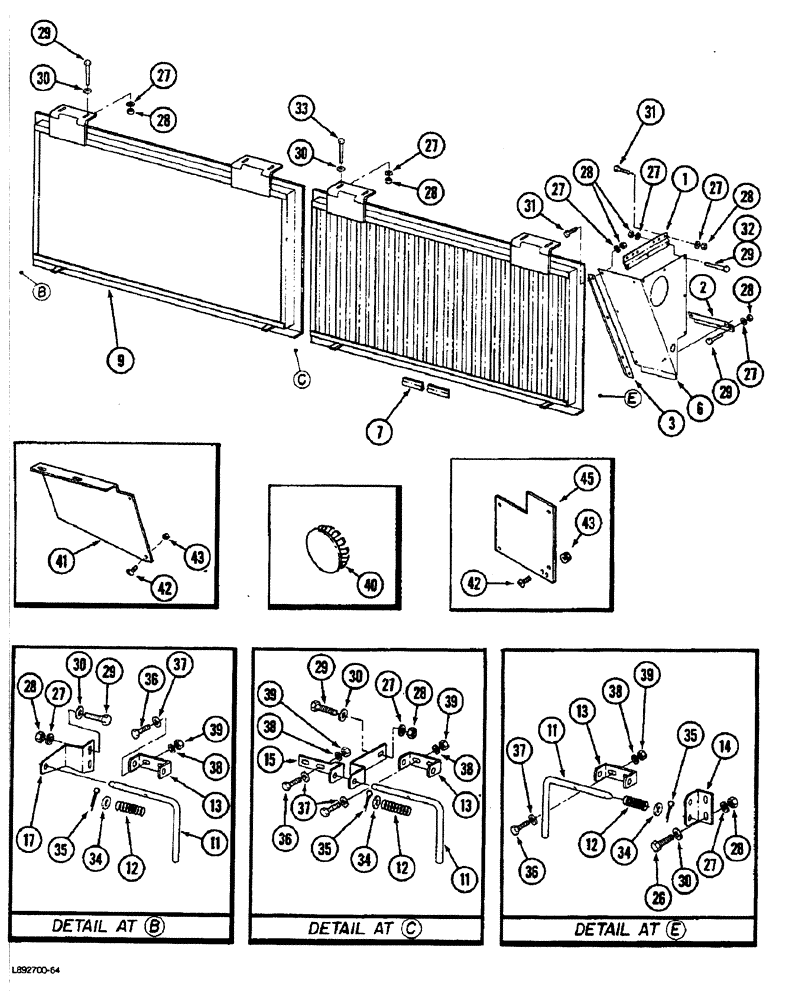

Запчасти Case IH 1822 (9E-20) - LEFT SIDE SCREEN (12) - CHASSIS

1

1278812C1

SUPPORT

- upper cover

1шт.

2

1278813C2

SUPPORT

- lower cover

1шт.

3

1278814C1

BAR

- screen frame, left

1шт.

6

1278927C1

COVER

- rear inner left

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - screen, 165 inch (Order 1263038C1, Serial Range: cut-length)

1шт.

8

1979880C2

CLEANER

ASSEMBLY - side screen, rear

1шт.

9

1345119C1

CLEANER

ASSEMBLY - side screen, front (See note A)

1шт.

9

1979881C1

DOOR ASSY.

CLEANER ASSEMBLY - side screen, front (See note B)

1шт.

ref# 9---if dlr is looking for a 4.72 plug for this hole--part number is 1288895c1.jcl

1шт.

11

1285244C2

PIN

- screen lock

3шт.

12

540815R1

SPRING

- compression

3шт.

13

1285245C1

LARGE PLATE

PLATE - locking pin guide

3шт.

14

1285246C1

BRACKET

- locking pin

1шт.

15

1285247C1

BRACKET

- center locking pin left

1шт.

17

1285249C1

BRACKET

- left front locking pin

1шт.

24

1285339C1

SUPPORT

- center latch

1шт.

27

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

29шт.

28

120376

NUT,5/16"-18, G5

19шт.

29

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 3/4 inch

17шт.

30

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch

14шт.

31

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

4шт.

32

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

1шт.

33

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

4шт.

34

469668R1

WASHER

- flat, 13/32 x 47/64 x 3/64 inch

3шт.

35

132-321

COTTER PIN,3/32" x 1"

PIN, SPLIT (COTTER), 3/32" x 1"

3шт.

36

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

8шт.

37

120392

WASHER,1/4", SAE

- flat, 9/32 x 5/8 x 3/64 inch

8шт.

38

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

8шт.

39

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

8шт.

40

187849

HOLE PLUG BUTTON,1 1/8"

PLUG - button, 1-1/8 inch diameter

1шт.

41

86962C1

PLATE

- lubrication chart mounting (See note B)

1шт.

42

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - slotted truss head, 3/8 x 3/4 inch

2шт.

43

231-1446

NUT,3/8" - 16, Gr 5

NUT LOCK, 3/8"-16, GB

2шт.

45

1345103C1

DECAL

LUBE DECAL - (See note A) (replaces 1345125C1)

1шт.
