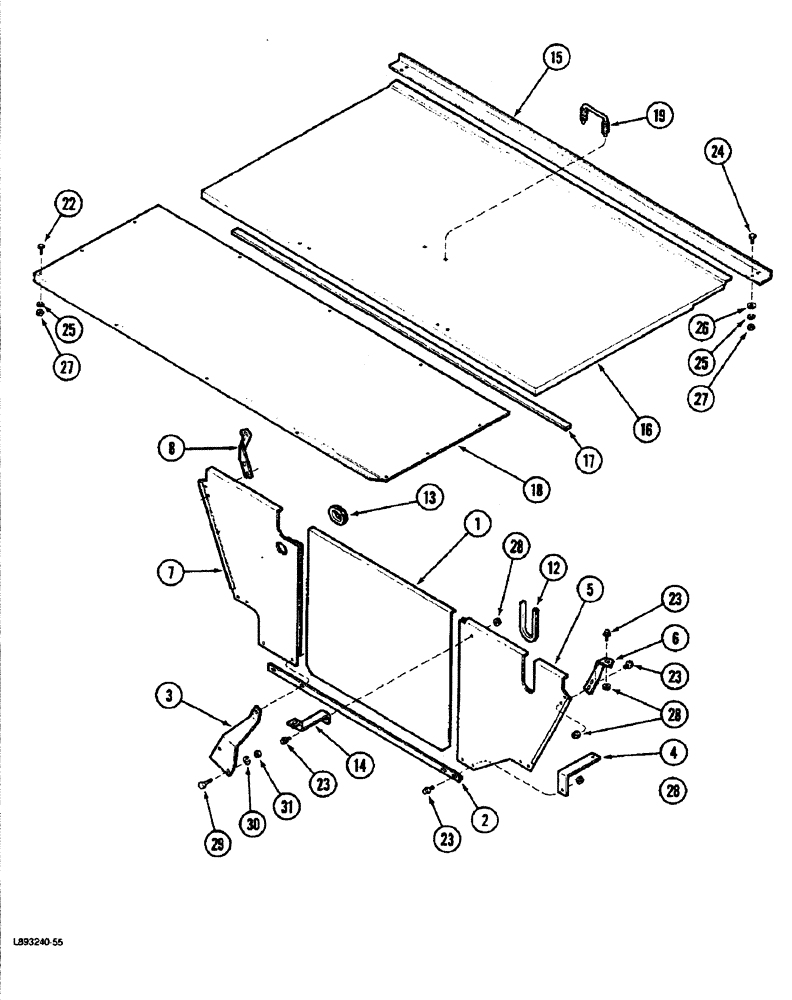

Запчасти Case IH 1822 (9E-18) - ENGINE AND RADIATOR SHIELDS (12) - CHASSIS

1

1982303C1

SHEET

PANEL - shield center

1шт.

2

1982302C3

ANGLE

BRACKET - shield bottom

1шт.

3

1982344C1

SUPPORT

BRACKET - shield support, lower left

1шт.

4

1982345C1

SUPPORT

BRACKET - shield support, lower right

1шт.

5

1982307C3

PANEL

- engine shield, right

1шт.

6

1982301C1

STRAP

- hanger, right (If equipped)

1шт.

7

1982304C4

PANEL

- engine shield, left

1шт.

8

1982300C1

STRAP

- hanger, left (If equipped)

1шт.

12

NSS

NOT SOLD SEPARAT

TRIM - panel edging, 12 inch long (Order 1977224C1, Serial Range: cut-length)

1шт.

13

NSS

NOT SOLD SEPARAT

TRIM - panel edging, 10 inch long (Order 1977224C1, Serial Range: cut-length)

1шт.

14

1982346C1

SUPPORT

BRACKET - shield support, upper center

1шт.

15

1982314C2

ANGLE BAR

BRACKET - hood, front

1шт.

16

1982292C5

DOOR

- front deck

1шт.

17

1982348C1

GASKET

SEAL - shield, upper

1шт.

18

1982297C4

PANEL

- center shield

1шт.

19

1278124C1

HANDLE

- retractable (If equipped)

1шт.

22

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

10шт.

23

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- hex flange lock, 5/16 NC x 3/4 inch

1шт.

24

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

6шт.

25

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

16шт.

26

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch

6шт.

27

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

16шт.

28

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

1шт.

29

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

30

492-11038

LOCK WASHER,3/8"

2шт.

31

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.
