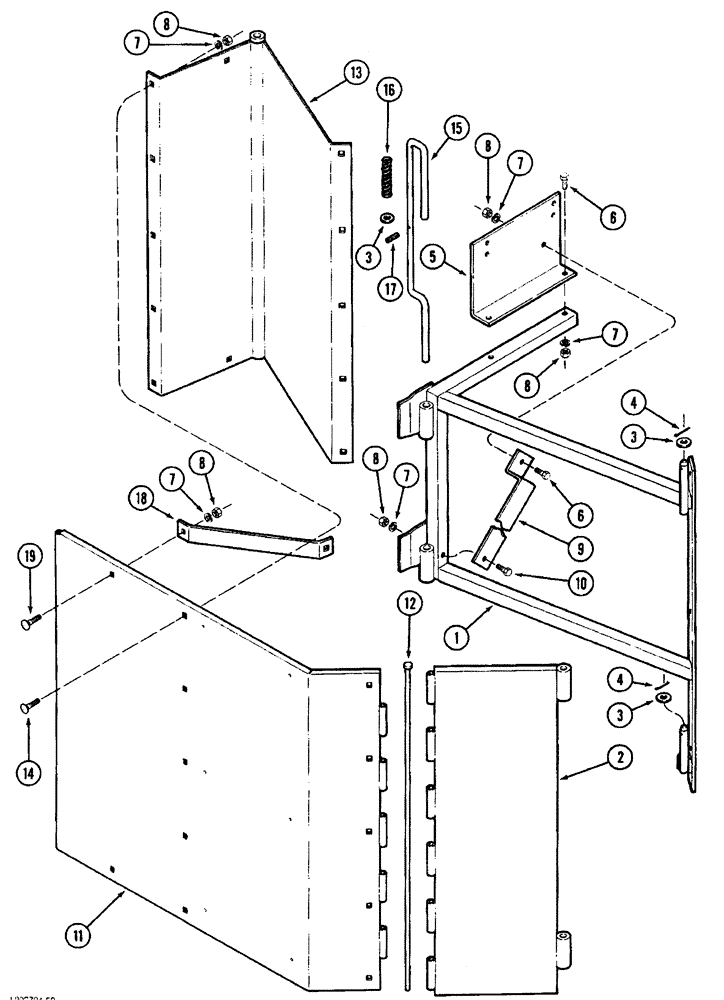

Запчасти Case IH 1822 (9E-12) - WHEEL SHIELDS, 1822 (12) - CHASSIS

1

1338687C1

SUPPORT

FRAME ASSEMBLY - wheel shield, left

1шт.

1

1338688C1

SUPPORT

FRAME ASSEMBLY - wheel shield, right

1шт.

2

1278873C1

SHEET

PANEL ASSEMBLY - wheel shield front, left

1шт.

2

1278874C1

SHEET

PANEL ASSEMBLY - wheel shield front, right

1шт.

3

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64") 1/2", SAE

8шт.

4

A33497

LINCH PIN,4.76mm OD Pin

PIN ASSEMBLY - klik

2шт.

5

1278871C2

ANGLE BAR

BRACKET - channel support, left

1шт.

5

1278872C2

ANGLE BAR

BRACKET - channel support, right

1шт.

6

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

10шт.

7

492-11038

LOCK WASHER,3/8"

34шт.

8

425-106

NUT,3/8"-16, Cl 5

34шт.

9

1278963C1

SUPPORT

BRACE - frame

2шт.

10

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

11

1278884C5

PANEL

- rear wheel, right

1шт.

12

1278880C1

PIN

- hinge

2шт.

13

1278886C4

SUPPORT

ASSEMBLY - wheel shield, left

1шт.

13

1278887C4

SUPPORT

ASSEMBLY - wheel shield, right

1шт.

14

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - round head square neck, 3/8 NC x 3/4 inch

26шт.

15

1278891C1

STEM

ROD - latch

2шт.

16

1278892C1

SPRING

- latch

2шт.

17

20697R1

PIN,1/8" x 1", Coiled

2шт.

18

1345023C1

SUPPORT

- wheel shield panel (Replaces 87561C1)

4шт.

19

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT - round head square neck, 3/8 NC x 1 inch

4шт.

22

396-41041

WASHER,13/32" x 1 1/8" x .134", HDN

- flat, 13/32 x 1-1/8 x 1/8 inch

6шт.

23

326-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

6шт.

24

9413979

LOCK NUT,3/8"-16, GC

NUT - hex lock, 3/8 inch NC, Grade 8

6шт.
