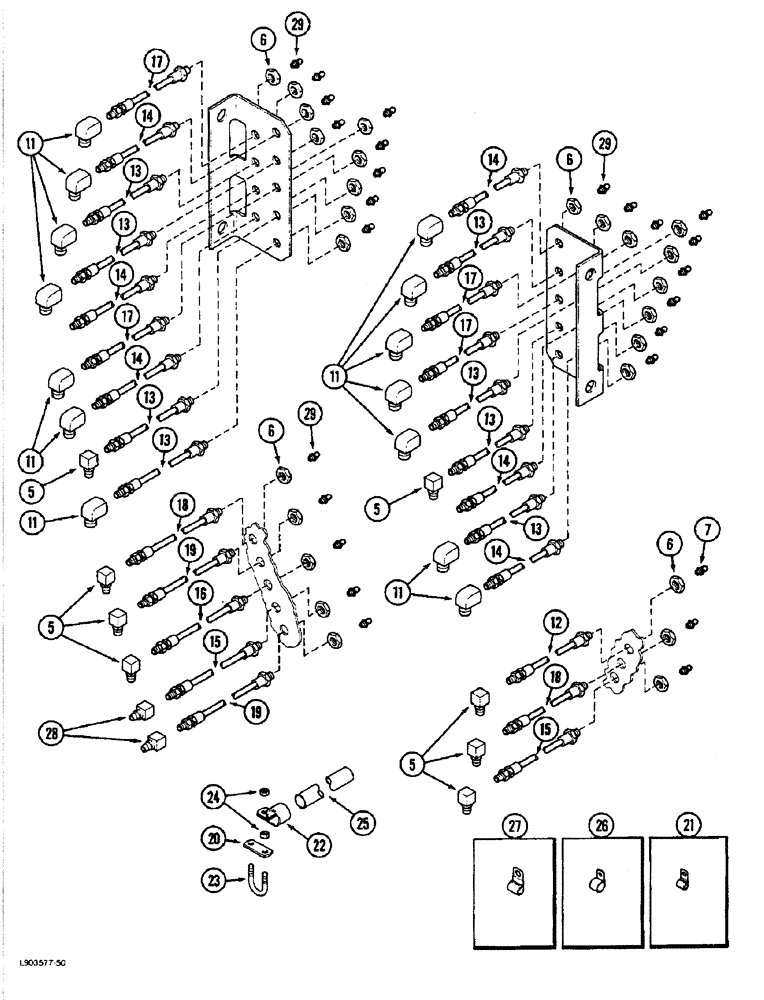

Запчасти Case IH 1822 (9E-04) - CHASSIS GREASE SYSTEM, 1822 COTTON PICKER P.I.N. JJC0012910 AND AFTER (12) - CHASSIS

1

1345099C1

SUPPORT

- grease fitting

2шт.

5

21340R1

ADAPTER,90 Degree, 1/4"-1/8 NPTF

FITTING - grease, 90 degree, 1/4"

3шт.

6

F53473

LOCK NUT,1/8-27 NPSM

- special, 1/8 inch PT

19шт.

11

9409931

ELBOW,90 Degree, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

- 90 degree, 1/8 inch PT

12шт.

13

1345098C1

HOSE

- grease, 60 inch long

4шт.

14

1345096C1

TUBE

HOSE - grease, 23 inch long

6шт.

15

937782R92

HOSE,3.02mm ID x 787mm L

Grease 3.56 mm ID x 787.00 mm

1шт.

16

937781R92

HOSE,3.02mm ID x 686mm L

Grease 3.56 mm ID x 686.00 mm

1шт.

17

1345097C1

HOSE

- grease, 45 inch long

4шт.

18

1339006C1

TUBE,914 mm L

HOSE - grease, 36 inch long

1шт.

19

1339231C1

TUBE,737 mm Length

HOSE - grease, 29 inch long

2шт.

20

1345095C1

LARGE PLATE

STRAP - retaining

4шт.

21

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP - retaining

2шт.

22

92070C1

CLAMP,1 1/4", Insul, 7/16" Bolt

- insulated retaining

4шт.

23

1338145C1

U-BOLT,3/8" - 16 x 41.15mm W x 41.30mm L

- bracket retaining

4шт.

24

425-146

JAM NUT,3/8" - 16, Gr 5

- hex jam, 3/8 inch NC

16шт.

25

1212902C1

INSULATOR

CONDUIT - hose insulation

2шт.

26

T50103

CLAMP

- retaining

2шт.

27

358986R1

CABLE CLIP

CLIP - retaining

2шт.

28

21450R1

ADAPTER,1/4"-1/8 NPTF

FITTING - grease, 1/4 inch

2шт.

29

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

19шт.
