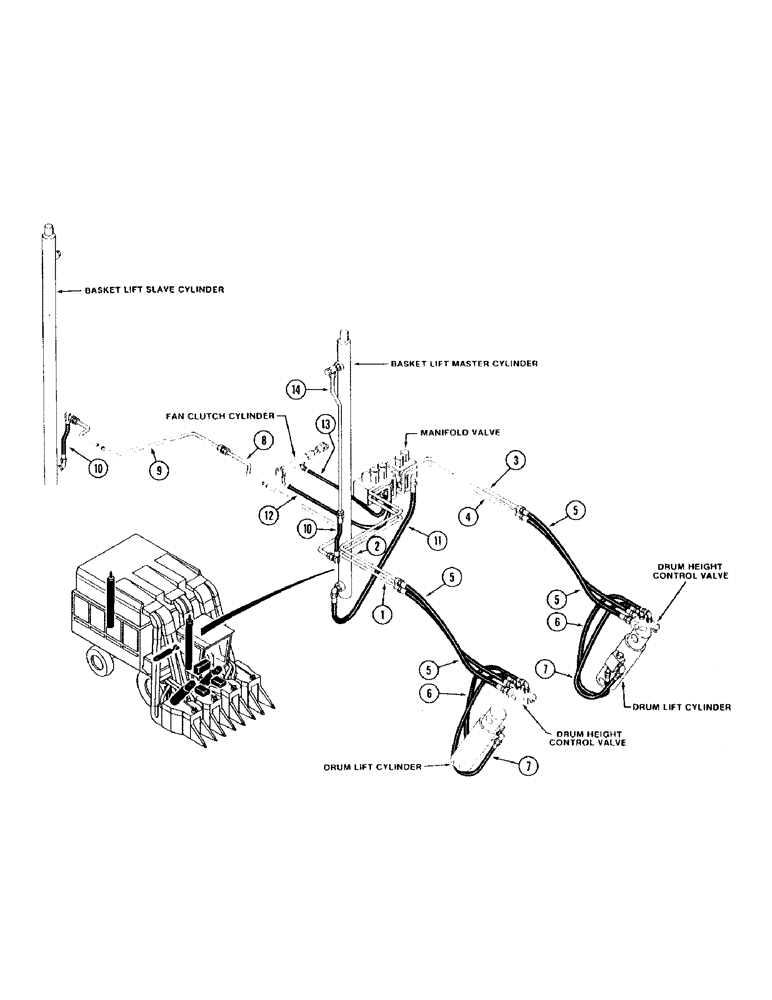

Запчасти Case IH 1822 (1-16) - PICTORIAL INDEX DRUM, BASKET LIFT AND FAN CLUTCH HYDRAULIC (00) - PICTORIAL INDEX
9
5
7
10
5
5
4
6
11
1
2
6
5
7
13
14
3
12
8
10
№
Артикул
Название
Примечание
Количество
1
Right Drum Manual Supply Tube, Page 8-27
1шт.
2
Right Drum Automatic Supply Tube, Page 8-27
1шт.
3
Left Drum Automatic Supply Tube, Page 8-27
1шт.
4
Left Drum Manual Supply Tube, Page 8-27
1шт.
5
Drum Height Control Valve Supply Hose, Page 8-27
1шт.
6
Pilot Valve Pressure, Page 8-27
1шт.
7
Drum Lift Cylinder Hose, Page 8-27
1шт.
8
Basket Lift Slave First Tube, Page 8-45
1шт.
9
Basket Lift Slave Second Tube, Page 8-45
1шт.
10
Basket Lift Cylinder Hose, Page 8-45
1шт.
11
Basket Lift Hose, Page 8-45
1шт.
12
Fan Clutch Cylinder Engage Hose, Page 8-41
1шт.
13
Fan Clutch Cylinder Disengage Hose, Page 8-41
1шт.
14
Basket Lift Cylinder Slave Port Tube, Page 8-45
1шт.
Выбрано товаров: 14
