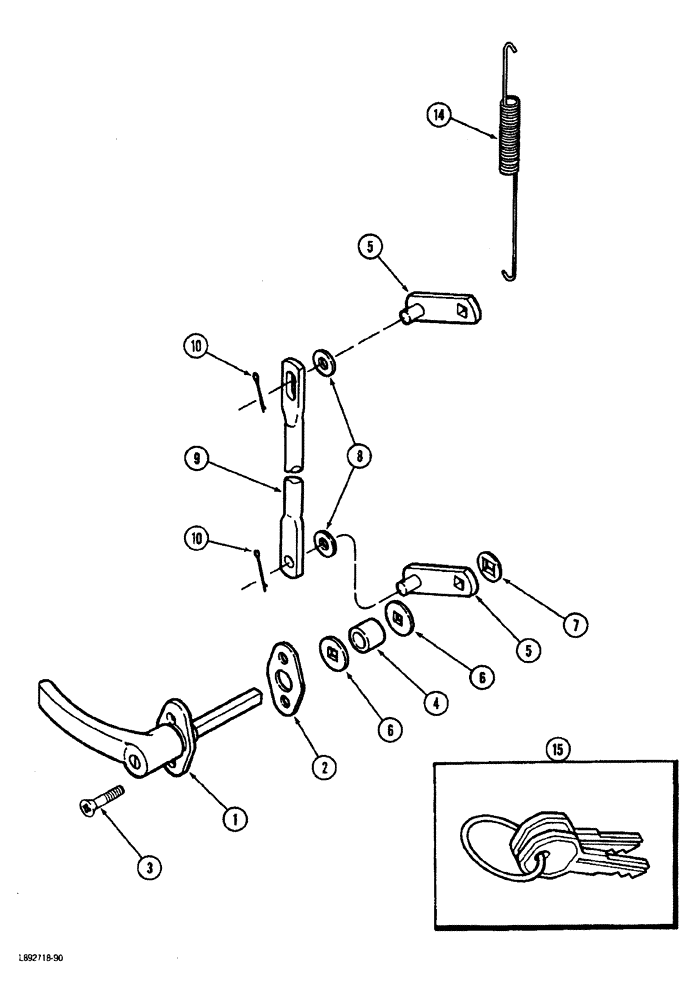

Запчасти Case IH 1822 (9D-16) - CAB DOOR LOWER HANDLE, 1822 COTTON PICKER (10) - CAB & AIR CONDITIONING

1329479C1

LOCKING HANDLE

HANDLE ASSEMBLY - door lower

1шт.

1

NSS

NOT SOLD SEPARAT

HANDLE - non-locking

1шт.

2

NSS

NOT SOLD SEPARAT

GASKET - door handle

1шт.

3

489-11012

SCREW,Cross Oval Hd, #10"-32 x 3/4"

- machine, No. 10-32 x 3/4 inch

2шт.

4

363082R1

SPACER,3/8" Pipe x .656"

- pipe, 3/8 x 21/32 inch

1шт.

5

1329445C1

ARM

- latch

2шт.

6

1329446C1

SQ HOLE WASHER

- brass, 3/8 3 inch

3шт.

7

1329447C1

SPRING WASHER

- spring

1шт.

8

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

9

1329448C3

LINK

ROD - linkage

1шт.

10

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

2шт.

14

1338869C1

SPRING

- compressor tension

1шт.

15

1970178C1

SET OF 2 KEYS

KEY - lock, door (Set of 2)

1шт.
