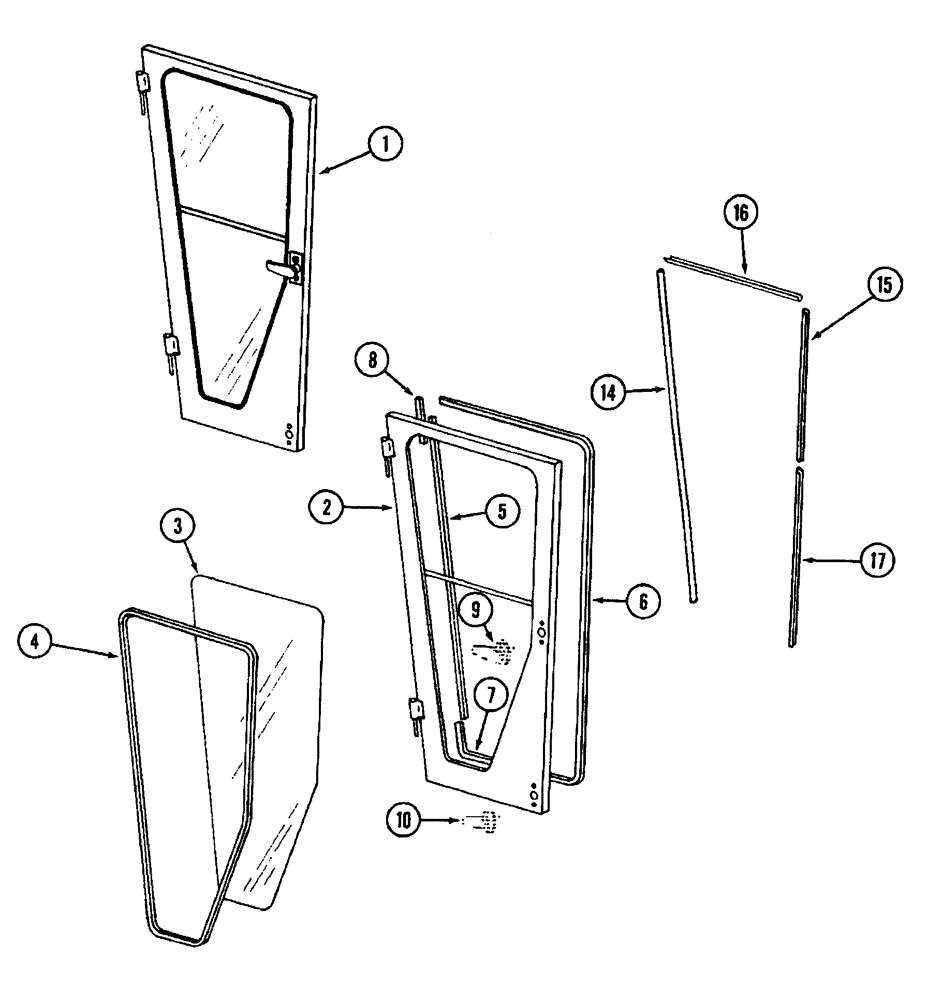

Запчасти Case IH 1822 (9D-14) - CAB DOOR (10) - CAB & AIR CONDITIONING

1

1329477C1

DOOR

ASSEMBLY - cab

1шт.

2

NSS

NOT SOLD SEPARAT

DOOR - cab

1шт.

3

198184C1

GLASS

- door

1шт.

4

NSS

NOT SOLD SEPARAT

STRIP - door glass, 130-1/2 inch (Order 198131C1, Serial Range: cut-length)

1шт.

5

NSS

NOT SOLD SEPARAT

STRIP - door front, 52 inch (See Note A)

1шт.

6

NSS

NOT SOLD SEPARAT

STRIP - door rear, 99 inch (See Note A)

1шт.

7

NSS

NOT SOLD SEPARAT

STRIP - door bottom, 19 inch (See Note A)

1шт.

8

NSS

NOT SOLD SEPARAT

STRIP - door top front corner, 3-5/16 inch (See Note A)

1шт.

9

REF

INSTRUCTION

HANDLE ASSEMBLY - door upper (See Page 9D-19)

1шт.

10

REF

INSTRUCTION

HANDLE ASSEMBLY - door lower (1822 only)(See Page 9D-17)

1шт.

14

NSS

NOT SOLD SEPARAT

STRIP - cab door opening front, 4 inch (See Note B)

1шт.

15

NSS

NOT SOLD SEPARAT

STRIP - cab door opening rear upper, 24 inch (See Note B)

1шт.

16

NSS

NOT SOLD SEPARAT

STRIP - cab door opening top, 26 inch (See Note B)

1шт.

17

NSS

NOT SOLD SEPARAT

STRIP - cab door opening rear lower, 27 inch (See Note B)

1шт.
