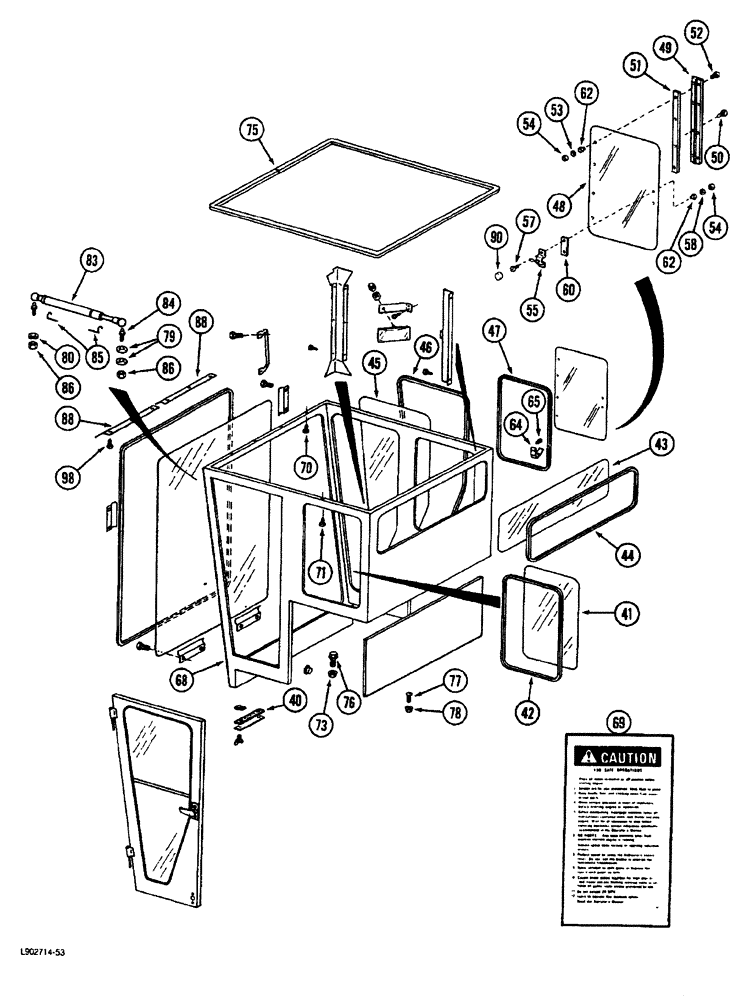

Запчасти Case IH 1822 (9D-12) - CAB FRAME (10) - CAB & AIR CONDITIONING

40

NSS

NOT SOLD SEPARAT

STRIP - clean out door seal, 9-11/16 inch (Order 1300025C1, Serial Range: cut-length)

1шт.

41

198244C1

GLASS

- left rear

1шт.

42

NSS

NOT SOLD SEPARAT

STRIP - cab left rear glass, 87 inch (Order 198131C2, Serial Range: cut-length)

1шт.

43

198247C1

GLASS

- cab rear

1шт.

44

NSS

NOT SOLD SEPARAT

STRIP - cab rear glass, 123 inch (Order 198131C1, Serial Range: cut-length)

1шт.

45

198184C1

GLASS

- cab right front

1шт.

46

NSS

NOT SOLD SEPARAT

STRIP - cab right front glass, 130 inch (Order 198131C2, Serial Range: cut-length)

1шт.

47

109594C1

SEAL

STRIP - right window weather

1шт.

48

1987172C1

GLASS

- right rear window (Replaces 1283343C1)

1шт.

49

1301233C2

HINGE

- right rear window

1шт.

50

261-6458

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW - self-tapping, pan Phillips, No. 10 NF x 1/2 inch

4шт.

51

1301234C1

STRIP

SHIM - hinge, right rear window

1шт.

52

440-11010

SCREW,Phillips Drive, Pan HD, #10 - 24 x 5/8"

- machine, pan head Phillips, No. 10 NC x 5/8 inch

4шт.

53

495-31022

WASHER,#10

4шт.

54

196922C1

LOCK NUT

- window lock

8шт.

55

1987200C1

HANDLE

ASSEMBLY - right rear window lock (Replaces 170404C1)

2шт.

57

440-11012

SCREW,Cross Pan Hd, #10-24 x 3/4"

- machine, pan head Phillips, No. 10 NC x 3/4 inch

4шт.

58

495-31022

WASHER,#10

4шт.

60

183585C1

STRIP

SHIM - right rear window

2шт.

62

896274C1

BUSHING

- window retainer cushion

8шт.

64

1281761C2

SPRING

- window latch

1шт.

65

1276100C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

SCREW - pan head slotted lock, No. 10-16 x 3/8 inch

2шт.

68

NSS

NOT SOLD SEPARAT

BOTTOM - cab (Order 1330154C92, cab assembly)

1шт.

69

2753929R5

DECAL

- caution, safe operation

1шт.

70

1327768C1

SELF-TAP SCREW,Hex Wshr Hd, 5/16" - 18 x 38mm

- self tap, 5/16 inch

10шт.

71

1327545C1

SELF-TAP SCREW,Hex Wshr Hd, 5/16" - 18 x 32mm

- self tap, 5/16 inch

4шт.

73

1329797C1

PLUG

- tube, rubber

1шт.

75

NSS

NOT SOLD SEPARAT

STRIP - body to headliner joint sea, 220 inch (Order 182747C1, Serial Range: cut-length)

1шт.

76

1330146C1

BOLT,Hex Wshr Hd, 3/8" - 16 x 1 1/2"

- hex washer, 3/8 NC x 1-1/2 inch

2шт.

77

837875R1

SCREW - sloned truss, 1/4 NC x 3/4 inch

3шт.

78

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex flanged lock, 1/4 inch NC

3шт.

79

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch

2шт.

80

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

83

1280157C1

GAS STRUT

GAS SPRING - door control

1шт.

84

F44882

BALL

STUD - ball

2шт.

85

1304647C1

CLIP

- retainer

2шт.

86

131-1215

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

2шт.

88

1288548C1

ANGLE BAR

DEFLECTOR - light

2шт.

89

24373R1

SCREW

- pan head cross recess tapping, No. 8-18 x 1/4 inch

6шт.

90

196926C1

END FITTING

GRIP - window lock bolt cap (If equipped)

2шт.
