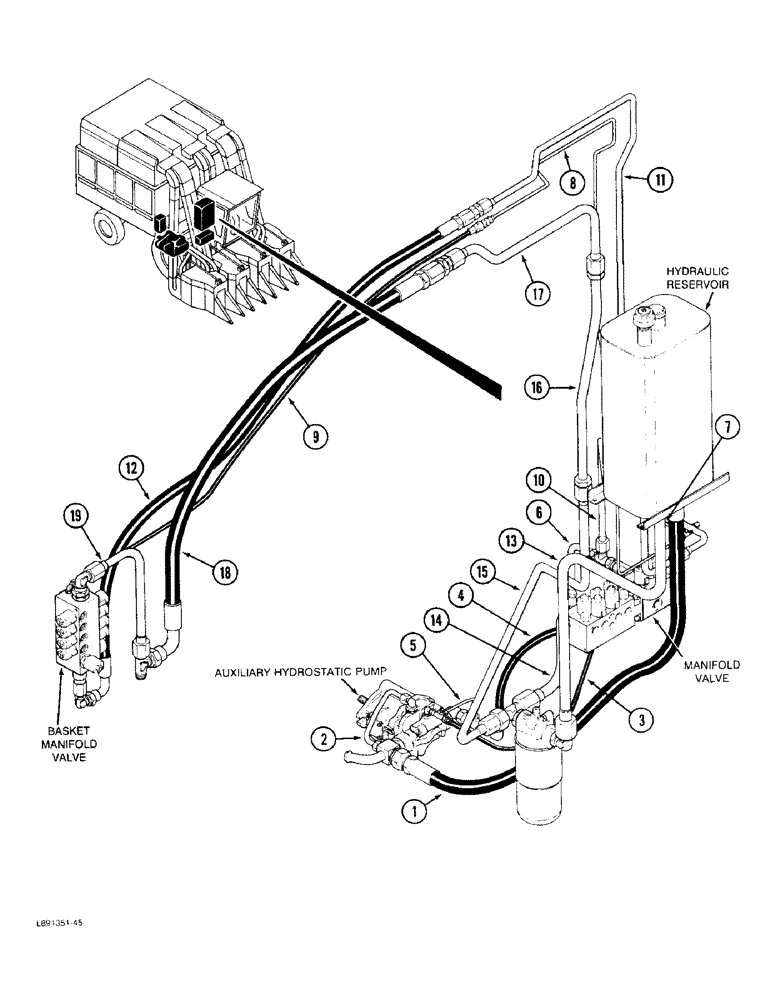

Запчасти Case IH 1822 (1-14) - PICTORIAL INDEX MANIFOLD VALVE HYDRAULIC SYSTEM (00) - PICTORIAL INDEX

1

Auxiliary Pump Supply Hose (1822 Cotton Picker), Page 8-13

1шт.

1

Auxiliary Pump Supply Tube (1822 Cotton Picker), Page 8-13

1шт.

1

Auxiliary Pump Supply Hose (1844 Cotton Picker), Page 8-15

1шт.

2

Case Drain Tube, Page 8-13, 8-15

1шт.

3

Manifold Valve Sense Hose, Page 8-25

1шт.

4

Pump Pressure Hose, Page 8-25

1шт.

5

Supercharge Tube, Page 8-25

1шт.

6

Manifold Valve Supply Tube, Page 8-25

1шт.

7

Basket Sense Lower Tube, Page 8-59, 8-61

1шт.

8

Basket Sense Intermediate Tube (1822 Cotton Picker), Page 8-59

1шт.

8

Basket Sense Intermediate Tube (1844 Cotton Picker), Page 8-61

1шт.

9

Basket Sense Hose, Page 8-59, 8-61

1шт.

10

Basket Supply Lower Tube, Page 8-59, 8-61

1шт.

11

Basket Supply Intermediate Tube (1822 Cotton Picker), Page 8-59

1шт.

11

Basket Supply Intermediate Tube (1844 Cotton Picker), Page 8-61

1шт.

12

Basket Supply Hose, Page 8-59, 8-61

1шт.

13

Filter Inlet Tube (1822 Cotton Picker), Page 8-7

1шт.

13

Filter Inlet Tube (1844 Cotton Picker), Page 8-9

1шт.

14

Valve Tank Tube, Page 8-79, 8-81

1шт.

15

Basket Tank Lower Tube (1822 Cotton Picker), Page 8-79

1шт.

15

Basket Tank Lower Tube (1844 Cotton Picker), Page 8-81

1шт.

16

Basket Tank Intermediate Tube (1844 Cotton Picker), Page 8-81

1шт.

17

Basket Tank Upper Tube, Page 8-79, 8-81

1шт.

18

Basket Tank Hose, Page 8-79, 8-81

1шт.

19

Basket Tank Tube, Page 8-71

1шт.
