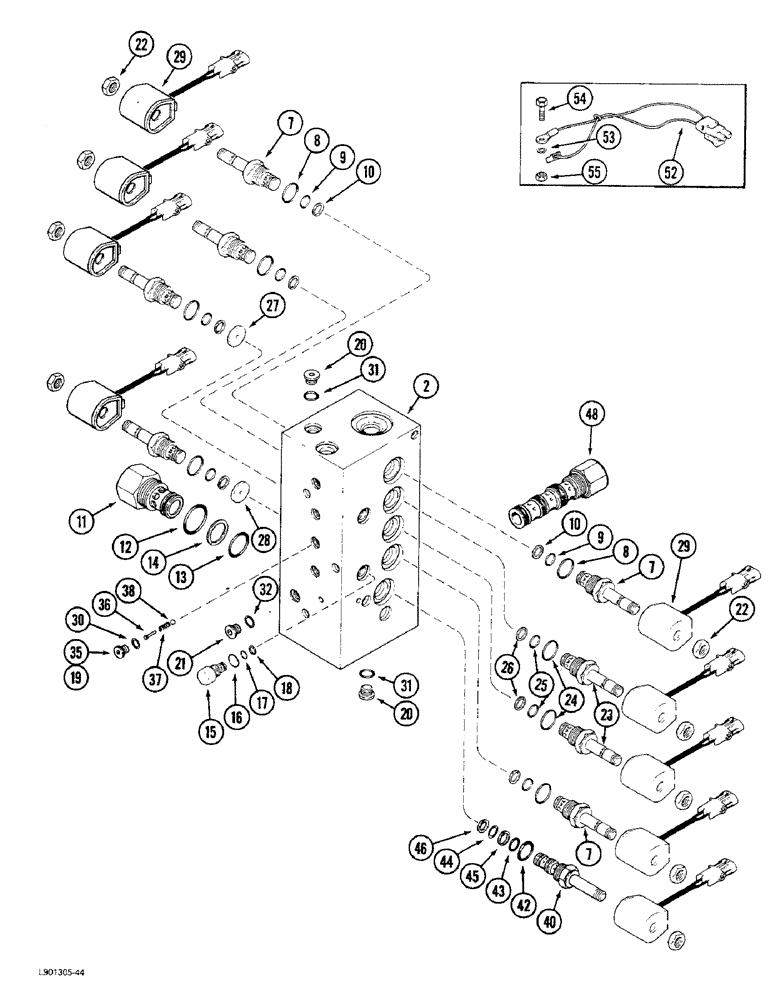

Запчасти Case IH 1822 (8-64) - BASKET MANIFOLD VALVE (07) - HYDRAULICS

1341926C1

VALVE

ASSEMBLY - basket manifold

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

7

1288972C1

SOLENOID VALVE

VALVE - two way solenoid

6шт.

149942C1

SEAL KIT

KIT - seal

6шт.

8

NSS

NOT SOLD SEPARAT

O-RING - solenoid

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING - solenoid

1шт.

10

NSS

NOT SOLD SEPARAT

WASHER - backup

1шт.

11

1288966C1

VALVE

- flow control

1шт.

1288954C1

SEAL KIT

KIT - seal

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING - flow control valve

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING - flow control valve

1шт.

14

NSS

NOT SOLD SEPARAT

WASHER - backup

1шт.

15

87227C1

VALVE

- check

2шт.

149942C1

SEAL KIT

KIT - seal

2шт.

16

NSS

NOT SOLD SEPARAT

O-RING - check valve

1шт.

17

NSS

NOT SOLD SEPARAT

O-RING - check valve

1шт.

18

NSS

NOT SOLD SEPARAT

WASHER - backup

1шт.

19

1288962C1

PLUG

- hex, socket, 1/4 inch tube

5шт.

20

1288963C1

PLUG

- hex socket, 3/8 inch tube

2шт.

21

224582C1

PLUG

- hex socket, 1/2 inch tube

4шт.

22

9403292

LOCK NUT,Blkhd, 1/2"-20

NUT - bulkhead union, 5/16 inch NC

9шт.

23

87252C1

SOLENOID VALVE

VALVE - two way solenoid (SV2 stamped on hex)

2шт.

149942C1

SEAL KIT

KIT - seal

2шт.

24

NSS

NOT SOLD SEPARAT

O-RING - solenoid

1шт.

25

NSS

NOT SOLD SEPARAT

O-RING - solenoid

1шт.

26

NSS

NOT SOLD SEPARAT

WASHER - backup

1шт.

27

1288973C1

LARGE PLATE

DISC - orifice, 1/8 inch

1шт.

28

1288974C1

LARGE PLATE

DISC - orifice

1шт.

29

1340843C1

SOLENOID,12V

SOLENOID - valve coil

9шт.

30

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

5шт.

32

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

4шт.

1341811C1

SPRING-CHECK

KIT - sense check

5шт.

35

NSS

NOT SOLD SEPARAT

PLUG - check sense

1шт.

36

NSS

NOT SOLD SEPARAT

GUIDE - check sense

1шт.

37

NSS

NOT SOLD SEPARAT

SPRING - check sense

1шт.

38

NSS

NOT SOLD SEPARAT

BALL - check sense

1шт.

40

1340875C1

VALVE

- three way solenoid

1шт.

1260872C91

SEAL KIT

KIT - solenoid valve seal

1шт.

42

NSS

NOT SOLD SEPARAT

O-RING - solenoid valve

1шт.

43

NSS

NOT SOLD SEPARAT

O-RING - solenoid valve

1шт.

44

NSS

NOT SOLD SEPARAT

O-RING - solenoid valve

1шт.

45

NSS

NOT SOLD SEPARAT

WASHER - o-ring backup

1шт.

46

NSS

NOT SOLD SEPARAT

WASHER - o-ring backup

1шт.

48

1340838C1

PILOT VALVE

VALVE - pilot operated three way

1шт.

1345300C1

KIT

- solenoid coil

1шт.

1340843C1

SOLENOID,12V

SOLENOID - valve coil (See ref. 29)

1шт.

52

1345302C1

WIRE HARNESS

HARNESS - solenoid adapter

1шт.

53

493-11039

LOCK WASHER,3/8", Int-Ext Tooth

WASHER - internal-external tooth lock, 3/8 inch

1шт.

54

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

1шт.

55

425-106

NUT,3/8"-16, Cl 5

1шт.

31

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

2шт.
