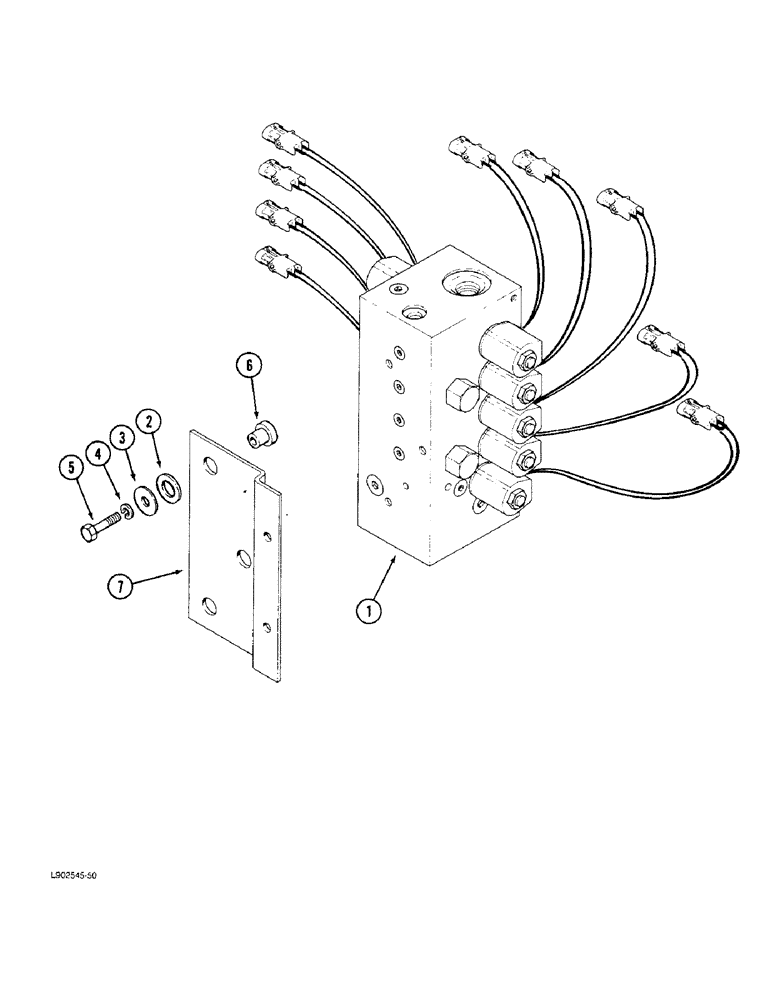

Запчасти Case IH 1822 (8-62) - BASKET MANIFOLD VALVE MOUNTING (07) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - basket manifold (See page 8-65)

1шт.

2

Q1552

WASHER

- flat, 25/32 x 1-1/4 x 1/8 inch

4шт.

3

614452R1

WASHER

- flat, 13/32 x 1-1/4 x 3/32 inch

3шт.

4

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

5

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

3шт.

6

196504C1

BUSHING

- isomount

3шт.

7

1282455C1

SUPPORT

BRACKET - valve mounting

1шт.
