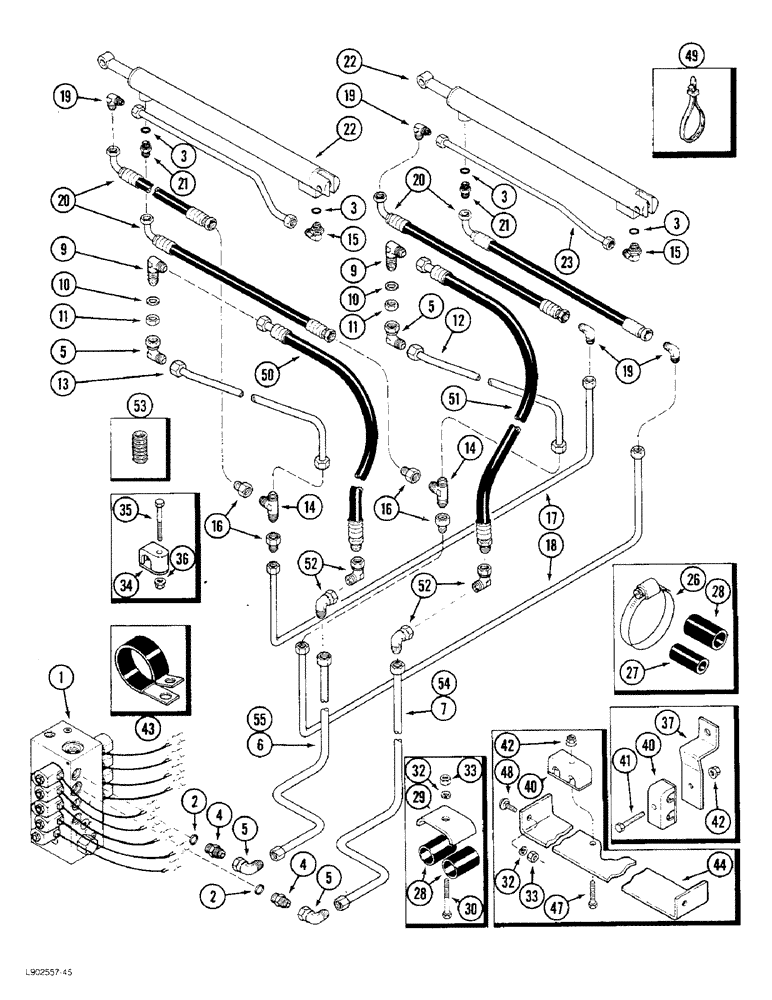

Запчасти Case IH 1822 (8-54) - COMPACTOR CYLINDER SYSTEM, 1822 COTTON PICKER (07) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - basket manifold (See page 8-65)

1шт.

2

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 5/8 inch OD tube

2шт.

3

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 inch OD tube

4шт.

4

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - short swivel, 5/8 inch OD tube

2шт.

5

9410282

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

- 90 degree swivel, 5/8 inch OD tube

4шт.

6

1982336C1

HYD TUBE

TUBE - compactor lower, first (See note B)

1шт.

7

1982335C1

HYD TUBE

TUBE - compactor raise, first (See note B)

1шт.

9

470783R1

ELBOW

- bulkhead

2шт.

10

615196R1

WASHER

- flat, 29/32 x 1-3/4 x 7/64 inch

2шт.

11

9403295

BHD LOCK NUT,Blkhd, 7/8"-14

NUT - bulkhead union lock, 5/8 inch OD tube

2шт.

12

1266222C2

TUBE

ASSEMBLY - compactor raise, second

1шт.

13

1266223C2

TUBE

ASSEMBLY - compactor lower, second

1шт.

14

9402983

TEE,7/8"-14, 37 Degree

- three way, 5/8 inch OD tube

2шт.

15

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

- 90 degree adjustable, 1/2 inch OD tube

2шт.

16

386624R1

REDUCER,37 Degree, 7/8"-14, Fem x 3/4"-16 Male

ADAPTER - reducer

4шт.

17

1266201C2

TUBE

ASSEMBLY - compactor lower, third

1шт.

18

1266200C2

TUBE

ASSEMBLY - compactor raise, third

1шт.

19

9402943

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree

UNION - elbow, 1/2 OD inch tube, 90 degree

4шт.

20

1285374C3

HOSE

- compactor cylinder

4шт.

21

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR - short swivel, 1/2 inch OD tube

2шт.

22

REF

INSTRUCTION

CYLINDER ASSEMBLY - basket compactor (See page 8-67)

1шт.

23

1285293C3

TUBE

ASSEMBLY - compactor cylinder

2шт.

26

214-263

HOSE CLAMP,#48, 2.56" - 3.5", Type F Worm

CLAMP - hose retaining

2шт.

27

163491C1

RUBBER INSULATOR

STRIP - tube clamp, 1/2 inch

2шт.

28

163493C1

STRIP,19.05mm ID x 25.4mm OD x 45.7mm L

- tube clamp, 3/4 inch

4шт.

29

165601C1

CLAMP

- tube retaining

1шт.

30

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

32

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

33

120377

NUT,3/8" - 16, Gr 5

2шт.

34

183822C1

CLAMP

- tube retaining

2шт.

35

113-46

BOLT,Hex, 1/4" - 20 x 2-3/4", Gr 5

- hex, 1/4 NC x 2-3/4 inch

1шт.

36

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex flange, 1/4 inch NC

2шт.

37

1288818C1

SUPPORT

BRACKET - tube support

2шт.

40

1301178C1

CLAMP

- tube retaining

4шт.

41

113-17

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

2шт.

42

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex flange, 1/4 inch NC

5шт.

43

28009R1

CLAMP

- closed

2шт.

44

87697C1

BRACKET

- compactor tube support

2шт.

47

113-5

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

Hex, 1/4"- 20 x 1 1/2", G5

2шт.

48

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT - round head square neck, 3/8 NC x 1 inch

4шт.

49

306132C1

CABLE TIE,14.5" L

STRAP - retaining 14 in

4шт.

50

1285498C1

HOSE

- compactor supply, lower

1шт.

51

1285497C1

HOSE

- compactor supply, raise

1шт.

52

9410282

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

- 90 degree swivel, 7/8-14 inch flared

4шт.

53

1212902C1

INSULATOR

CONDUIT - hose insulation

2шт.

54

1345006C1

TUBE

- compactor raise, first (See note A)

1шт.

55

1345007C1

TUBE

- compactor lower, first (See note A)

1шт.
