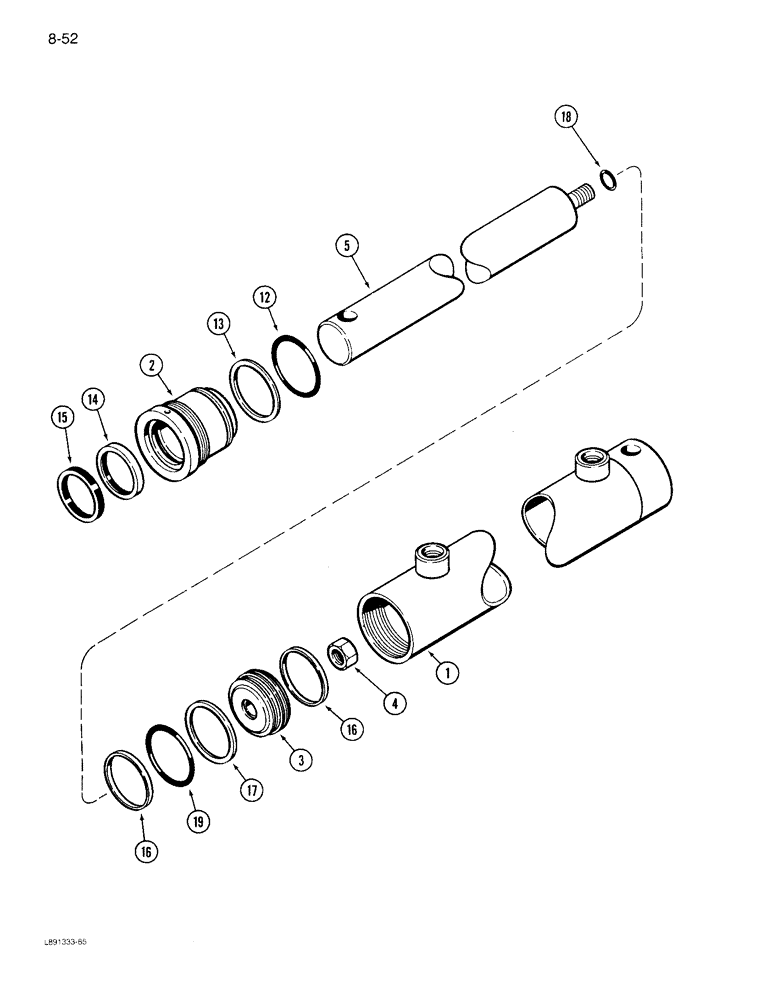

Запчасти Case IH 1822 (8-52) - BASKET LIFT MASTER CYLINDER (07) - HYDRAULICS

85183C1

CYLINDER ASSY.

CYLINDER ASSEMBLY - lift, 3-1/2 x 72 inch

1шт.

1

NSS

NOT SOLD SEPARAT

BODY ASSEMBLY - cylinder (Order 85183C1)

1шт.

2

1957766C1

CYLINDER END CAP

HEAD - cylinder, front

1шт.

3

1957765C1

JACK PISTON

PISTON - cylinder

1шт.

4

20268R1

LOCK NUT,7/8"-14, GC

NUT - lock, 7/8 inch NF

1шт.

5

NSS

NOT SOLD SEPARAT

ROD - piston

1шт.

1957767C1

SEAL KIT

KIT - repair, cylinder

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING - cylinder sealing

1шт.

13

NSS

NOT SOLD SEPARAT

RING - backup

1шт.

14

NSS

NOT SOLD SEPARAT

U-CUP - cylinder

1шт.

15

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

16

NSS

NOT SOLD SEPARAT

RING - wear

2шт.

17

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

18

NSS

NOT SOLD SEPARAT

O-RING - cylinder sealing

1шт.

19

NSS

NOT SOLD SEPARAT

EXPANDER - cylinder

1шт.
