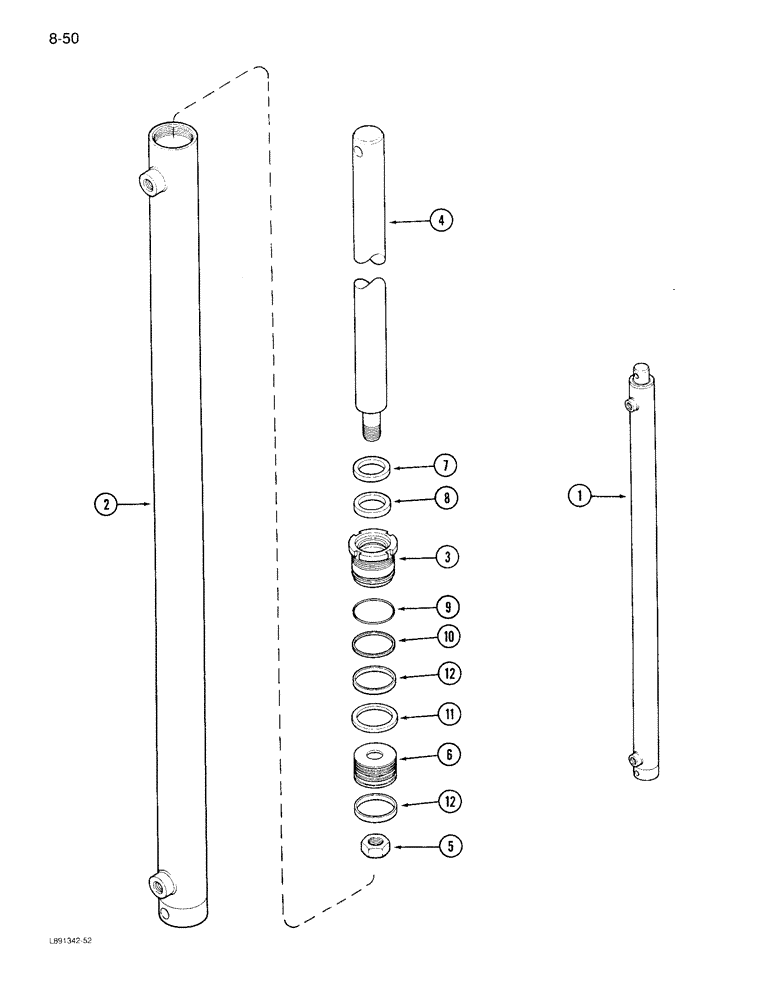

Запчасти Case IH 1822 (8-50) - BASKET LIFT MASTER CYLINDER (07) - HYDRAULICS

1

1282276C92

CYLINDER ASSY.,Double Acting, 63.5mm Rod, 1828.8mm Stroke

CYLINDER ASSEMBLY - lift, 3-1/2 x 72 inch

1шт.

2

NSS

NOT SOLD SEPARAT

BODY ASSEMBLY - cylinder

1шт.

3

1286338C1

CYLINDER END CAP

HEAD - front

1шт.

4

1286336C1

PISTON ROD

ROD - piston

1шт.

5

27137R1

LOCK NUT,1 1/4"-12, GC

NUT - hex lock, 1-1/4 inch NF, Grade 8

1шт.

6

1286337C1

JACK PISTON

PISTON - cylinder

1шт.

7

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Part of O-Ring and seal service kit P/N 1282390C1

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL - piston rod U-cap

1шт.

Part of O-Ring and seal service kit P/N 1282390C1

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING - front head

1шт.

Part of O-Ring and seal service kit P/N 1282390C1

1шт.

10

NSS

NOT SOLD SEPARAT

WASHER - o-ring backup

1шт.

Part of O-Ring and seal service kit P/N 1282390C1

1шт.

11

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

Part of O-Ring and seal service kit P/N 1282390C1

1шт.

12

NSS

NOT SOLD SEPARAT

RING - wear

2шт.

Part of O-Ring and seal service kit P/N 1282390C1

1шт.

1282390C1

SEAL KIT

KIT - o-ring and seal service, Includes: Ref. 7, 8, 9, 10, 11 and 12

1шт.
