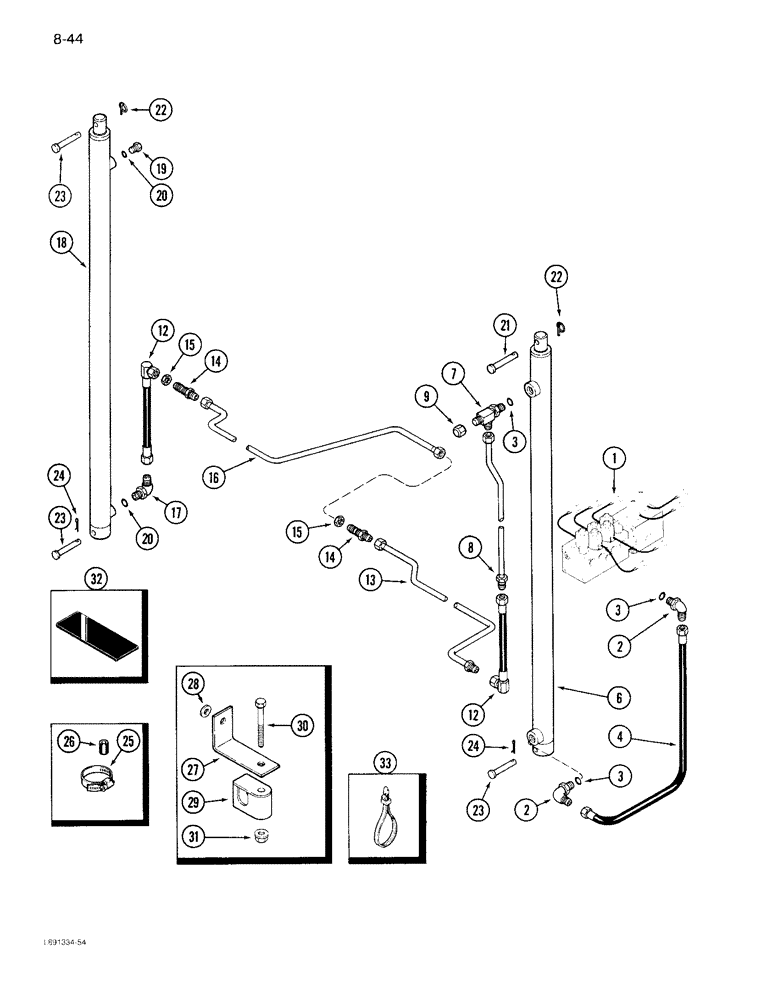

Запчасти Case IH 1822 (8-44) - BASKET LIFT CYLINDERS SYSTEM (07) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - manifold (See Page 8-31)

1шт.

2

9410979

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring

- 90 degree adjustable, 3/4 inch thread

2шт.

3

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 3/4 inch OD tube

3шт.

4

1282499C1

HYDRAULIC HOSE,15.88 mm ID x 812.80 mm

- Basket lift master cylinder 15.88 mm ID x 812.80 mm

1шт.

6

REF

INSTRUCTION

CYLINDER ASSEMBLY - basket lift master (See Page 8-51 and 8-53)

1шт.

7

159484C91

TEE,37 Degree, 7/8"-14, 1 1/16"-12 O-Ring Run, 7/8"-14

- tube

1шт.

8

1285701C3

TUBE

ASSEMBLY - master cylinder slave port

1шт.

9

9403373

CAP,37 Degree, 7/8"-14

- 5/8 OD tube, 7/8-14 inch thread

1шт.

12

1285372C2

HYDRAULIC HOSE,15.88 mm ID x 330.20 mm

- Basket lift slave cylinder 15.88 mm ID x 330.20 mm

2шт.

13

1285304C3

TUBE

ASSEMBLY - forward slave

1шт.

14

9403256

FITTING,Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

UNION - bulkhead, 5/8 inch

2шт.

15

9403295

BHD LOCK NUT,Blkhd, 7/8"-14

NUT - bulkhead union lock, 5/8 inch

2шт.

16

1285301C3

TUBE

ASSEMBLY - rear slave

1шт.

17

671942R1

ELBOW

- 90 degree adjustable, 5/8 to 1/2 inch thread

1шт.

18

REF

INSTRUCTION

CYLINDER ASSEMBLY - basket lift slave (See Page 8-47 and 8-49)

1шт.

19

9410359

PLUG

- 1/2 inch

1шт.

20

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 inch tube

2шт.

22

A30338

PIN

- click

2шт.

23

1288771C1

HEADED PIN

- cylinder pivot

4шт.

24

132-349

COTTER PIN,1/4" x 1 1/2"

PIN, Split (Cotter), 1/4" x 1-1/2"

2шт.

25

422688R91

HOSE CLAMP,#72, 4.06/5.00 Type F Worm

CLAMP - hose retaining

1шт.

26

163492C1

RUBBER INSULATOR

STRIP - tube, clamp, 5/8 inch

1шт.

27

288201C1

SUPPORT

BRACKET - tube support

1шт.

28

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch

1шт.

29

183822C1

CLAMP

- tube

2шт.

30

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

2шт.

31

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex flange, 1/4 inch

2шт.

32

1338839C1

BAND

PAD - hose

1шт.

33

306132C1

CABLE TIE,14.5" L

STRAP - tie, 14 inch long

3шт.
