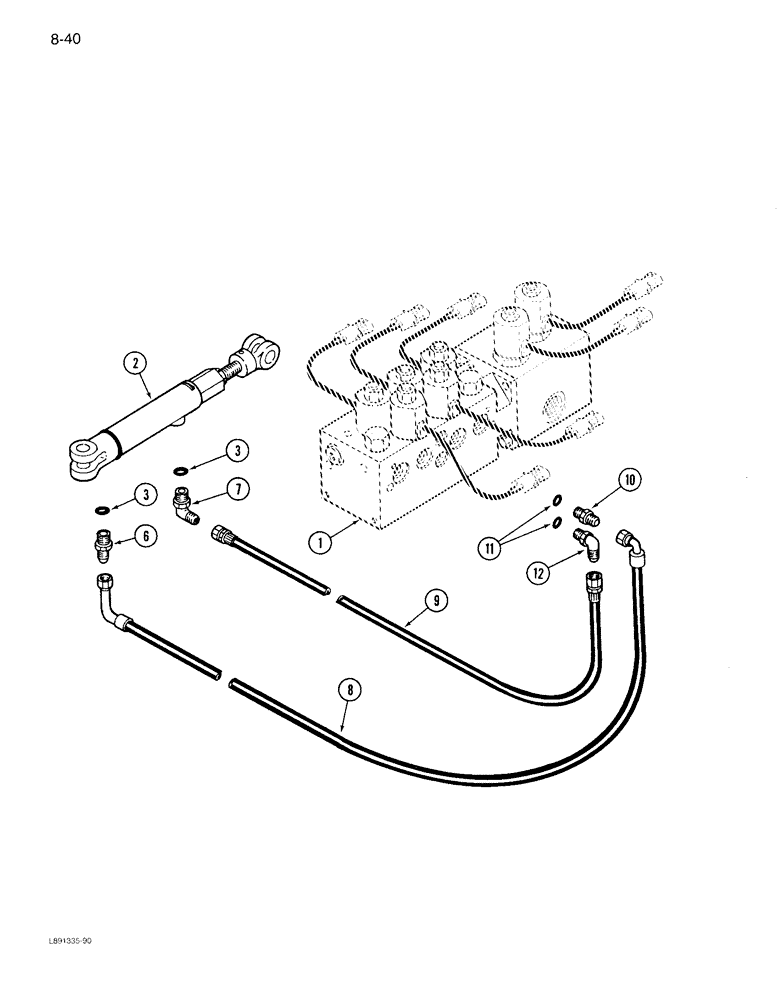

Запчасти Case IH 1822 (8-40) - FAN CLUTCH CYLINDER SYSTEM (07) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - manifold (See Page 8-31)

1шт.

2

REF

INSTRUCTION

CYLINDER ASSEMBLY - fan clutch (See Page 8-43)

1шт.

6

157519C1

HYD CONNECTOR,7/16"-20, 37 Degree x 9/16"-18, O-Ring

CONNECTOR - 3/8 to 1/4 inch

1шт.

7

156264C91

ELBOW,90º, 7/16"-20, 37º x 9/16"-18, O-Ring

- 90 degree 3/8 to 1/4 inch thread

1шт.

8

1282493C1

HOSE

- fan clutch cylinder engage

1шт.

9

1282494C1

HOSE

- fan clutch cylinder disengage

1шт.

10

9410200

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

CONNECTOR - short swivel, 1/4 inch

1шт.

11

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube

2шт.

12

9410974

ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, O-Ring

- 90 degree adjustable, 1/4 inch thread

1шт.

3

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

2шт.
