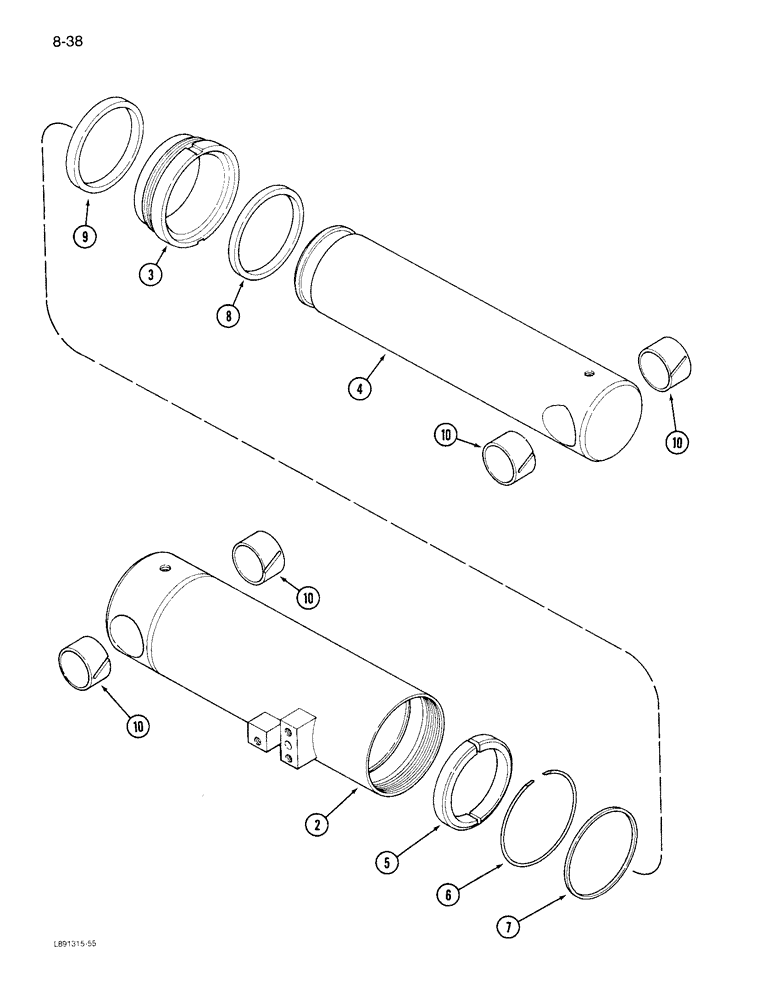

Запчасти Case IH 1822 (8-38) - DRUM LIFT CYLINDER (07) - HYDRAULICS

93270C91

CYLINDER ASSY.

CYLINDER ASSEMBLY - drum lift

1шт.

2

NSS

NOT SOLD SEPARAT

BODY ASSEMBLY - cylinder (Order 93270C91)

1шт.

3

1286343C1

JACK HEAD

HEAD - front

1шт.

4

1286339C1

STEM

ROD - piston

1шт.

5

93271C1

JACK PISTON

PISTON HALVES - cylinder (2 pieces)

1шт.

6

93275C1

JACK PISTON

RING - retaining

1шт.

7

1286342C1

WASHER

- U-cup backup

1шт.

1286344C91

SEAL KIT

KIT - o-ring and seal service

1шт.

8

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL - rod U-cup

1шт.

10

1288568C1

BUSHING,44.5mm ID x 47.65mm OD x 28mm L

- pivot

4шт.
