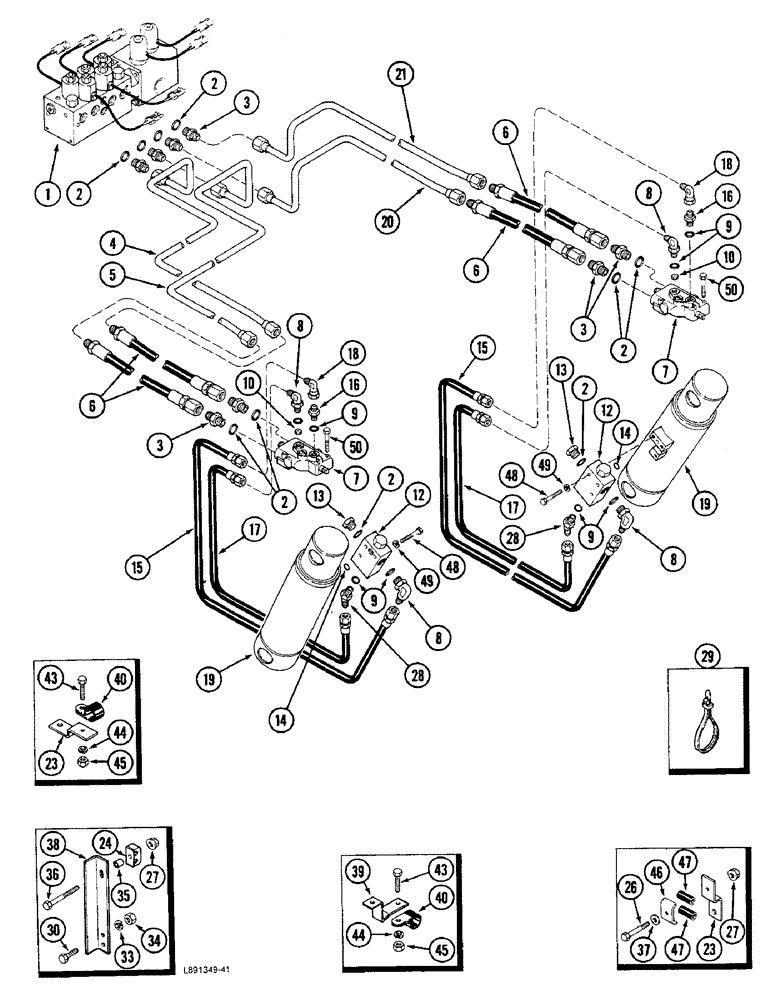

Запчасти Case IH 1822 (8-26) - DRUM CONTROL VALVES AND LIFT CYLINDER SYSTEM (07) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - manifold (See Page 8-31)

1шт.

2

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 inch OD tube

10шт.

3

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR - short swivel, 1/2 inch

8шт.

4

1285359C2

TUBE

ASSEMBLY - right drum manual supply

1шт.

5

1285358C2

TUBE

ASSEMBLY - right drum automatic supply

1шт.

6

1976898C1

HOSE ASSY.

HOSE - drum supply

4шт.

7

REF

INSTRUCTION

VALVE ASSEMBLY - drum height control (See Page 8-37)

2шт.

8

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree adjustable, 3/8 x 3/8 inch thread (replaces 935036R91)

4шт.

9

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

8шт.

10

1288998C3

PLATE

- orifice (measures .076) (1822 Cotton Picker)

2шт.

10

1288997C2

LARGE PLATE

PLATE - orifice (measures .067) (1844 Cotton Picker)

2шт.

12

REF

INSTRUCTION

VALVE ASSEMBLY - pilot operated check (See Page 8-29)

2шт.

13

9410359

PLUG

- 1/2 inch

2шт.

14

382997R1

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

- 1/2 x 5/8 inch

2шт.

15

1339409C1

HOSE ASSY.

HOSE - pilot valve pressure

2шт.

16

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR - short swivel, 3/8 inch

2шт.

17

1339408C1

HOSE ASSY.

HOSE - drum cylinder

2шт.

18

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

- 90 degree swivel, 3/8 inch thread

2шт.

19

REF

INSTRUCTION

CYLINDER ASSEMBLY - drum lift (See Page 8-39)

2шт.

20

1285360C1

TUBE

ASSEMBLY - left drum automatic supply

1шт.

21

1285361C1

TUBE

ASSEMBLY - left drum manual supply

1шт.

23

1288791C1

SUPPORT

BRACKET - clamp supply

2шт.

24

1301178C1

CLAMP

- tube

2шт.

26

113-5

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

Hex, 1/4"- 20 x 1 1/2", G5

4шт.

27

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex flange, 1/4 inch

6шт.

28

9411104

ELBOW,45 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

- 45 degree adjustable, 1/2 OD tube 3/4-16 inch thread

2шт.

29

306132C1

CABLE TIE,14.5" L

STRAP - tie 14 in

1шт.

30

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

33

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

34

120377

NUT,3/8" - 16, Gr 5

4шт.

35

354260R1

SPACER,1/8" Pipe x 7/16"

- clamp

2шт.

36

113-316

BOLT,Hex, 7/16" - 14 x 7/8", Gr 5, Full Thd

- hex, 1/4 NC x 2 inch

2шт.

37

25707R1

WASHER,.281" x 5/8" x .075", HDN

- flat, 17/64 x 41/64 x 5/64 inch

8шт.

38

87686C1

BRACKET

- drum supply tubes

2шт.

39

1288818C1

SUPPORT

BRACKET - tube support

1шт.

40

299608C1

CLAMP,1 1/4", Insul, 1/2" Bolt

- hose

2шт.

43

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

- hex, 1/4 NC x 3/4 inch

2шт.

44

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

45

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

46

165601C1

CLAMP

- tube

4шт.

47

163491C1

RUBBER INSULATOR

STRIP - tube clamp

8шт.

48

25980R1

BOLT

- hex, 5/16 NC x 1-7/8 inch

6шт.

49

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

50

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

4шт.
