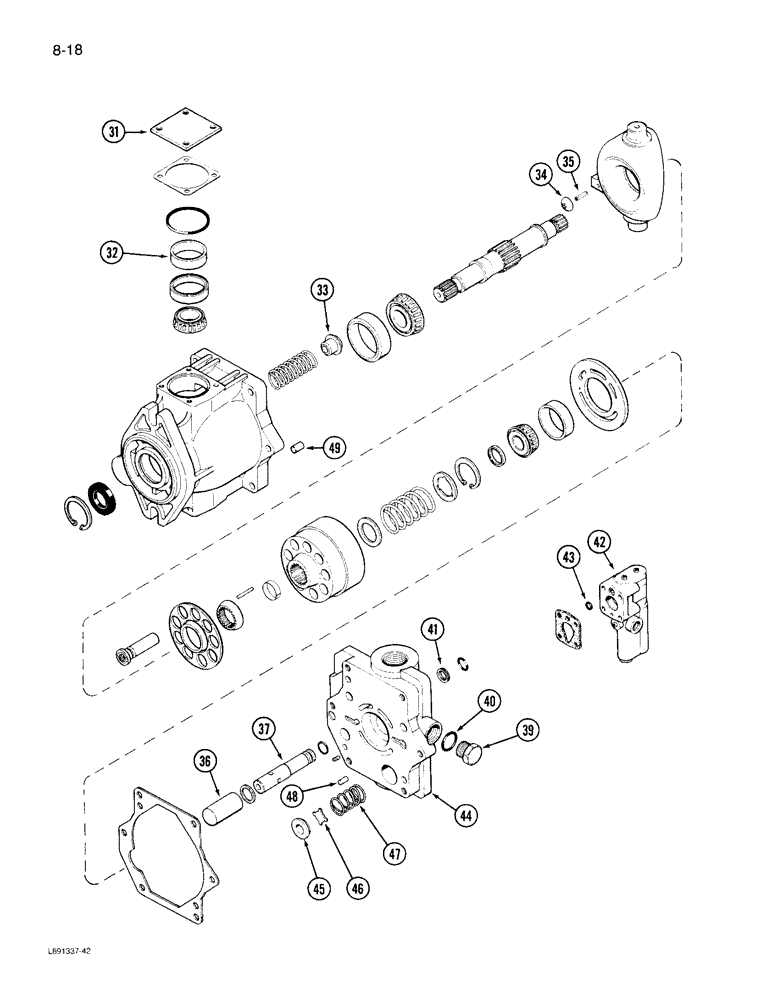

Запчасти Case IH 1822 (8-18) - HYDRAULIC PUMP (07) - HYDRAULICS

REF

INSTRUCTION

PUMP ASSEMBLY - hydraulic (Continued)

1шт.

31

NSS

NOT SOLD SEPARAT

COVER - housing

2шт.

32

NSS

NOT SOLD SEPARAT

SPACER - bearing

2шт.

33

NSS

NOT SOLD SEPARAT

SEAT - yoke spring

1шт.

34

NSS

NOT SOLD SEPARAT

SEAT - spherical

1шт.

35

NSS

NOT SOLD SEPARAT

PIN - roll, 3/16 x 1/2 inch

1шт.

36

NSS

NOT SOLD SEPARAT

PISTON - pump

1шт.

37

NSS

NOT SOLD SEPARAT

ROD - piston

1шт.

39

NSS

NOT SOLD SEPARAT

PLUG - valve port (Order 1288976C91)

1шт.

40

NSS

NOT SOLD SEPARAT

O-RING - valve port plug

1шт.

Part of O-Ring seal and gasket kit P/N 1263244C2

1шт.

41

NSS

NOT SOLD SEPARAT

RING - retainer

1шт.

42

NSS

NOT SOLD SEPARAT

COMPENSATOR ASSEMBLY - pump (See Page 8-21)

1шт.

43

NSS

NOT SOLD SEPARAT

O-RING - compensator

1шт.

Part of O-Ring seal and gasket kit P/N 1263244C2

1шт.

44

NSS

NOT SOLD SEPARAT

VALVE BLOCK - pump

1шт.

45

NSS

NOT SOLD SEPARAT

SEAT - spring

1шт.

46

NSS

NOT SOLD SEPARAT

VALVE - check

1шт.

47

NSS

NOT SOLD SEPARAT

SPRING - valve block

1шт.

48

NSS

NOT SOLD SEPARAT

PIN - headless, 1/4 x 1/2 inch

1шт.

49

NSS

NOT SOLD SEPARAT

PIN - housing to valve body

2шт.

1263244C2

PACKAGE

KIT - o-ring, seal and gasket, Includes: Ref. 40 and 43 (Also see Pages 8-17 and 8-21)

1шт.
