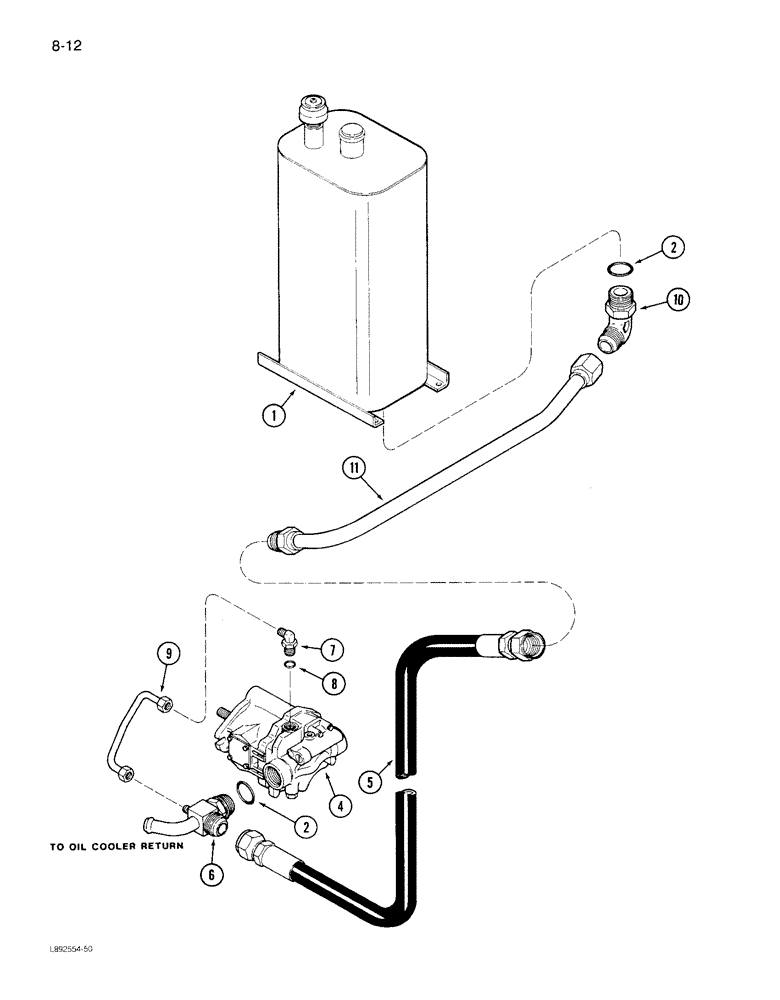

Запчасти Case IH 1822 (8-12) - RESERVOIR TO HYDRAULIC PUMP SYSTEM, 1822 COTTON PICKER (07) - HYDRAULICS

1

REF

INSTRUCTION

RESERVOIR ASSEMBLY - hydraulic (See Page 8-3)

1шт.

2

237-6024

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

24-1, 90 Duro, 1.72" ID x .118" Thk

2шт.

4

REF

INSTRUCTION

PUMP ASSEMBLY - hydraulic (See Page 8-17)

1шт.

5

1285365C1

HYDRAULIC HOSE,38.10 mm ID x 1905.00 mm

1285365C1 - Pump supply

1шт.

6

1971747C1

FITTING

- pump inlet cross

1шт.

7

671796R1

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

- 90 degree adjustable, 5/8 to 3/8 inch

1шт.

8

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

9

1285441C3

TUBE,0.375" OD, 164.9,50.8 mm Length

ASSEMBLY - case drain

1шт.

10

9410983

ELBOW,90 Degree, 1 7/8"-12, 37 Degree x 1 7/8"-12, O-Ring

- 90 degree adjustable, 1-1/2 OD tube 1-7/8-12 inch thread

1шт.

11

1285472C2

HYD TUBE

TUBE ASSEMBLY - pump supply

1шт.
