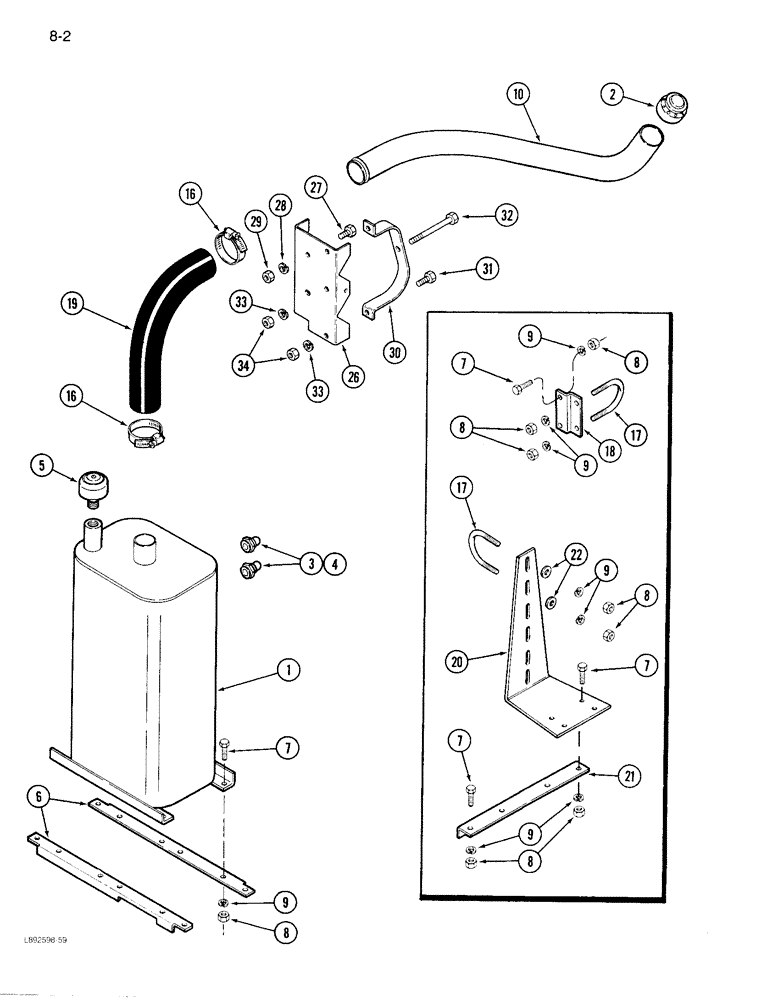

Запчасти Case IH 1822 (8-02) - HYDRAULIC RESERVOIR, 1822 COTTON PICKER (07) - HYDRAULICS

1272252C93

TANK, HYDRAULIC OIL

RESERVOIR ASSEMBLY - huydraulic oil

1шт.

1

NSS

NOT SOLD SEPARAT

RESERVOIR - oil (Order 1272252C93)

1шт.

2

1272941C1

CAP

- breather

1шт.

3

244600R92

SIGHTGLASS

GLASS ASSEMBLY - sight

2шт.

4

238-5114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

2шт.

5

923745C91

BREATHER ASSY.

BREATHER ASSEMBLY - reservoir

1шт.

6

1288807C2

ANGLE BAR

ANGLE - reservoir support

2шт.

7

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

10шт.

8

425-106

NUT,3/8"-16, Cl 5

14шт.

9

492-11038

LOCK WASHER,3/8"

14шт.

10

1329200C1

HYD TUBE

TUBE ASSEMBLY - reservoir filler

1шт.

16

27392R1

HOSE CLAMP,#48, 2.56/3.50 Type F Worm, W/liner

CLAMP - hose, No. 48 shoe, Type F

2шт.

17

814881C1

BOLT,3/8" - 16 x 3 1/2"

U-BOLT - clamp (If equipped)

2шт.

18

87188C1

ANGLE

- fill tube clamp (If equipped)

1шт.

19

1329201C1

FITTING

ELBOW - reservoir filler tube

1шт.

20

1982201C1

ANGLE

SUPPORT - filler tube (If equipped)

1шт.

21

1329488C1

ANGLE

- upper filler tube support (If equipped)

1шт.

22

614452R1

WASHER

- flat, 13/32 x 1-1/4 x 3/32 inch

1шт.

26

1345163C2

SUPPORT

BRACKET - fill tube

1шт.

27

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

28

492-11038

LOCK WASHER,3/8"

2шт.

29

425-106

NUT,3/8"-16, Cl 5

2шт.

30

1345166C1

CLAMP

- fill tube

1шт.

31

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

32

413-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

- hex, 3/8 NC x 4 inch

1шт.

33

492-11038

LOCK WASHER,3/8"

3шт.

34

425-106

NUT,3/8"-16, Cl 5

3шт.
