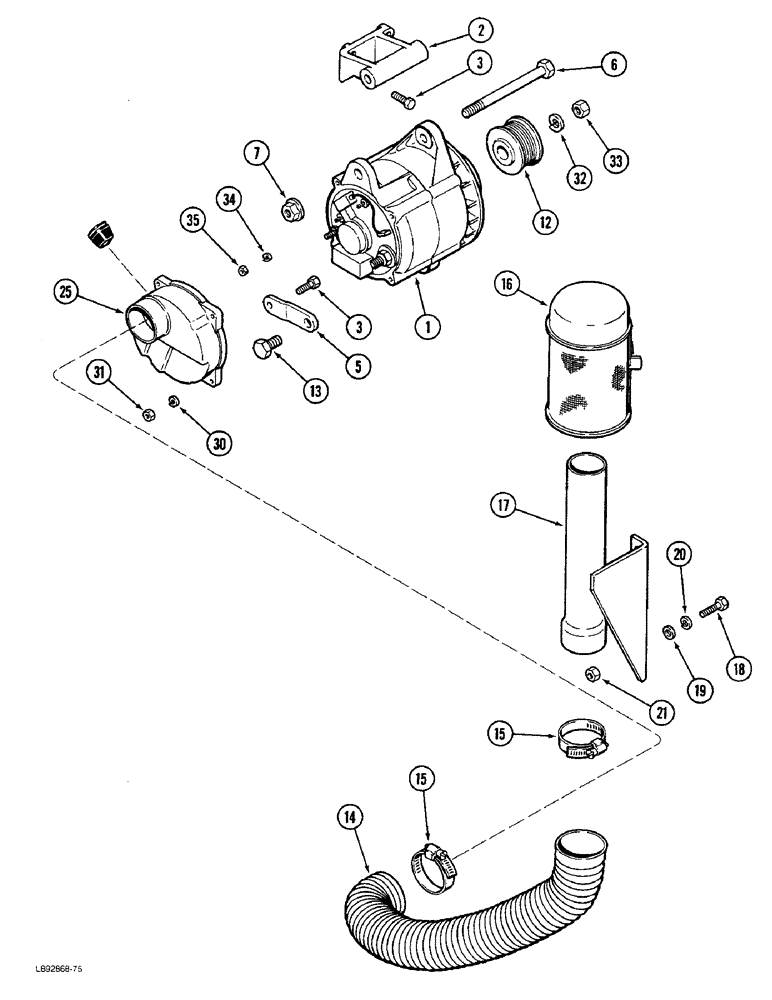

Запчасти Case IH 1822 (4-42) - ALTERNATOR MOUNTING AND FILTER, 1822 COTTON PICKER (06) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

ALTERNATOR ASSEMBLY - engine, 110 ampere (See Page 4-51)

1шт.

2

J910923

BRACE

SUPPORT - mounting, alternator

1шт.

3

814-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, 8 mm - 1/25 x 25 mm

4шт.

5

J903104

PLATE

BRACE - alternator mounting (Replaces J910924)

1шт.

6

J903105

FLANGE BOLT,Hex, M12 x 1.75 x 150mm, Cl 8.8

BOLT - hex flange, 12 x 150 mm

1шт.

7

829-2312

FLANGE NUT,M12 x 1.75, Flg, Cl 10

- hex flange, 12 mm - 1.75, class 10

1шт.

12

A189616

PULLEY

- alternator (Replaces J902099)

1шт.

13

121-426

BOLT,Hex Flg, 1/2"-13 x 1 1/4", G8, Full Thd

1шт.

14

NSS

NOT SOLD SEPARAT

HOSE - air supply, 20 inch (Order 1338157C1 and, Serial Range: cut-length)

1шт.

1338157C1

INTAKE AIR HOSE,63.50 mm ID x 304.80 mm

63.50 mm ID x 304.80 mm

1шт.

15

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - adjustable, 2-15/16 - 3-1/4 inch diameter

2шт.

16

353411R92

FILTER ASSY

FILTER ASSEMBLY - air, alternator

1шт.

17

1338707C1

SUPPORT

BRACKET - alternator filter

1шт.

18

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch

2шт.

19

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch

2шт.

20

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

21

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

25

1338890C1

COVER

- end cover, alternator

1шт.

26

1964826C1

GROMMET

- alternator

1шт.

30

495-31025

WASHER,3/16"

- flat, 1/4 x 9/16 x 1/16 inch

4шт.

31

825-1105

NUT,M5, Cl 8

- hex, 5 mm, Grade 8

4шт.

32

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

33

129-144

NUT,Jam, 7/16"-14, G5

- hex jam, 7/16 inch NC

1шт.

34

892-1104

LOCK WASHER,M4

WASHER - lock, 4 mm

1шт.

35

825-1104

NUT,M4, Cl 8

- hex, 4 mm, Grade 8

1шт.
