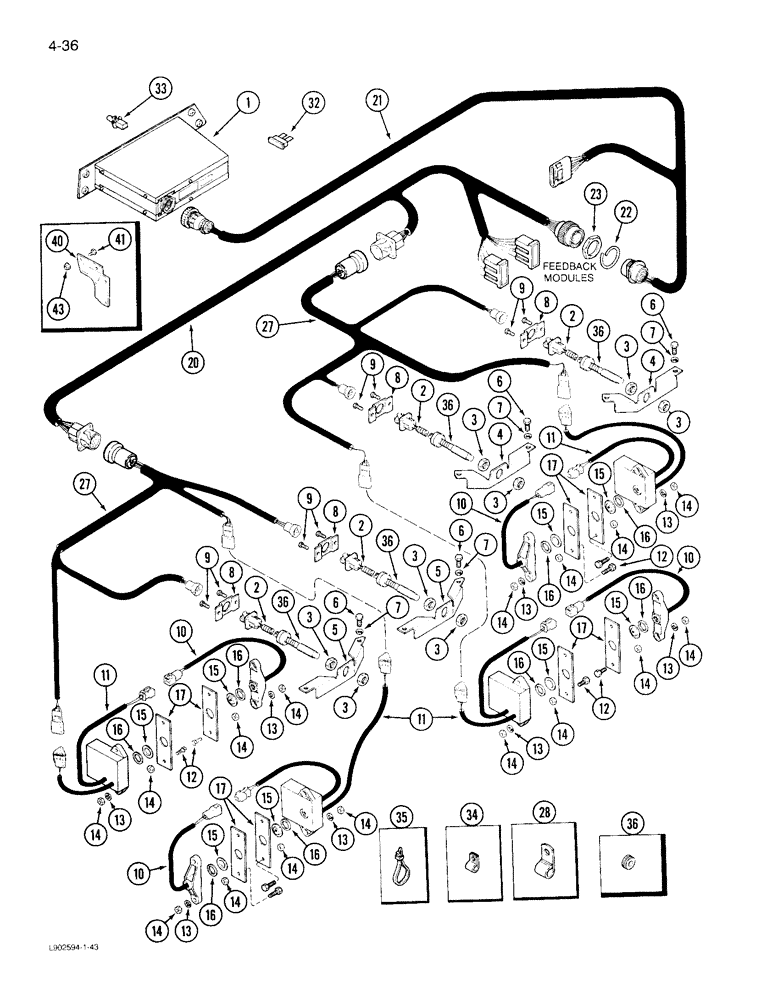

Запчасти Case IH 1822 (4-36) - SYSTEM MONITOR, 1822 COTTON PICKER (06) - ELECTRICAL SYSTEMS

1

91778C91

REMAN-ELECT GAUGE

GAUGE - monitor system, remanufactured (North America only)

1шт.

1

1935089C1

CORE

GAUGE CORE - monitor (Use this number when returning monitor core for credit)

1шт.

2

1338876C1

SENDER UNIT

TRANSDUCER ASSEMBLY - rotor speed

4шт.

3

219758

JAM NUT,Jam, 3/4"-10, G5

- hex jam, 3/4 inch NF

8шт.

4

87180C1

BRACKET

- transducer, left

2шт.

5

87181C1

BRACKET

- transducer, right

2шт.

6

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

8шт.

7

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

8

91795C1

SUPPORT

BRACKET - transducer mounting

4шт.

9

281-14512

SELF-TAP SCREW,Hex Wash Hd, #10 x 3/4"

SCREW, SELF TAPPING, Hex Wash Hd, #10 x 3/4"

8шт.

10

245872C2

CONTROL

EMMITER - control (Prior to P.I.N. JJC0012910)

1шт.

10

1983619C1

SENSOR

CONTROL - emmiter, choke (P.I.N. JJC0012910 and after)

4шт.

11

245873C2

CONTROL

DETECTOR - control (Prior to P.I.N. JJC0012910)

4шт.

11

1987357C1

SENSOR

CONTROL - detector, choke (P.I.N. JJC0012910 and after)

4шт.

12

1338692C1

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 1"

BOLT - hex, cover monitor plate

16шт.

13

495-11025

WASHER,0.25" ID x 0.5" OD x 0.05" Thk

- flat, 1/4 x 1/2 x 3/64 inch

16шт.

14

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

32шт.

15

1339056C1

CAP

- monitor lens

8шт.

16

1338700C1

GASKET

- lens cap

8шт.

17

87048C3

LARGE PLATE

PLATE - cover monitor

8шт.

20

91771C2

HARNESS

- monitor (Chassis) (Prior to P.I.N. JJC0012910)

1шт.

20

1983572C1

HARNESS

- monitor (Chassis) (P.I.N. JJC0012910 and after)

1шт.

21

245830C2

HARNESS

- monitor (Cab) (Prior to P.I.N. JJC0012910)

1шт.

21

1983537C1

HARNESS

- monitor (Cab) (P.I.N. JJC0012910 and after)

1шт.

22

490691C1

LOCK WASHER,#18 Shell

- lock, 1-3/16 inch (Prior to P.I.N. JJC0012910)

3шт.

22

459330C1

LOCK WASHER

WASHER - lock, 1-11/16 inch (P.I.N. JJC0012910 and after)

3шт.

23

490692C1

LOCK NUT,#18 Shell

- hex, 1-1/2 inch (Prior to P.I.N. JJC0012910)

3шт.

23

459329C1

NUT

- hex, 1-11/16 inch UNEF (P.I.N. JJC0012910 and after)

3шт.

27

91769C2

HARNESS

- drum (Prior to P.I.N. JJC0012910)

2шт.

27

1983556C1

HARNESS

- drum (P.I.N. JJC0012910 and after)

2шт.

28

371036R1

CLIP

- cable, 11/32 inch diameter hole

8шт.

28

362123R1

CLIP

- cable retaining, 15/32 inch diameter hole

14шт.

32

A149796

FUSE

- monitor, 3 ampere (Violet)

1шт.

33

28628R1

BULB,C2F, #73, 14V

- monitor (No. 73)

11шт.

34

A62209

CLAMP,5/16", Insul, 1/4" Bolt

CLIP - harness (Chassis)

2шт.

35

289862C1

CABLE TIE,3/16" x 7"

STRAP - tie (Monitor harness)

6шт.

36

87391C1

GROMMET

- transducer cables

2шт.

40

1338088C1

SHIELD

- monitor eye, left

3шт.

40

1338089C1

SHIELD

- monitor eye, right (Shown)

3шт.

41

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

BOLT - truss head, 1/4 NC x 1/2 inch

24шт.

43

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex flange lock, 1/4 inch NC

24шт.

370-10412

SCREW,Sl Pan Hd, #4 - 40 x 3/4"

- pan head slotted, No. 4-40 x 3/4 inch

8шт.

492-11004

LOCK WASHER,#4

Washer, Lock, #4

8шт.

225-14104

NUT,#4-40

8шт.
