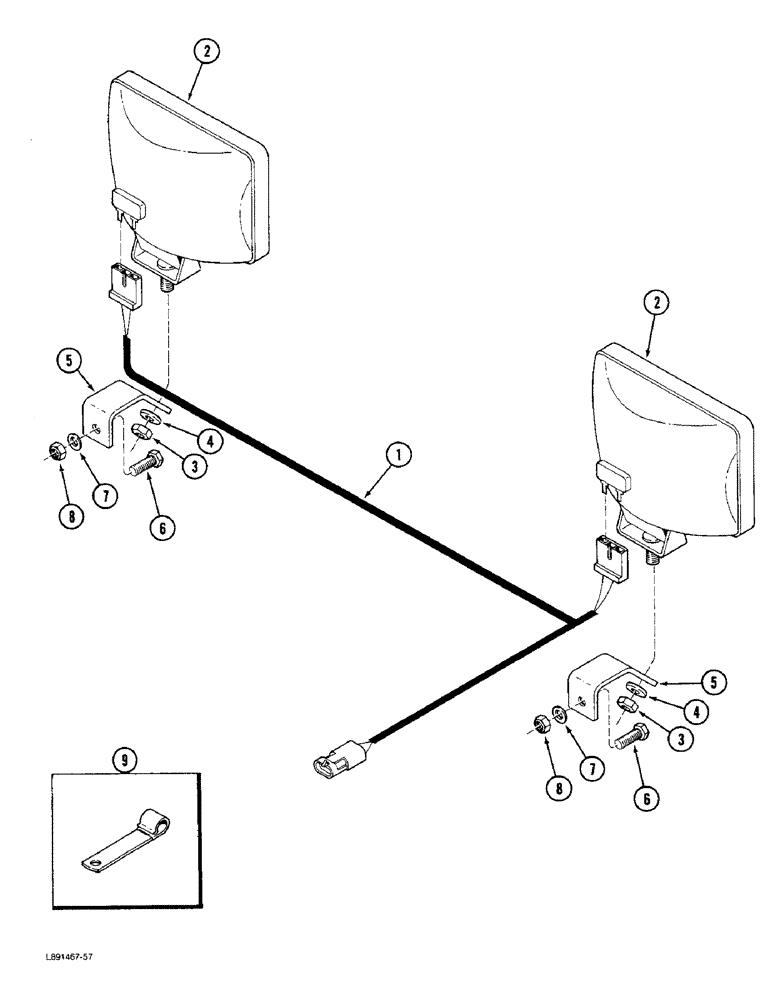

Запчасти Case IH 1822 (4-20) - BASKET LAMPS AND HARNESS (06) - ELECTRICAL SYSTEMS

1

92068C1

CABLE

HARNESS ASSEMBLY - basket lamps

1шт.

2

245897C91

LAMP, WORK

LAMP ASSEMBLY - basket (Halogen flood)

2шт.

3

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

4

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

5

561915R1

BRACKET

- lamp mounting

2шт.

6

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

3шт.

6

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

7

492-11038

LOCK WASHER,3/8"

2шт.

8

425-106

NUT,3/8"-16, Cl 5

2шт.

9

362126R1

CLIP

- basket light harness

6шт.
